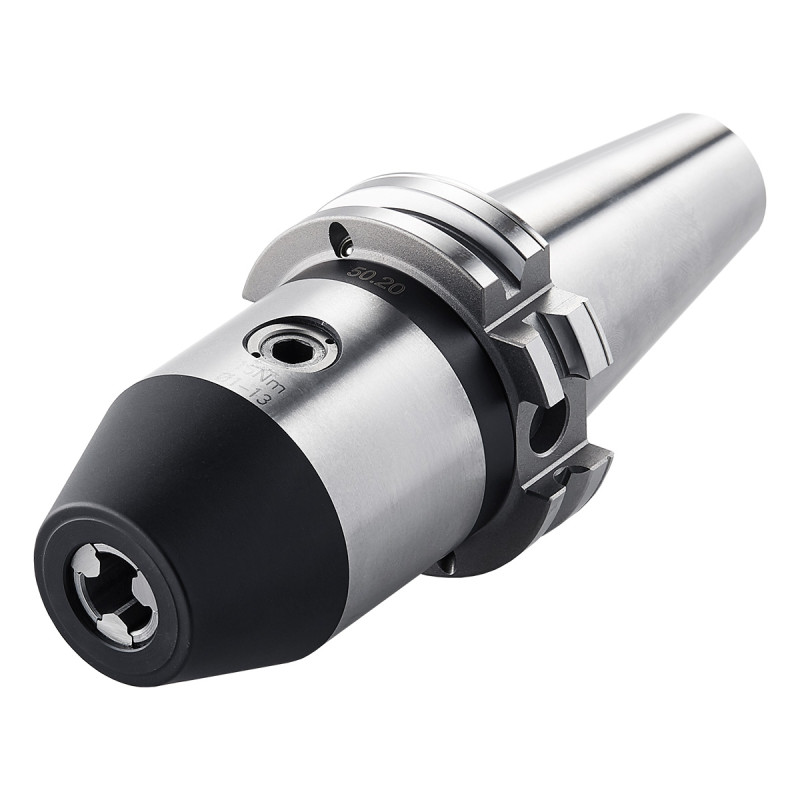

CNC drill chuck SK 40 - 1/13 - 90 DC.403.15.13

Name: CNC drill chuck SK 40 - 1/13 - 90 DC.403.15.13
Brand: Kemmler GmbH
SKU: DC.403.15.13
Availability: OutOfStock

Brand: Kemmler GmbH Product Code: 160651

All about product

Description

Specification

Reviews 0

Questions0

CNC drill chuck SK 40 - 1/13 - 90 DC.403.15.13

Нет в наличии

0.0 грн.

ADINTMS:DUAL CONTACT ~ISO 7388-1

ADINTWS:CNC drill chuck

Balancing quality:G6.3 | 15,000 rpm

BD1:31

BD2:50

Delivery

Payment

CNC drill chuck SK 40 - 1/13 - 90 DC.403.15.13

0.0 грн.

Description

~ ISO 7388-1 AD/AF [DIN 69871 AD/B] | DC

DUAL CONTACT | with face contact

Application:
For mounting tools with straight shanks.

All holders are made of forged steel
Specific, low warpage hardened
Surface hardened HRC 58~60
Hardening depth 0.8mm~0.9mm
Taper angle tolerance < AT 3 according to DIN 2080
Surface roughness Ra < 0.4 µm
Tensile strength in the core of min. 800 N/mm² according to DIN
All functional surfaces finely machined

Specifications

Характеристики

ADINTMS

DUAL CONTACT ~ISO 7388-1

ADINTWS

CNC drill chuck

Balancing quality

G6.3 | 15,000 rpm

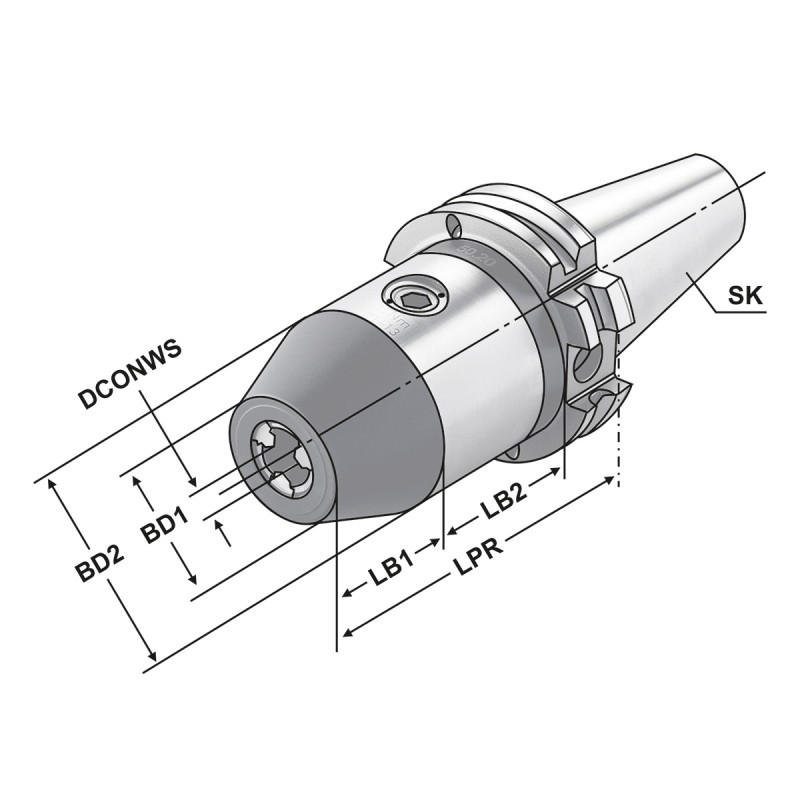

BD1

BD2

CNSC

AD/AF (AD/B)

DCONWS

1.0 - 13

DCP

Yes

DCPS

D10/H4.5

DRVS

LB1

26.2

LB2

44.8

LPR

Runout

SK-DC 40

Weight

1.6 kg
