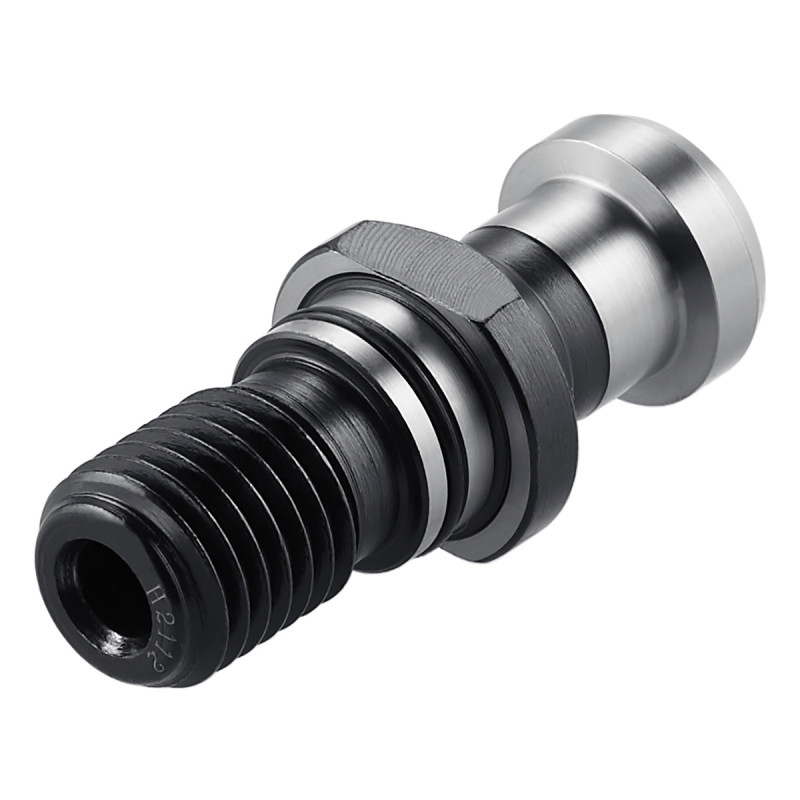

Pull studs ISO 7388-3 | Form AD | M16 | with drill through | including O-ring

Name: Pull studs ISO 7388-3 | Form AD | M16 | with drill through | including O-ring
Brand: Kemmler GmbH
SKU: 402.20.16.0
Availability: OutOfStock

Brand: Kemmler GmbH Product Code: 159813

All about product

Description

Specification

Reviews 0

Questions0

Pull studs ISO 7388-3 | Form AD | M16 | with drill through | including O-ring

Нет в наличии

0.0 грн.

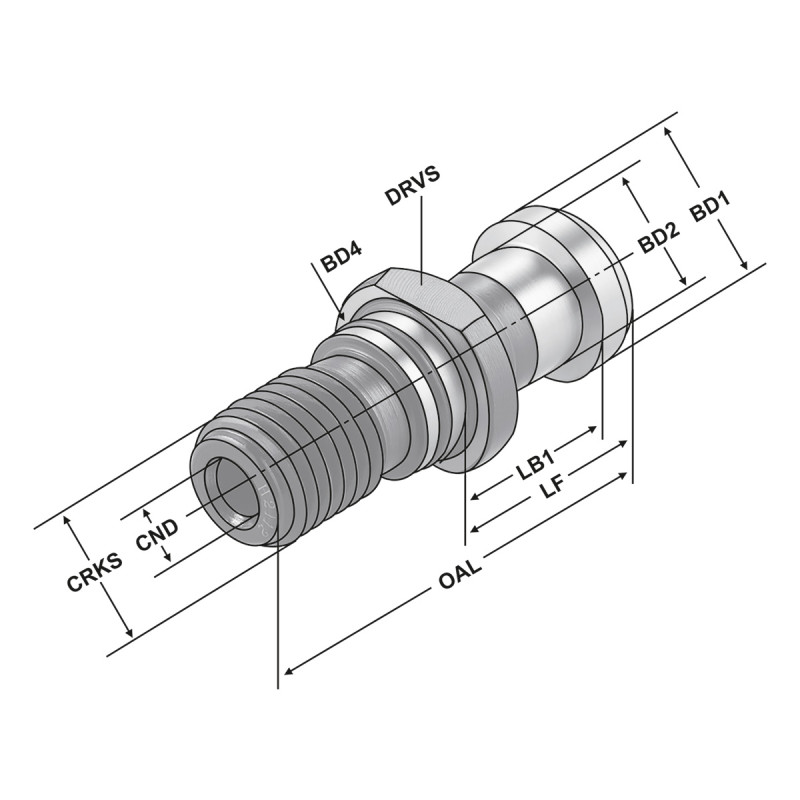

BD1:19

BD2:14

BD4:17

BHTA:15°

CND:7.0

Delivery

Payment

Pull studs ISO 7388-3 | Form AD | M16 | with drill through | including O-ring

0.0 грн.

Description

formerly DIN 69872 A

Application:

For tools with taper shanks DIN 69871 and JIS B 6339 (MAS-BT)
In machining centers (machines with automatic tool changers)
In NC machines (machines without automatic tool changers)

Specifications

Характеристики

BD1

BD2

BD4

BHTA

15°

CND

7.0

Cone size

CRKS

M16

DRVS

LB1

OAL

Shank shape

Standard

ISO 7388-3

TQX

50 Nm

Weight

0.08 kg
