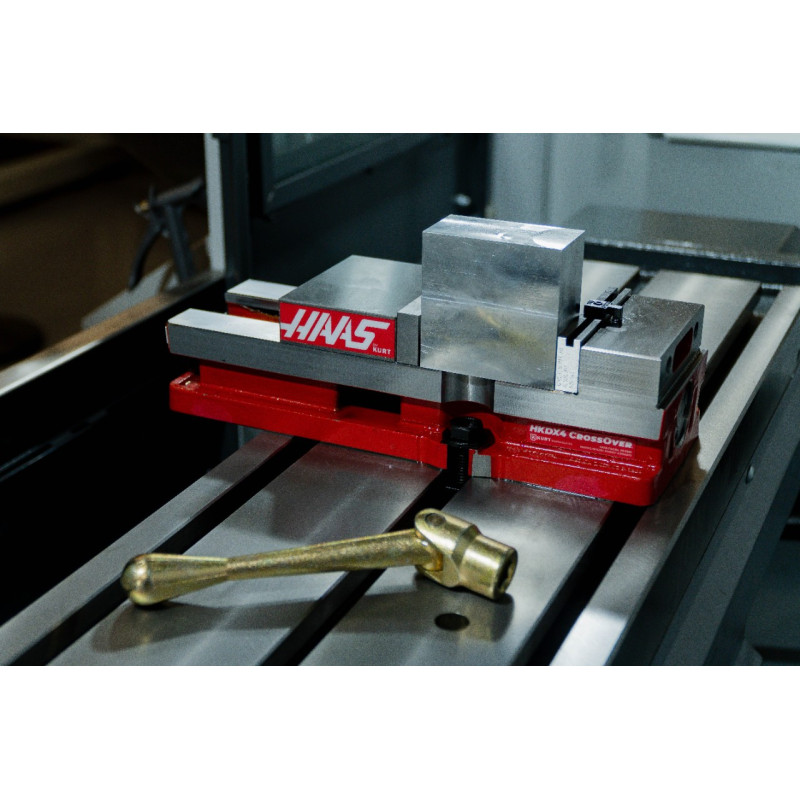

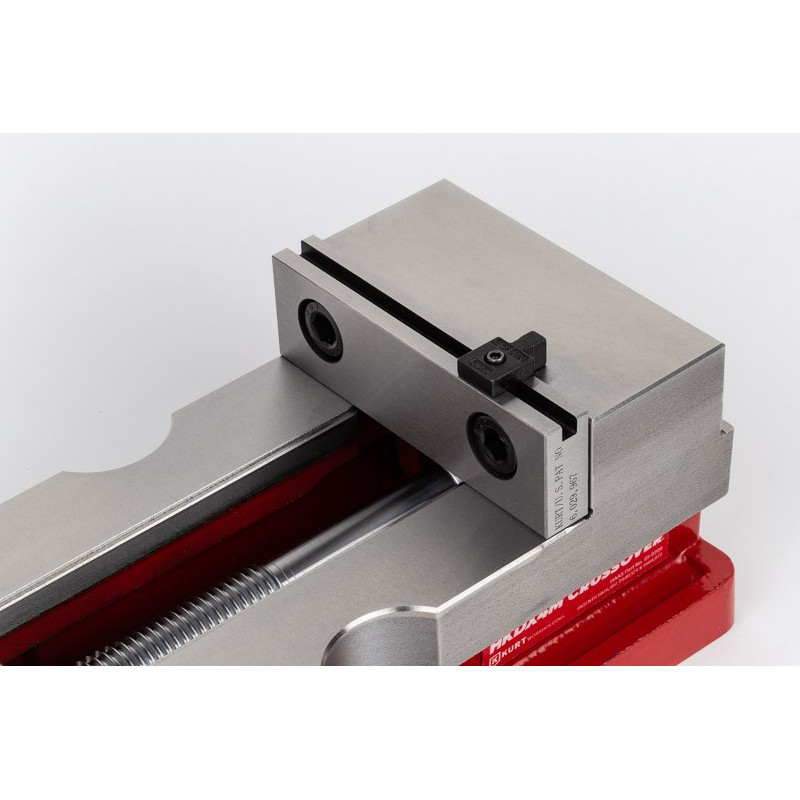

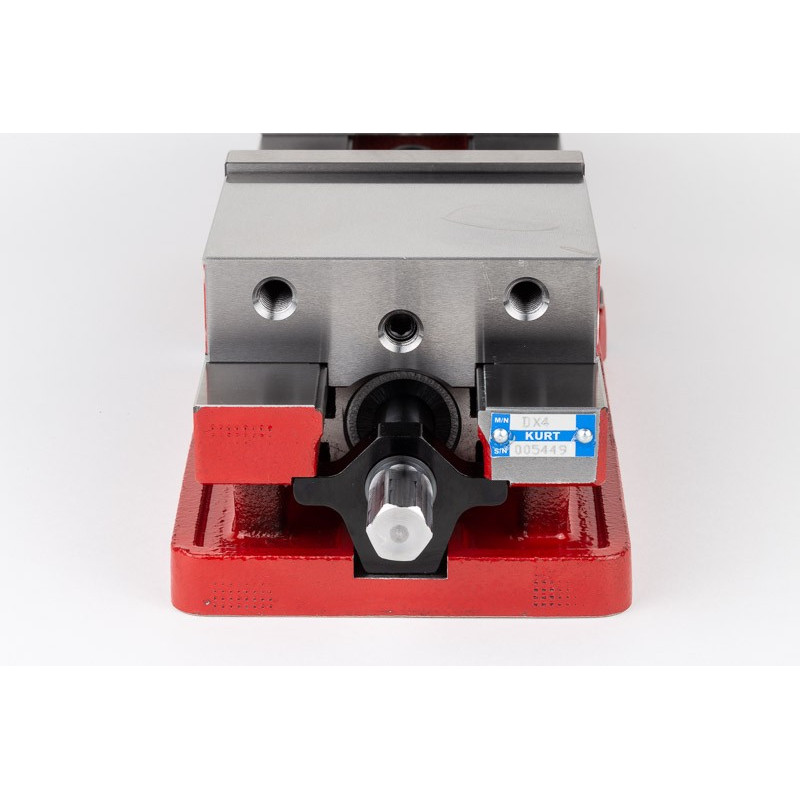

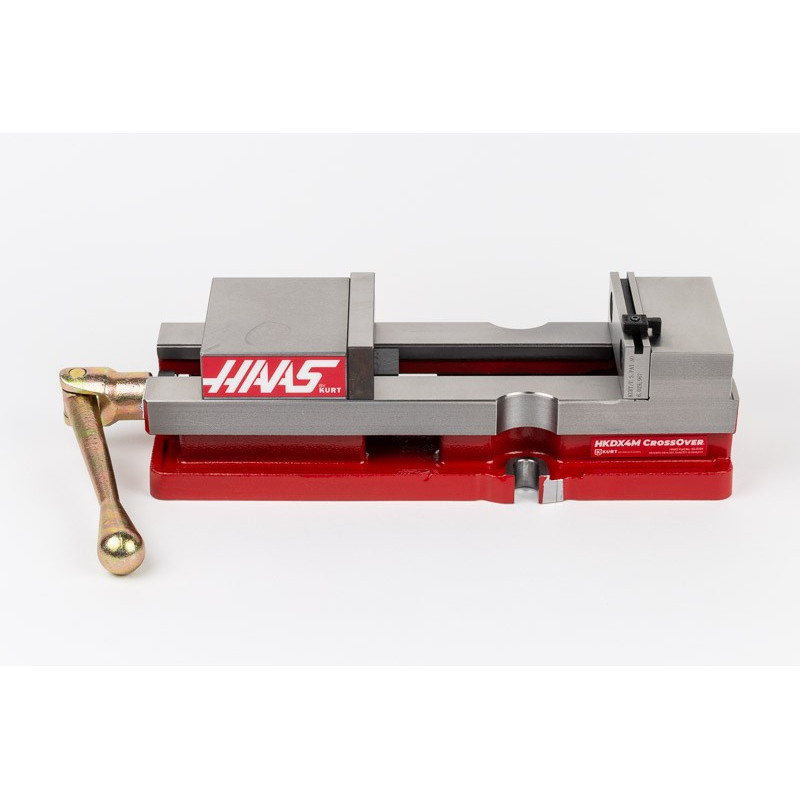

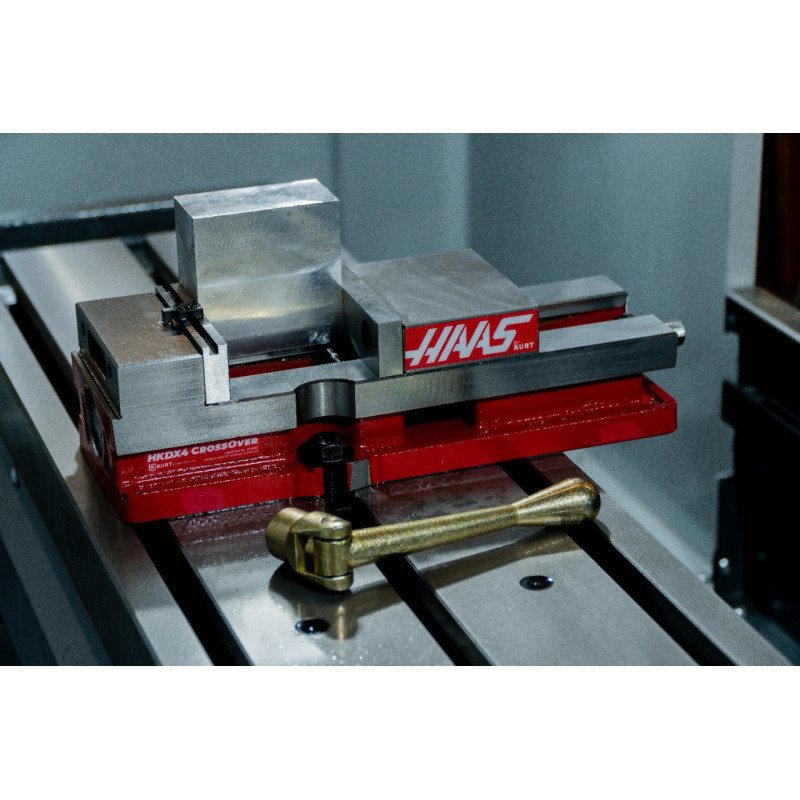

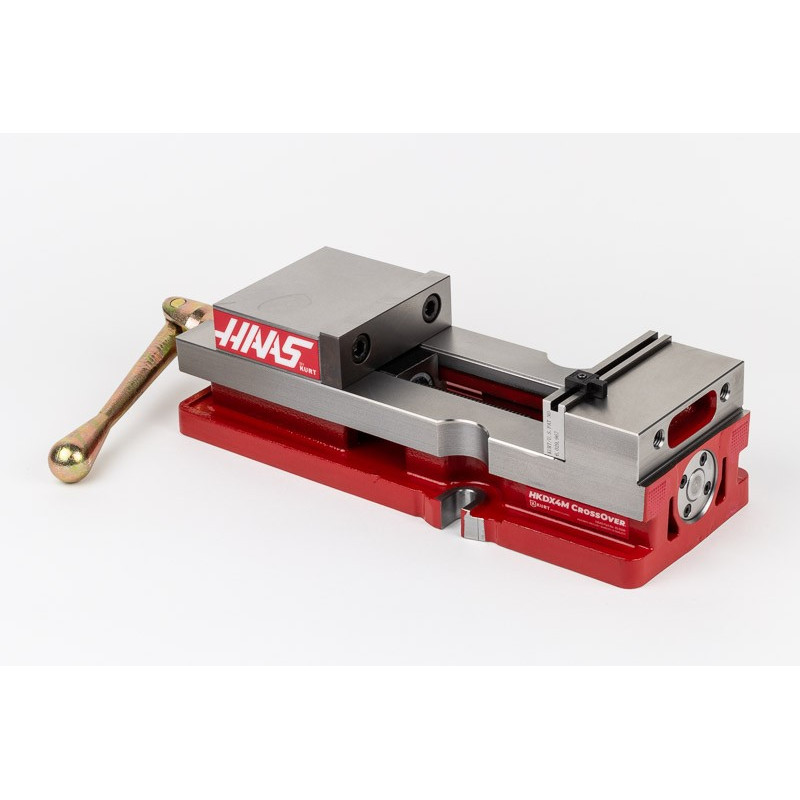

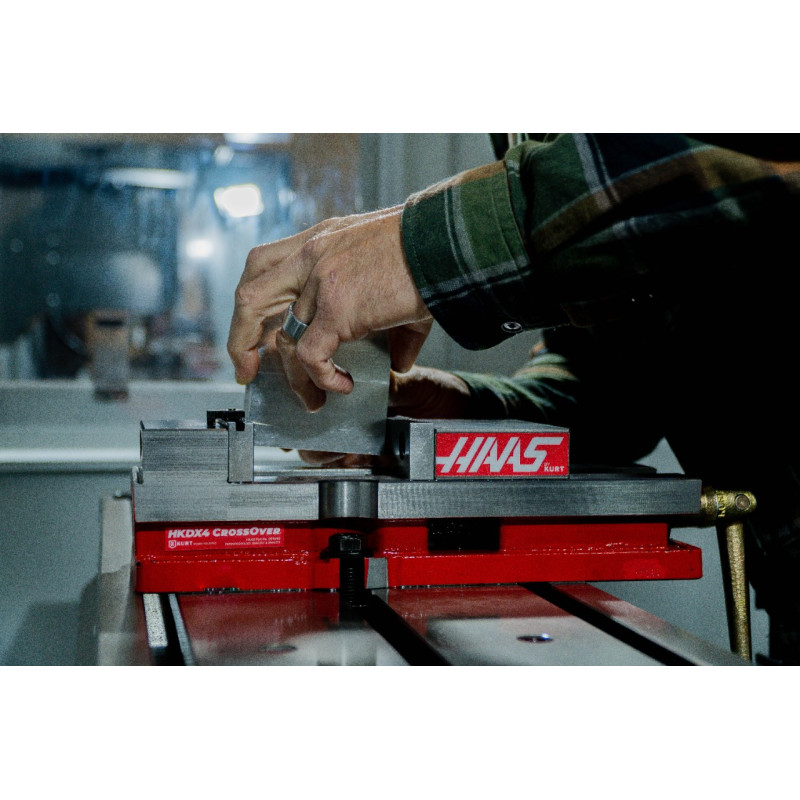

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

Производитель: HAAS Модель: 5093

0

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

Нет в наличии

0.0 грн.

Country of Origin:USA

Number of Stations:1

Vise Holding Type:Fixed Jaw

Vise Type:Manual

Weight:30.0 lbs \ 13.6 kg

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

100mm (4") Single-Station Fixed-Jaw Vise, 165mm (6-1/2") Opening, Flange Style, Haas Workholding by Kurt

0.0 грн.

Описание

Характеристики

Характеристики

Country of Origin

USA

Number of Stations

1

Vise Holding Type

Fixed Jaw

Vise Type

Manual

Weight

30.0 lbs \ 13.6 kg

[a] Dimension

0.52 in \ 13.21 mm

[BH] Body Height

2.25 in \ 57.15 mm

[BL] Body Length

12.5 in \ 317.5 mm

[BT] Base Thickness

0.65 in \ 16.51 mm

[b] Dimension

4.0 in \ 101.6 mm

[H] Height of Screw Hole

0.687 in \ 17.45 mm

[J1] Inner Jaw Range

0.0-6.5 in \ 0.0-165.1 mm

[J3] Outer Jaw Range

5.93-12.43 in \ 150.6-315.7 mm

[JH] Jaw Height

1.235 in \ 31.37 mm

[JW] Jaw Width

4.0 in \ 100.0 mm

[OAH] Overall Height

3.485 in \ 88.52 mm

[OAL] Overall Length

13.735 in \ 348.87 mm

[OAW] Overall Width

4.962 in \ 126.03 mm

[S] Screw Spacing

2.5 in \ 63.5 mm

[TP] Thread pitch

M10x1.5

[VO] Vise Opening

6.5 in \ 165.0 mm

[W] Wrench Size

14.0 mm
