150mm (6") Single-Station Fixed Jaw Vise, 225mm (9") Opening, Flange Style, Haas Workholding by Kurt

Производитель: HAAS Модель: 5097

0

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

150mm (6") Single-Station Fixed Jaw Vise, 225mm (9") Opening, Flange Style, Haas Workholding by Kurt

150mm (6") Single-Station Fixed Jaw Vise, 225mm (9") Opening, Flange Style, Haas Workholding by Kurt

150mm (6") Single-Station Fixed Jaw Vise, 225mm (9") Opening, Flange Style, Haas Workholding by Kurt

150mm (6") Single-Station Fixed Jaw Vise, 225mm (9") Opening, Flange Style, Haas Workholding by Kurt

150mm (6") Single-Station Fixed Jaw Vise, 225mm (9") Opening, Flange Style, Haas Workholding by Kurt

150mm (6") Single-Station Fixed Jaw Vise, 225mm (9") Opening, Flange Style, Haas Workholding by Kurt

150mm (6") Single-Station Fixed Jaw Vise, 225mm (9") Opening, Flange Style, Haas Workholding by Kurt

150mm (6") Single-Station Fixed Jaw Vise, 225mm (9") Opening, Flange Style, Haas Workholding by Kurt

150mm (6") Single-Station Fixed Jaw Vise, 225mm (9") Opening, Flange Style, Haas Workholding by Kurt

150mm (6") Single-Station Fixed Jaw Vise, 225mm (9") Opening, Flange Style, Haas Workholding by Kurt

150mm (6") Single-Station Fixed Jaw Vise, 225mm (9") Opening, Flange Style, Haas Workholding by Kurt

150mm (6") Single-Station Fixed Jaw Vise, 225mm (9") Opening, Flange Style, Haas Workholding by Kurt

150mm (6") Single-Station Fixed Jaw Vise, 225mm (9") Opening, Flange Style, Haas Workholding by Kurt

150mm (6") Single-Station Fixed Jaw Vise, 225mm (9") Opening, Flange Style, Haas Workholding by Kurt

150mm (6") Single-Station Fixed Jaw Vise, 225mm (9") Opening, Flange Style, Haas Workholding by Kurt

150mm (6") Single-Station Fixed Jaw Vise, 225mm (9") Opening, Flange Style, Haas Workholding by Kurt

Нет в наличии

0.0 грн.

Country of Origin:USA

Number of Stations:1

Vise Holding Type:Fixed Jaw

Vise Type:Manual

Weight:78.0 lbs \ 35.0 kg

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

150mm (6") Single-Station Fixed Jaw Vise, 225mm (9") Opening, Flange Style, Haas Workholding by Kurt

0.0 грн.

Описание

Характеристики

Характеристики

Country of Origin

USA

Number of Stations

1

Vise Holding Type

Fixed Jaw

Vise Type

Manual

Weight

78.0 lbs \ 35.0 kg

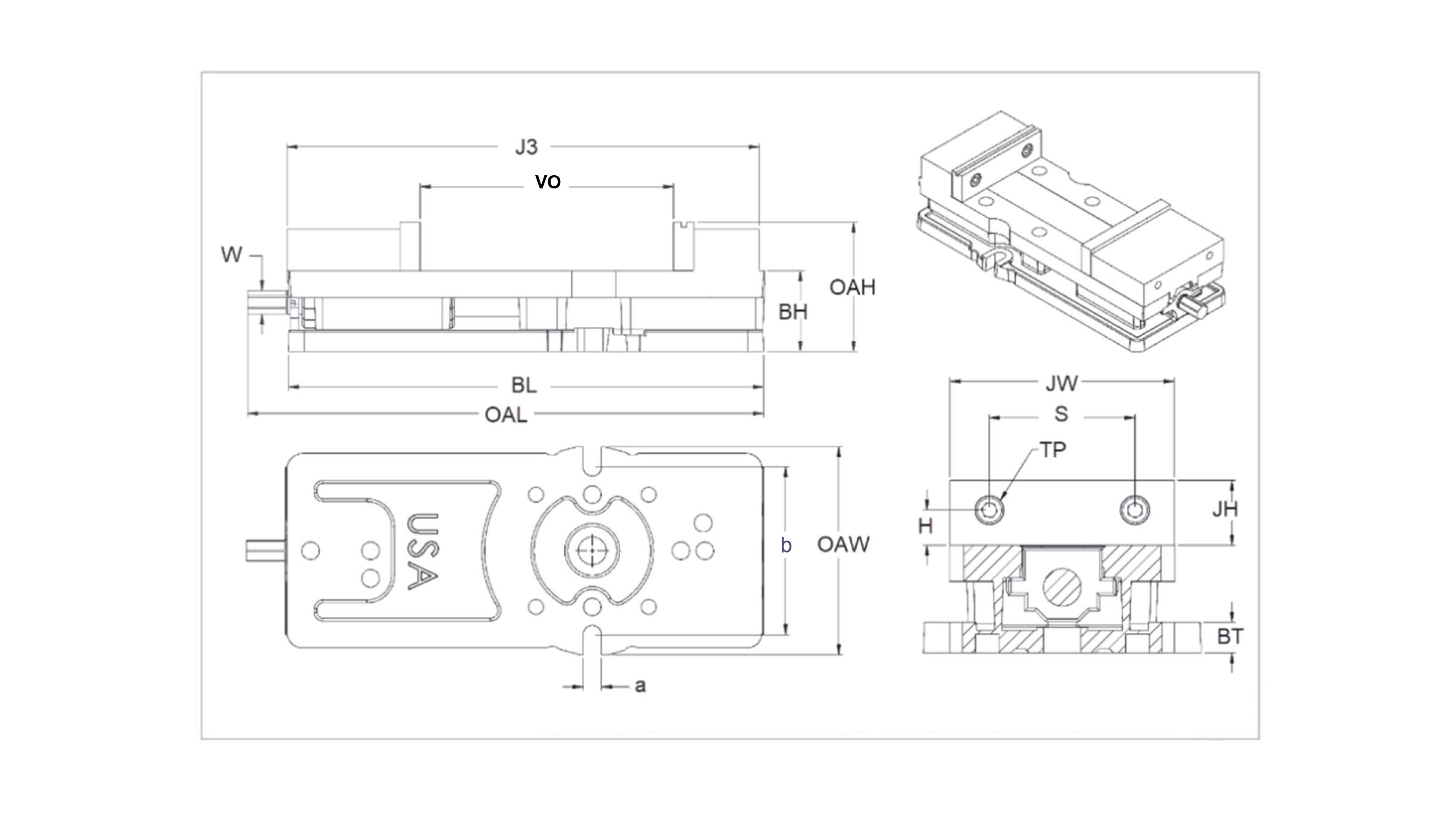

[a] Dimension

0.656 in \ 16.66 mm

[BH] Body Height

2.875 in \ 73.03 mm

[BL] Body Length

16.81 in \ 426.97 mm

[BT] Base Thickness

0.82 in \ 20.83 mm

[b] Dimension

5.972 in \ 151.69 mm

[H] Height of Screw Hole

0.94 in \ 23.88 mm

[J1] Inner Jaw Range

0.0-9.08 in \ 0.0-230.6 mm

[J3] Outer Jaw Range

7.76-16.84 in \ 197.1-427.7 mm

[JH] Jaw Height

1.735 in \ 44.07 mm

[JW] Jaw Width

6.0 in \ 150.0 mm

[OAH] Overall Height

4.36 in \ 110.74 mm

[OAL] Overall Length

18.258 in \ 463.75 mm

[OAW] Overall Width

7.391 in \ 187.73 mm

[S] Screw Spacing

3.875 in \ 98.43 mm

[TP] Thread pitch

M12x1.75

[VO] Vise Opening

9.0 in \ 225.0 mm

[W] Wrench Size

19.0 mm
