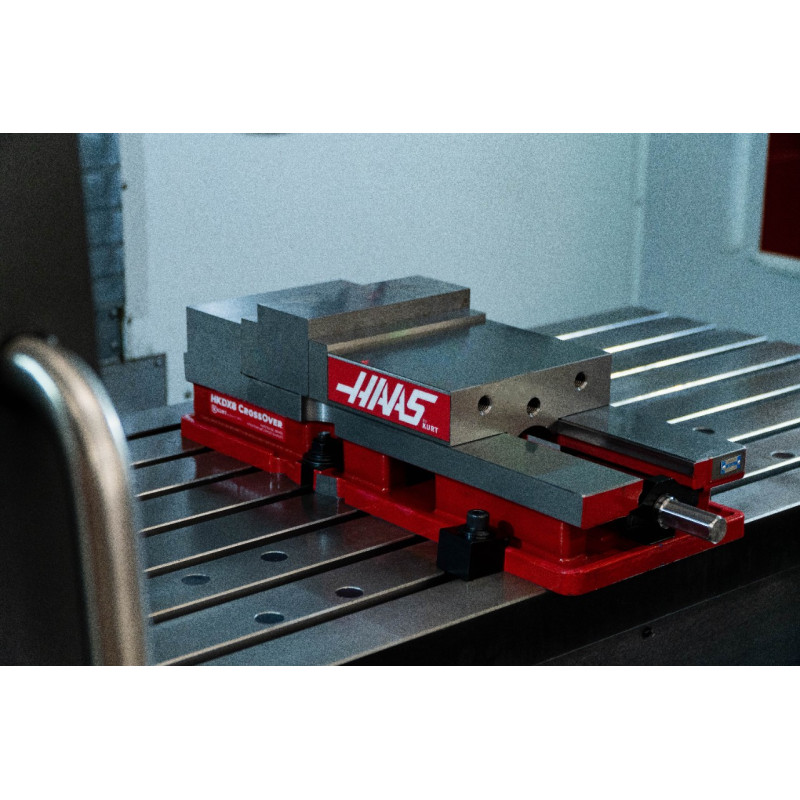

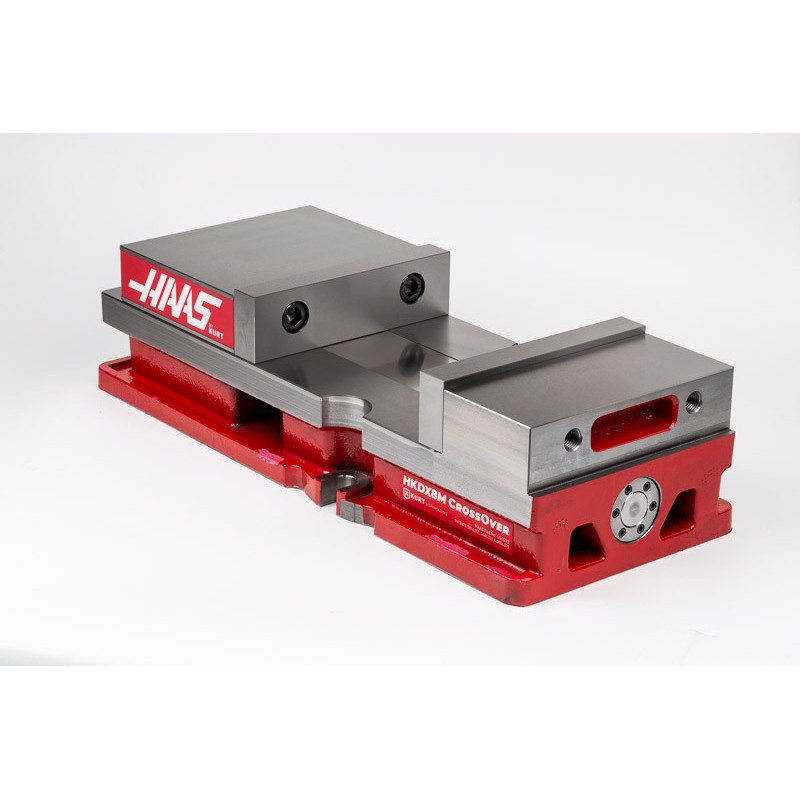

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

Производитель: HAAS Модель: 5096

0

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

Нет в наличии

0.0 грн.

Country of Origin:USA

Number of Stations:1

Vise Holding Type:Fixed Jaw

Vise Type:Manual

Weight:158.0 lbs \ 71.7 kg

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

200mm (8") Single-Station Fixed-Jaw Vise, 265mm (10-1/2") Opening, Flange Style, Haas Workholding by Kurt

0.0 грн.

Описание

Характеристики

Характеристики

Country of Origin

USA

Number of Stations

1

Vise Holding Type

Fixed Jaw

Vise Type

Manual

Weight

158.0 lbs \ 71.7 kg

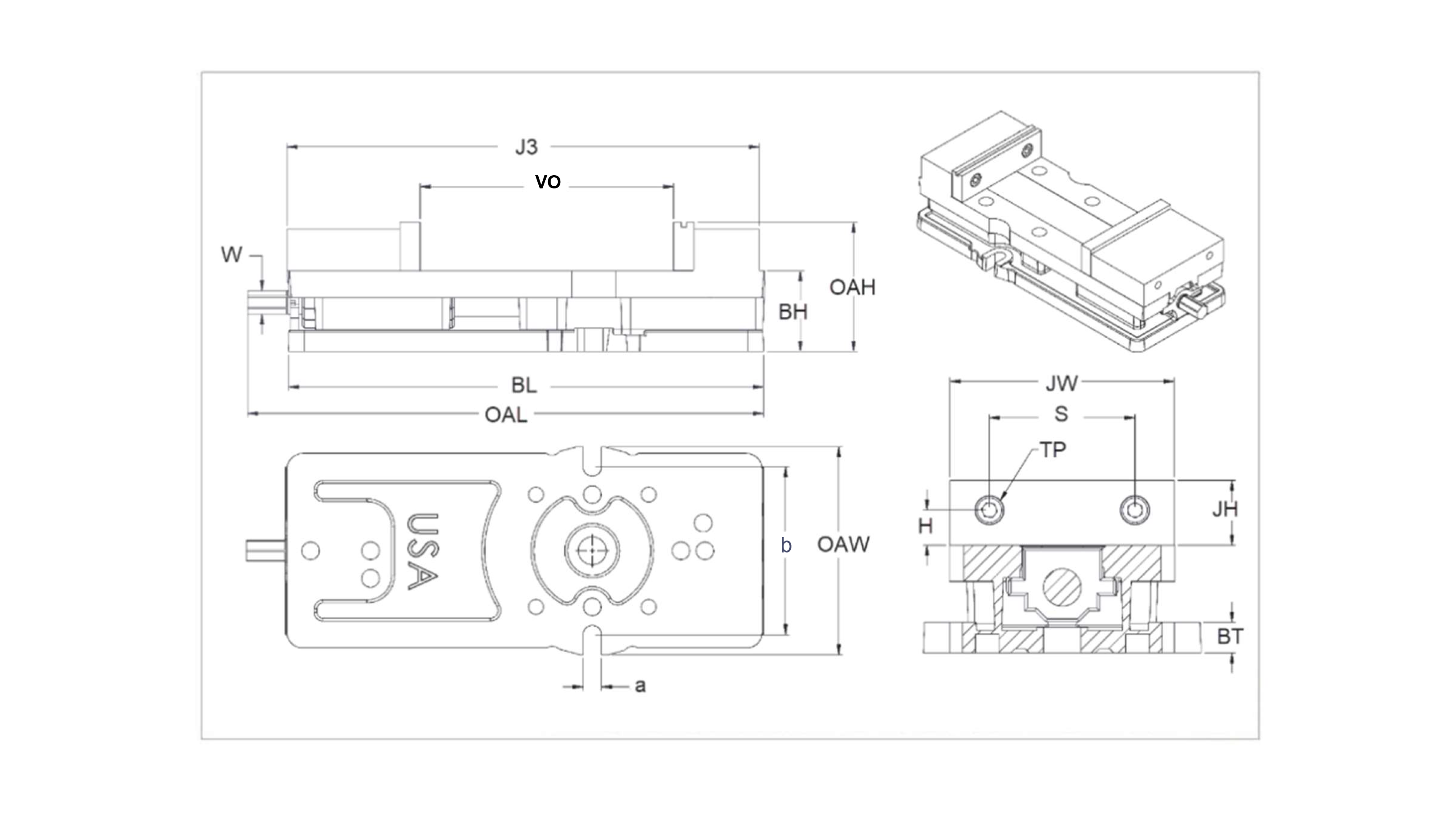

[a] Dimension

0.77 in \ 19.56 mm

[BH] Body Height

3.31 in \ 84.07 mm

[BL] Body Length

21.865 in \ 555.37 mm

[BT] Base Thickness

0.76 in \ 19.3 mm

[b] Dimension

7.732 in \ 196.39 mm

[H] Height of Screw Hole

1.22 in \ 30.99 mm

[J1] Inner Jaw Range

0.0-10.63 in \ 0.0-270.0 mm

[J3] Outer Jaw Range

12.37-22.4 in \ 314.2-570.0 mm

[JH] Jaw Height

2.2 in \ 55.88 mm

[JW] Jaw Width

8.0 in \ 200.0 mm

[OAH] Overall Height

5.51 in \ 139.95 mm

[OAL] Overall Length

24.016 in \ 610.01 mm

[OAW] Overall Width

8.987 in \ 228.27 mm

[S] Screw Spacing

4.75 in \ 120.65 mm

[TP] Thread pitch

M16x2.0

[VO] Vise Opening

10.5 in \ 265.0 mm

[W] Wrench Size

22.0 mm
