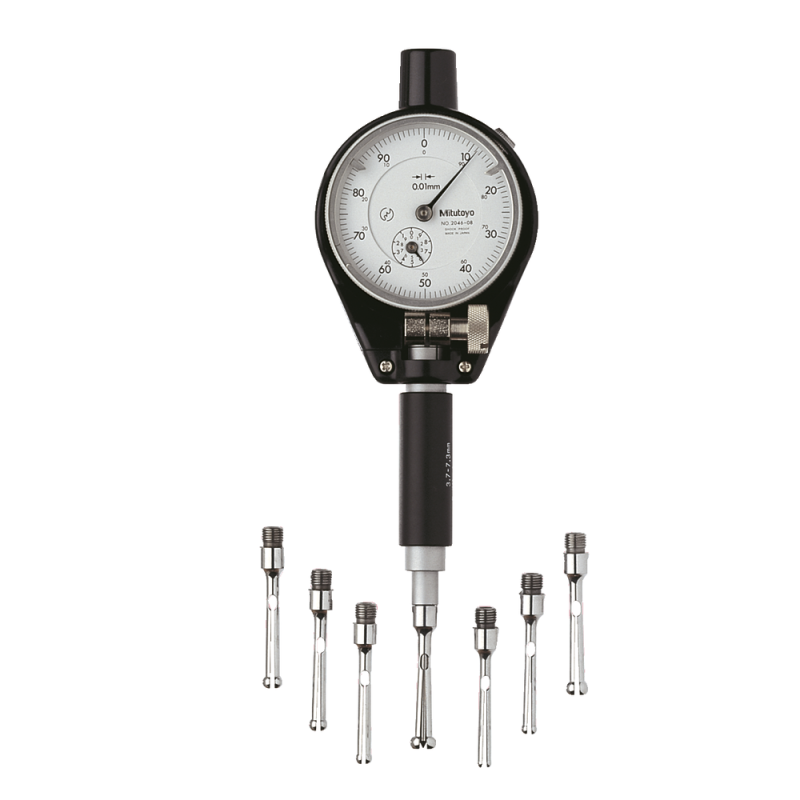

Bore gauge 3.7-7.3mm (0.001mm)

Name: Bore gauge 3.7-7.3mm (0.001mm)
Brand: MITUTOYO
SKU: 5260010003
Availability: OutOfStock

Производитель: MITUTOYO Модель: 31545

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

Contents:Internal precision instrument, dial gauge 0.001mm, 7 measuring heads

DIN:Company standard

Display:Analogue

Included in delivery:Sturdy box

Measurement range:3.70 - 7.30 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Bore gauge 3.7-7.3mm (0.001mm)

0.0 грн.

Описание

Internal precision instrument

For tasks such as measuring extremely small bores (from O 0.95 mm)
Comparative measurement with reference to a pre-set reference dimension

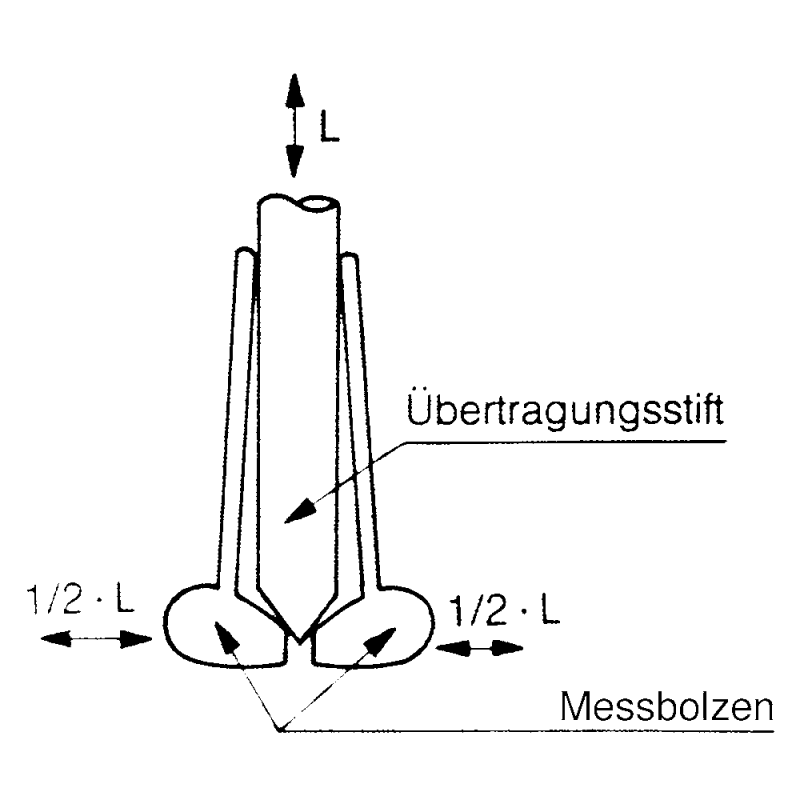

With dial indicator and expansion measuring heads
Measuring heads from O 0.95 to 7.0 mm with a hard chrome-plated finish, and O 7.0 to 18 mm made from hardened gauge steel similar to measuring needles
Dial indicator can be replaced with a digital dial indicator including a data output (optional accessory)
* = Measurement depth: Measurement range 1.5 - 2.25 mm = 17.5 mm, measurement range 2.25 - 4.00 mm = 22.5 mm
Calibration includes dial indicator
Supplied in a case with base unit, set of measuring heads, measuring needle, analogue dial indicator including plastic protector, and assembly key

Характеристики

Contents

Internal precision instrument, dial gauge 0.001mm, 7 measuring heads

DIN

Company standard

Display

Analogue

Included in delivery

Sturdy box

Measurement range

3.70 - 7.30 mm

Measuring depth

32 mm

Packaging unit

Scale value

0.001 mm
