Bore gauge OD nominal dimension range 60.1-80.0mm front face size h=4.0mm

Name: Bore gauge OD nominal dimension range 60.1-80.0mm front face size h=4.0mm
Brand: SCHWENK
SKU: 5265570080
Availability: OutOfStock

Производитель: SCHWENK Модель: 31530

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Bore gauge OD nominal dimension range 60.1-80.0mm front face size h=4.0mm

Нет в наличии

0.0 грн.

Height:4.0 mm

Max. height:33 mm

Nominal dimension:60.1-80.0 mm

Packaging unit:1

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Bore gauge OD nominal dimension range 60.1-80.0mm front face size h=4.0mm

0.0 грн.

Описание

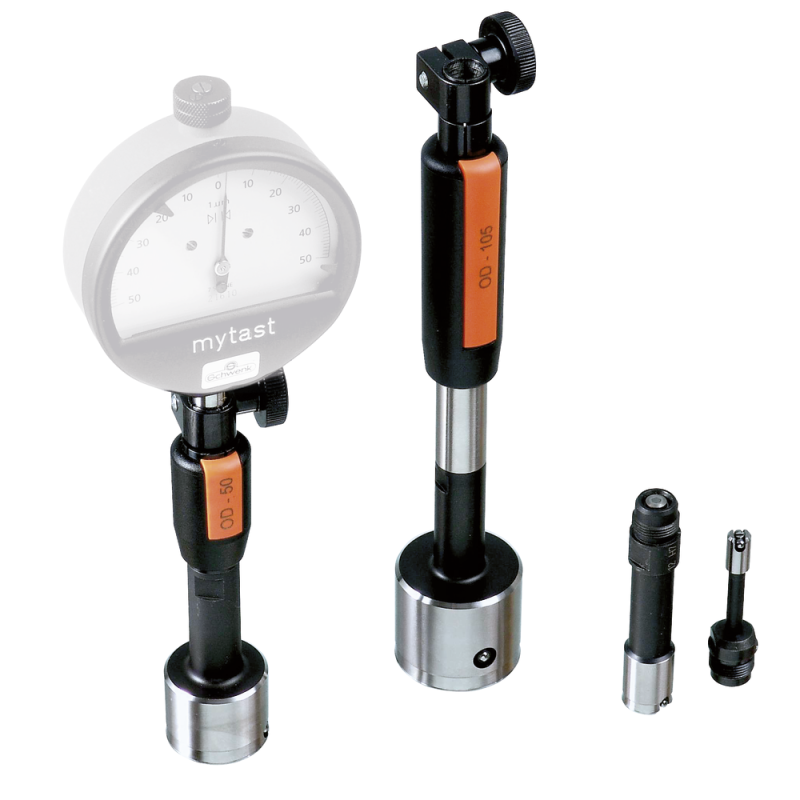

Bore gauge OD

Robust and easy-to-use two-point comparative measuring instrument
For series inspections of O 3.1 to 110mm bores
High-precision measuring sleeve ensures optimum centering inside the bore
Repeat precision 1um
Measuring span 0.2mm (O 3.1 to 6.0 = 0.15mm)
Measuring force 1 - 2N
Carbide measuring probes, other materials available on request
Suitable for measuring with indicating callipers, dial indicators or electric probes
Connecting thread holder/gauge M11 x 0.75

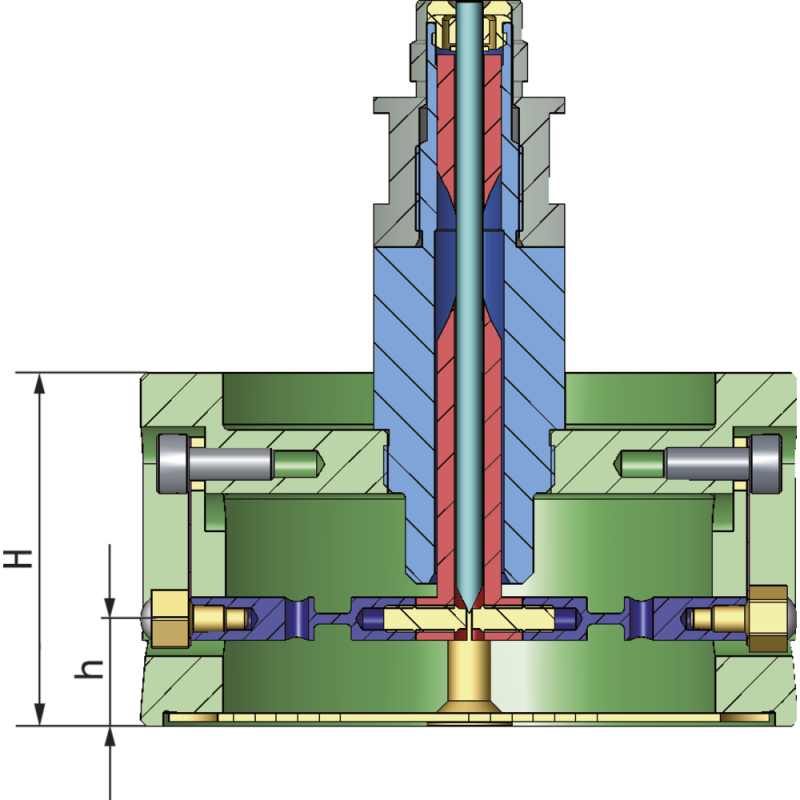

* = nominal dimension range up to O 4mm H = 26mm, from O 4.01 up to 6mm H = 10mm
The following is required for a complete bore gauge OD: Bore gauge (526557.../526558...) + holder (526559...) + indicating measuring instrument + suitable ring gauge
Greater diameter, indicating measuring instrument and suitable ring gauges available on request
Supplied without indicating measuring instrument and ring gauges

Standard bore gauge OD

Caution: Please specify the nominal dimension and tolerance of the bore when placing your order!
Examples: No. 526557 0006 / 4 +0.02 / -0.01, No. 526557 0020 / 18H7

Характеристики

Height

4.0 mm

Max. height

33 mm

Nominal dimension

60.1-80.0 mm

Packaging unit
