Bore gauge with three-point contact 6-12mm (0.001mm)

Name: Bore gauge with three-point contact 6-12mm (0.001mm)
Brand: SARA
SKU: 5077040012
Availability: OutOfStock

Производитель: SARA Модель: 26366

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Bore gauge with three-point contact 6-12mm (0.001mm)

Нет в наличии

0.0 грн.

Adjusting ring diameter:8 | 10 mm

Contents:6-8 | 8-10 | 10-12 mm

DIN:863/4

Display:Analogue

Extensions provided:100 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Bore gauge with three-point contact 6-12mm (0.001mm)

0.0 грн.

Описание

Inside micrometers with three-point contacts

For measuring through-holes and blind holes
Large measurement depths due to extension
Reading and operating parts matt chrome-plated
Measuring spindle fully hardened and ground
Ratchet coupling for repeatable measuring force
Self-centering measuring head with three laterally extending measuring probes
Carbide tipped from a measurement range of 12 mm
Clearance a for 6 – 12 mm = 1.4 mm, 12 – 100 mm = 0.5 mm
Scale division up to size 0012 = 0.001 mm, from size 0016 = 0.005 mm
Calibration including ring gauges, reduced testing

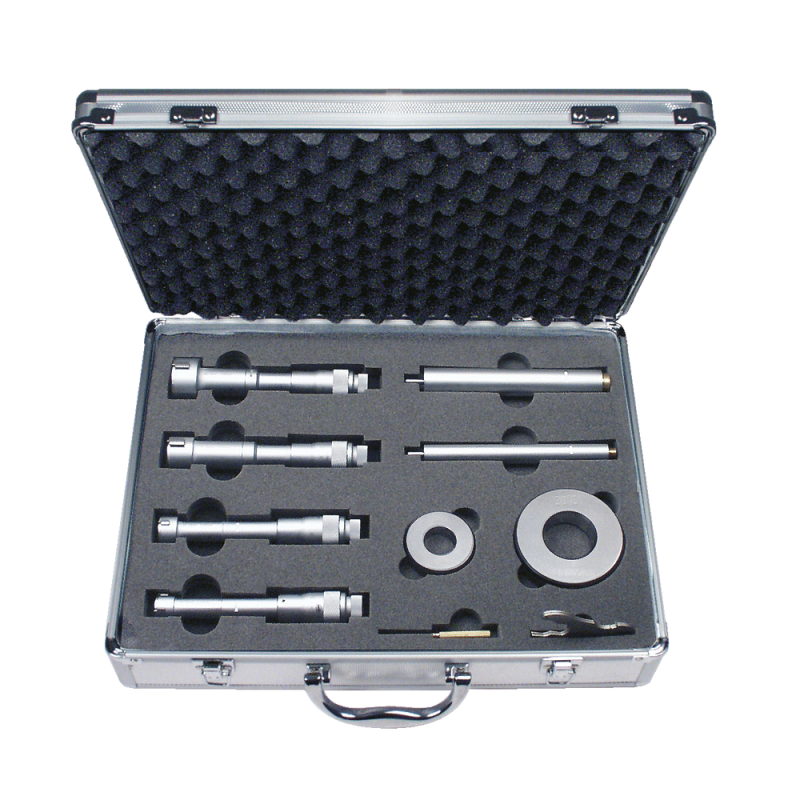

Supplied in a sturdy transport case including ring gauge and extension

Sets

Scale division for size 0012 = 0.001 mm, from size 0020 = 0.005 mm

Характеристики

Adjusting ring diameter

8 | 10 mm

Contents

6-8 | 8-10 | 10-12 mm

DIN

863/4

Display

Analogue

Extensions provided

100 mm

Included in delivery

Sturdy box

Measurement range

6 - 12 mm

Measuring spindle increments

0.5 mm

Packaging unit
