BOREMATIC digital bore gauge with three-point contact 6-12mm (0.001mm)

Name: BOREMATIC digital bore gauge with three-point contact 6-12mm (0.001mm)
Brand: MITUTOYO
SKU: 5085080012
Availability: OutOfStock

Производитель: MITUTOYO Модель: 26378

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

BOREMATIC digital bore gauge with three-point contact 6-12mm (0.001mm)

Нет в наличии

0.0 грн.

Adapter:1

Contents:1 basic unit, 3 measuring heads 6-8 / 8-10 / 10-12 mm, 2 ring setting Ø 8 / 10 mm

Data transmission type:DIGIMATIC/USB

Digit increment:0.001 mm

Display:Digital

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

BOREMATIC digital bore gauge with three-point contact 6-12mm (0.001mm)

0.0 грн.

Описание

Inside micrometers with three-point contacts BOREMATIC

For fast and precise series measurements
Base body with operating handle for quick adjustment
Extremely easy to read with 11 mm high digits
Display component can be rotated through 330°
Allows two pre-set values to be input
Measuring faces: up to size 0012, titanium-coated carbide; from size 0016, titanium-coated measuring pins made from hardened steel. Contact point and taper: Carbide
Error margin: Measuring range 6 - 20 mm, O = 0.005 mm; measuring range 20 - 125 mm O = 0.006 mm
Functions: MODE to switch between tolerance, factor and pre-set modes
SET to confirm input
DATA/ON/OFF
Battery check
Supplied with SR44 battery (no. 500534 0001), key and factory certificate
Optional accessories: Digimatic cable type F, no. 563100 0051 (1 m), no. 563100 0052 (2 m); USB cable type F-USB, no. 563110 0006; ring gauge, no. 540135....; extensions, no. 508701....

Sets with replaceable measuring heads

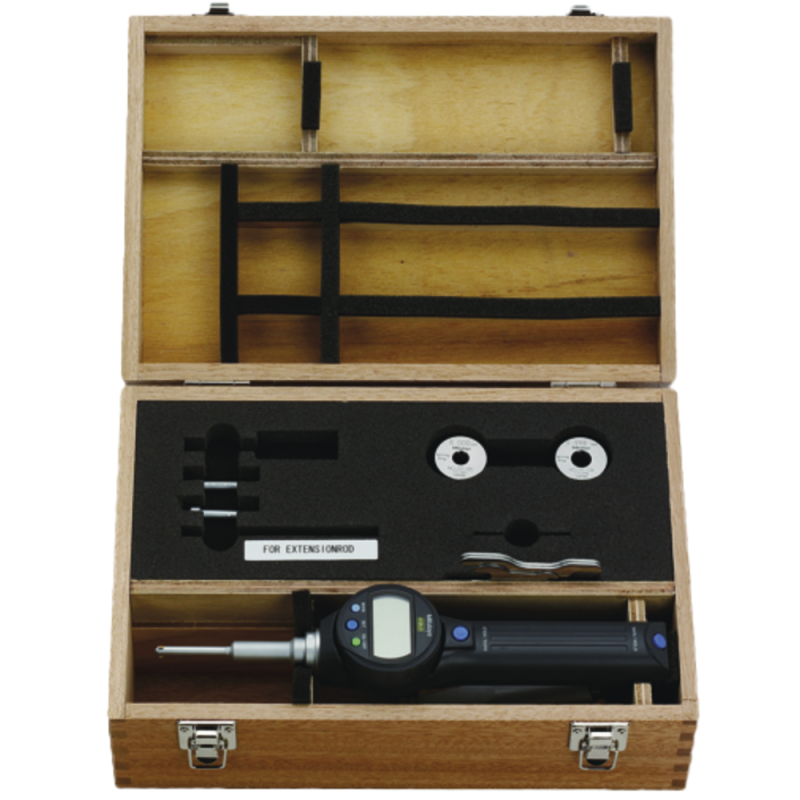

With adapters, measuring inserts and ring gauges, in wooden box, including battery and wrench, with factory certificate for the Borematic measuring heads
Calibration including ring gauges, reduced testing

Характеристики

Adapter

Contents

1 basic unit, 3 measuring heads 6-8 / 8-10 / 10-12 mm, 2 ring setting Ø 8 / 10 mm

Data transmission type

DIGIMATIC/USB

Digit increment

0.001 mm

Display

Digital

Function

Absolute function

Included in delivery

Sturdy box

Measurement range

6-12 mm

Measurement system

ABSOLUTE

Measuring heads

6-8 / 8-10 / 10-12 mm

Packaging unit

Reading

0.001 mm readings

Ring gauges

8 / 10 mm
