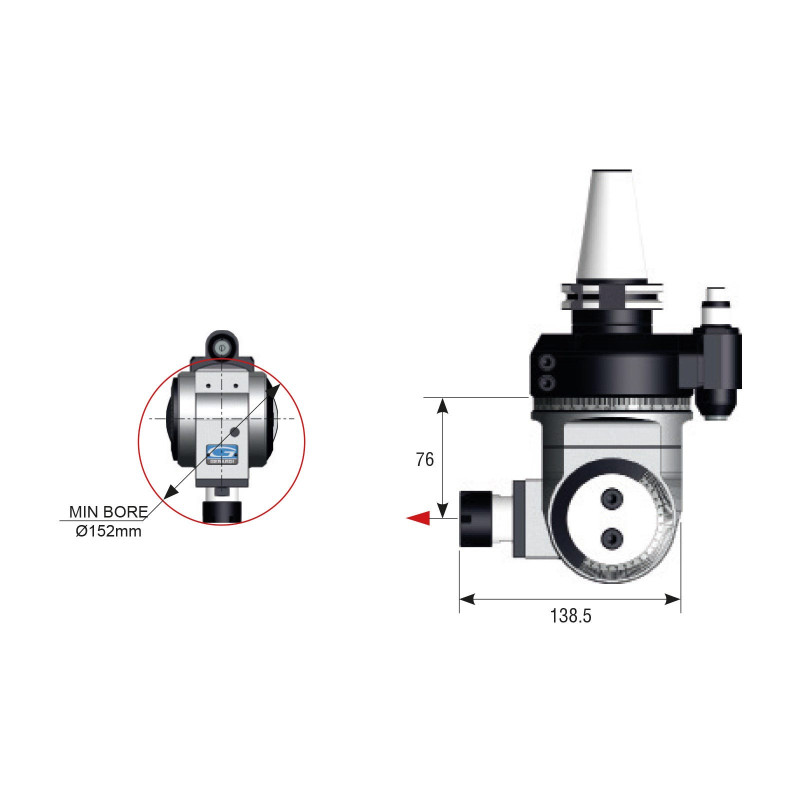

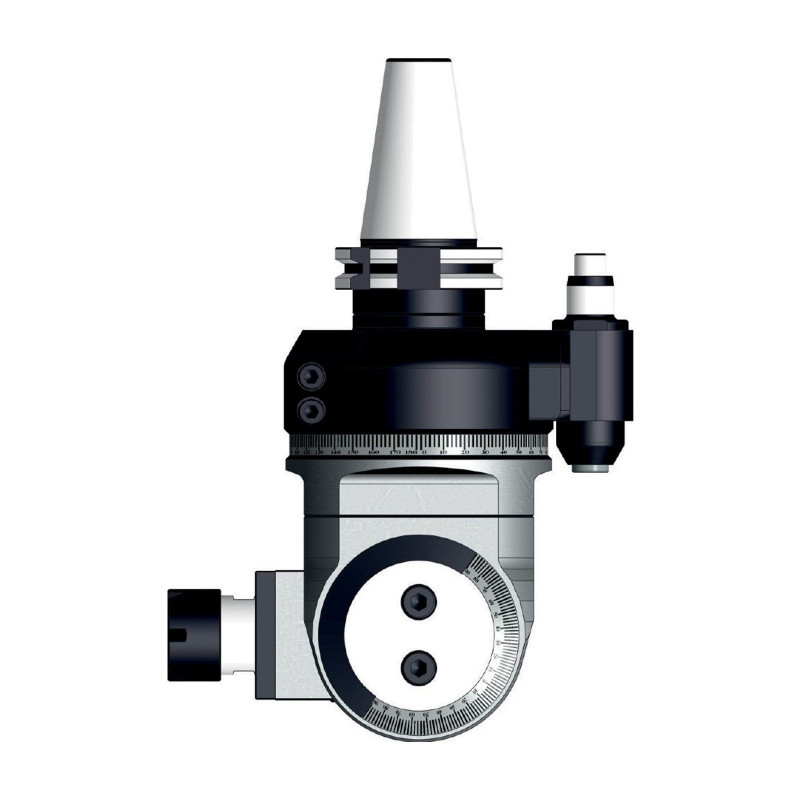

BT50 0-90 Degree Adjustable Evolution Line Angle Head, ATC (Automatic Tool Change), ER25 Output - GER-FMU-16 Series (Gerardi)

Name: BT50 0-90 Degree Adjustable Evolution Line Angle Head, ATC (Automatic Tool Change), ER25 Output - GER-FMU-16 Series (Gerardi)
Brand: Gerardi
SKU: 9.FMU.16000-BT50EC
Availability: OutOfStock

Производитель: Gerardi Модель: 13844

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

BT50 0-90 Degree Adjustable Evolution Line Angle Head, ATC (Automatic Tool Change), ER25 Output - GER-FMU-16 Series (Gerardi)

Нет в наличии

0.0 грн.

Brand:Gerardi

Category:Toolholding

Holder material:Steel

Output:ER25 (max 16mm shank)

Rotation Direction:Opposite to machine spindle

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

BT50 0-90 Degree Adjustable Evolution Line Angle Head, ATC (Automatic Tool Change), ER25 Output - GER-FMU-16 Series (Gerardi)

0.0 грн.

Описание

Gerardi Evolution Line Angle Heads feature an interchangeable Drive Taper which enables the same angle head to be used of different machines simply by changing the input shaft. 100% made in Italy, Gerardi Angle Heads exude quality with a case hardened & ground shank and shaft, gleason gears and ABEC 9 precision class bearings. The ATC (Automatic Tool Change) Angle Heads can be automatically transferred from the tool store to the machine spindle and vice versa. Evolution line angle heads guarantee exceptional tool life, high performance, high machining speeds and are ideal for heavy duty applications.

Gerardi Evolution Line Angle Heads are powerful with high speed capabilities for demanding applications
Automatic tool change allows the head to be automatically transferred from the tool store to the machine spindle and vice versa
Interchangeable drive taper enables the same head to be used in different machines
Case hardened and ground shank/shaft
Angular contact preloaded ball bearings of precision class ABEC 9
Gleason cut spiral bevel drive gears with ground teeth which guarantees a bigger torque
Designed for superior heat dissipation and for sustained periods of high speed operations
Treated steel body with internal air pressure, maximum rigidity and corrosion resistance
Gerardi Evolution line angle heads are 100% designed and manufactured in Italy
Covered by 1 year manufacturers warranty

Характеристики

Brand

Gerardi
