C6 External Coolant ER20 Spindle Speed Increaser, 22,000RPM, 1:6 Ratio - GSS13 Series (Gerardi)

Name: C6 External Coolant ER20 Spindle Speed Increaser, 22,000RPM, 1:6 Ratio - GSS13 Series (Gerardi)
Brand: Gerardi
SKU: 9.GS.S1300-C6
Availability: OutOfStock

Производитель: Gerardi Модель: 14002

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

C6 External Coolant ER20 Spindle Speed Increaser, 22,000RPM, 1:6 Ratio - GSS13 Series (Gerardi)

Нет в наличии

0.0 грн.

Category:Toolholding

Coolant Type:External

ER Collet Size:ER20

Ratio:1 to 6

RPM:22,000

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

C6 External Coolant ER20 Spindle Speed Increaser, 22,000RPM, 1:6 Ratio - GSS13 Series (Gerardi)

0.0 грн.

Описание

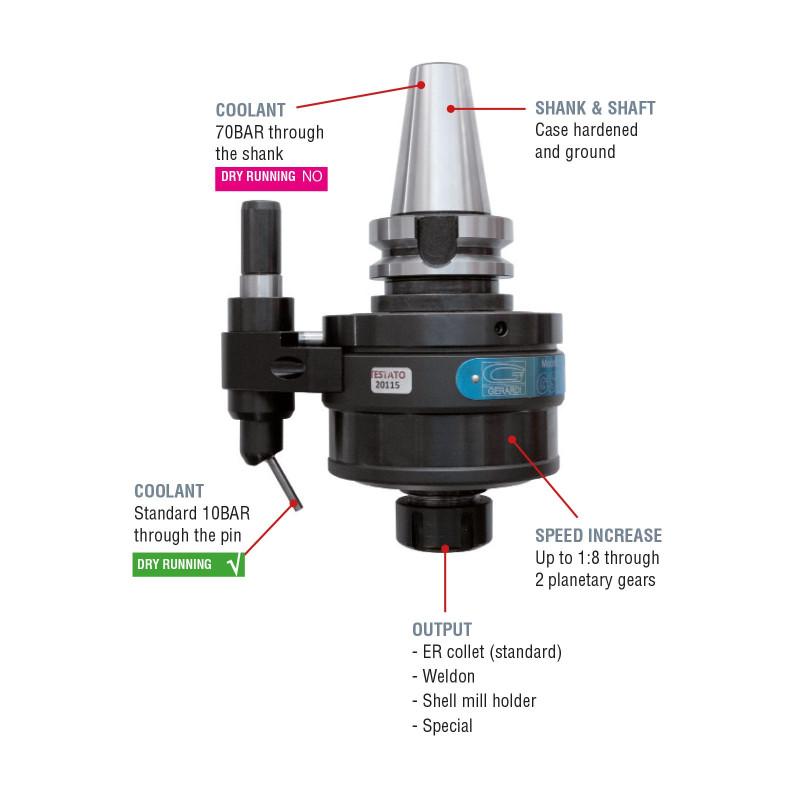

Italian made Gerardi spindle speeders are ideal for increasing spindle speeds on milling machines and machining centres. The modular shanks allow these to be used across different machine tools. The GSS13 series can operate at 22,000RPM and offers external coolant through a retention pin.

1:6 ratio with max speed of 22,000RPM
ER20 output (max 13mm shank)
Coolant through the retention pin (external)
Supplied with standard stop block
Modular shanks, can be used across multiple milling machines
Two planetary ground gears for high transmission power
Manual or automatic tool change option
The perfect solution for small diameter tools which need to run at high spindle speeds or for machines with very low spindle speeds where higher RPM’s are desirable
Reduces stress on machine spindle for older machine tools
Case hardened and ground shank & shaft to ensure maximum rigidity
Angular contact preloaded ball bearings of precision class ABEC 9
Gleason gears to deliver higher torque
Ensures maximum reliability and accuracy in milling and drilling
Made in Italy by Gerardi
All Gerardi spindle speeders are covered by a 1 year warranty
