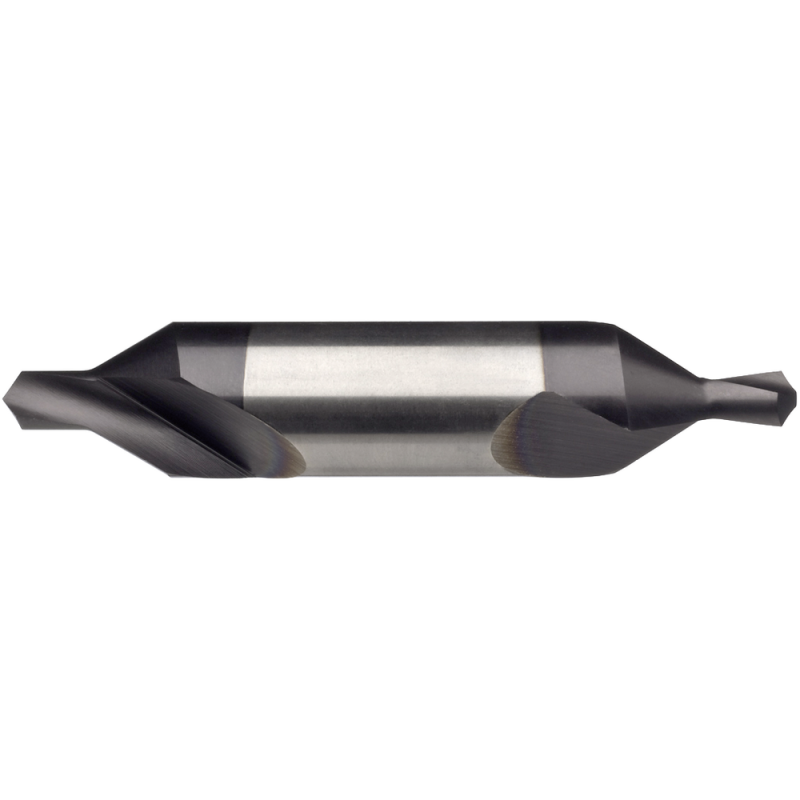

Center ring drill HSS-Co5 DIN333A 1mm TiAlN

Name: Center ring drill HSS-Co5 DIN333A 1mm TiAlN
Brand: ATORN
SKU: 1001090100
Availability: OutOfStock

Производитель: ATORN Модель: 42732

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Center ring drill HSS-Co5 DIN333A 1mm TiAlN

Нет в наличии

0.0 грн.

A dimension:0.3 mm

Cantilever length:15.50 mm

Coating:TiAlN

Coolant supply:External

Countersink angle:60 °

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Center ring drill HSS-Co5 DIN333A 1mm TiAlN

0.0 грн.

Описание

Centering drills

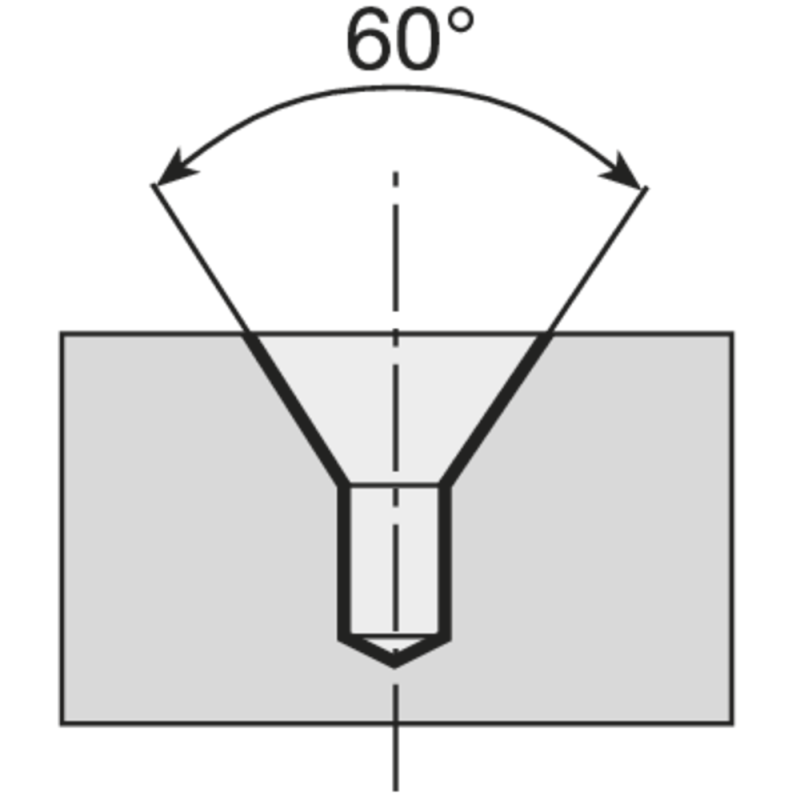

For centering holes without protected center DIN 332 A
Spiral-fluted, high true-running accuracy

Usage characteristics

aluminum < 8% Si
aluminum >= 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
graphite
austenitic stainless steel
stainless steel ferrit./martens.
steel < 1000 N/mm2
steel < 1400 N/mm2
steel < 700 N/mm2
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based >= 30 HRc
titanium alloys

Характеристики

Feed f steel

0.01 mm/rev

Характеристики

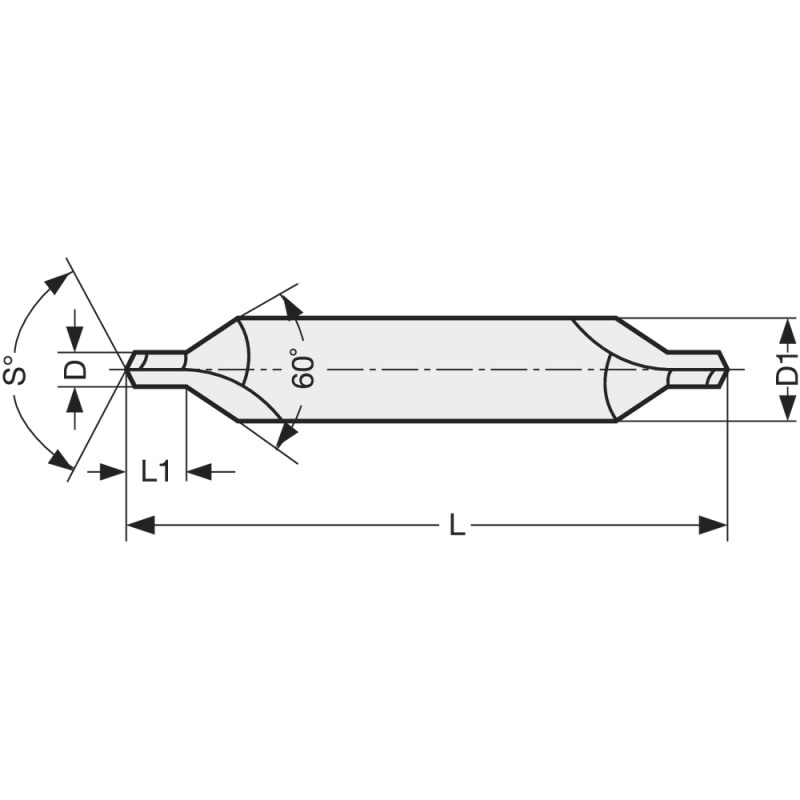

A dimension

0.3 mm

Cantilever length

15.50 mm

Coating

TiAlN

Coolant supply

External

Countersink angle

60 °

Cutting data

Cutting angle information - yes

Cutting edge length 2

1.50 mm

Cutting material

HSSE

Cutting speed (brass long) suitability

Cutting speed (brass long) Vc

30.00 m/min

Cutting speed (bronze long) suitability

Cutting speed (bronze long) Vc

30.00 m/min

Cutting speed (bronze short) suitability

Cutting speed (bronze short) Vc

35.00 m/min

Cutting speed (plastic) suitability

Cutting speed (plastic) Vc

20.00 m/min

1.00 mm

3.15 mm

Diameter 2

3.15 mm

DIN

333

Effective length

3.36 mm

fitness not iron total

fitness stainless steel total

fitness Titanium/Nickel/Super total

Flute length

8.00 mm

31.5 mm

L1 min./max.

1.3-1.6 mm

Max. cutting edge diameter

5.0 mm

Max. cutting edge length

1.6 mm

Min. cutting edge diameter

1.0 mm

Min. cutting edge length

1.3 mm

Min./max. cutting edge diameter

1.0-5.0 mm

Neck length

3.36 mm

Number of tips

2 pc.

Overall stainless steel suitability

Packaging unit

Point angle

118 °

Shape

Swirl angle

10°

Tolerance of cutting edge diameter

k12

Tolerance of shank diameter

Tool holding device

HA parallel shank

2 pc.
