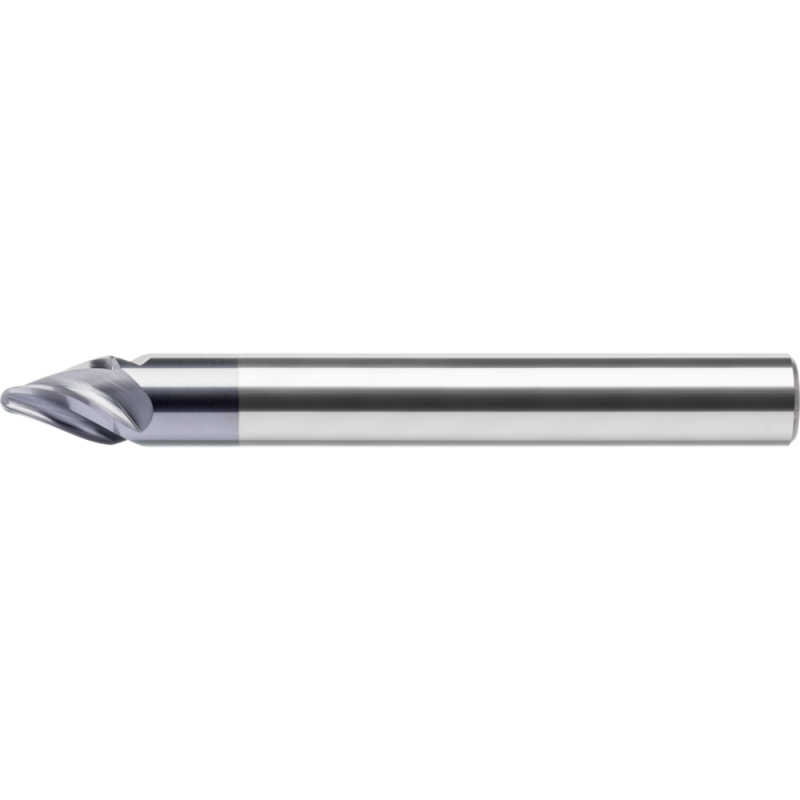

Circle segment milling cutter SC Ø8.0x16x120 mm, R4/1200 Z4 conical AlTiN

Name: Circle segment milling cutter SC Ø8.0x16x120 mm, R4/1200 Z4 conical AlTiN
Brand: ATORN
SKU: 2541731880
Availability: OutOfStock

Производитель: ATORN Модель: 64799

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Circle segment milling cutter SC Ø8.0x16x120 mm, R4/1200 Z4 conical AlTiN

Нет в наличии

0.0 грн.

Application direction milling:Lining, ramping and drilling

Application milling:MSC

Center cutting:Yes

Coating:TiAlN

Coolant supply:External

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Circle segment milling cutter SC Ø8.0x16x120 mm, R4/1200 Z4 conical AlTiN

0.0 грн.

Описание

Circle segment milling cutter

Reduction of workpiece costs and significantly shorter manufacturing times based on the significant increase in the line spacing ae
New manufacturing possibilities
- Undercuts
- Semi-finishing and finishing of tight contours
- Variable setting angle possible
- Machining of tight inner radii
- Freeform surfaces
Improved surface finish
Increased tool life

Conical

Usage characteristics

aluminum < 8% Si
aluminum >= 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GG/GTS
cast iron GGG
hardened steel <= 55 HRC
plastic
austenitic stainless steel
stainless steel ferrit./martens.
steel < 1000 N/mm2
steel < 1400 N/mm2
steel < 700 N/mm2

Характеристики

Feed fz steel

0.096 mm/tooth

Totally stainless steel suitability

Характеристики

Application direction milling

Lining, ramping and drilling

Application milling

MSC

Center cutting

Yes

Coating

TiAlN

Coolant supply

External

Cutting data

Cutting angle information - yes

Cutting material

Solid carbide

8 mm

16 mm

Design

TiAlN

Diameter max.

8 mm

Diameter min.

2 mm

Diameter min./max.

2-8 mm

fitness hartl total

fz steel 1000

0.096 mm

120 mm

16 mm

Overall length

Normal

Packaging unit

4 mm

1200 mm

4 mm

Rake angle

15°

Setting angle

Shape

Torus

Suitability not total iron

Suitability titanium/nickel/super total

Suitable for material group H

Suitable for material group K

Suitable for material group M

Suitable for material group N

Suitable for material group P

Suitable for material group S

Surface

ULTRA

Tolerance of cutting edge diameter

+/-0.01

Tolerance of shank diameter

Tool holding device

HA parallel shank

Twist angle

15°

Type

4 pc.
