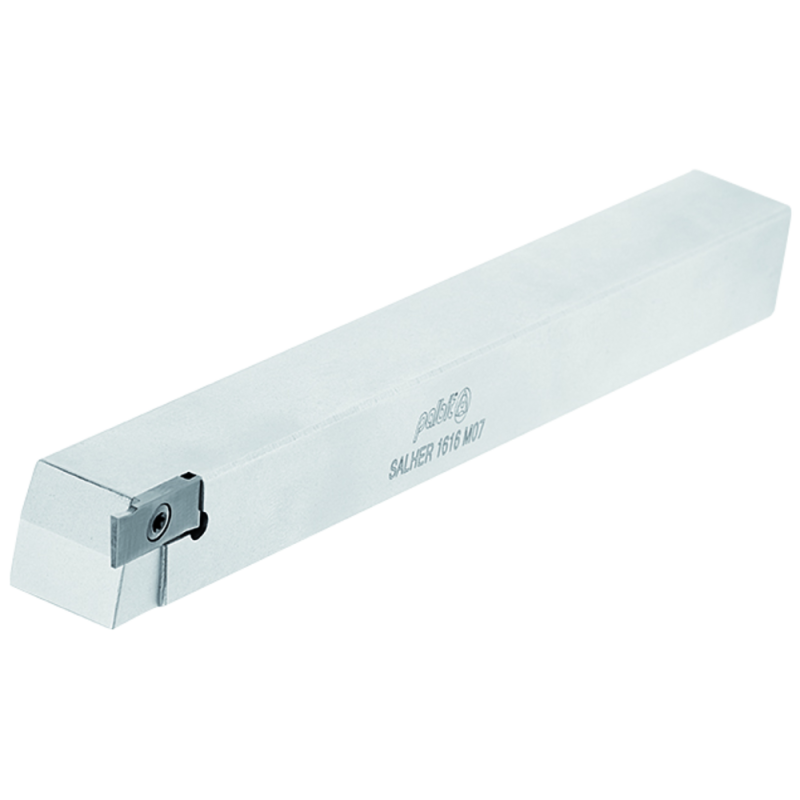

Clamp mounting SALHER 2525 M07

Name: Clamp mounting SALHER 2525 M07
Brand: PALBIT
SKU: 3610032525
Availability: OutOfStock

Производитель: PALBIT Модель: 60082

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

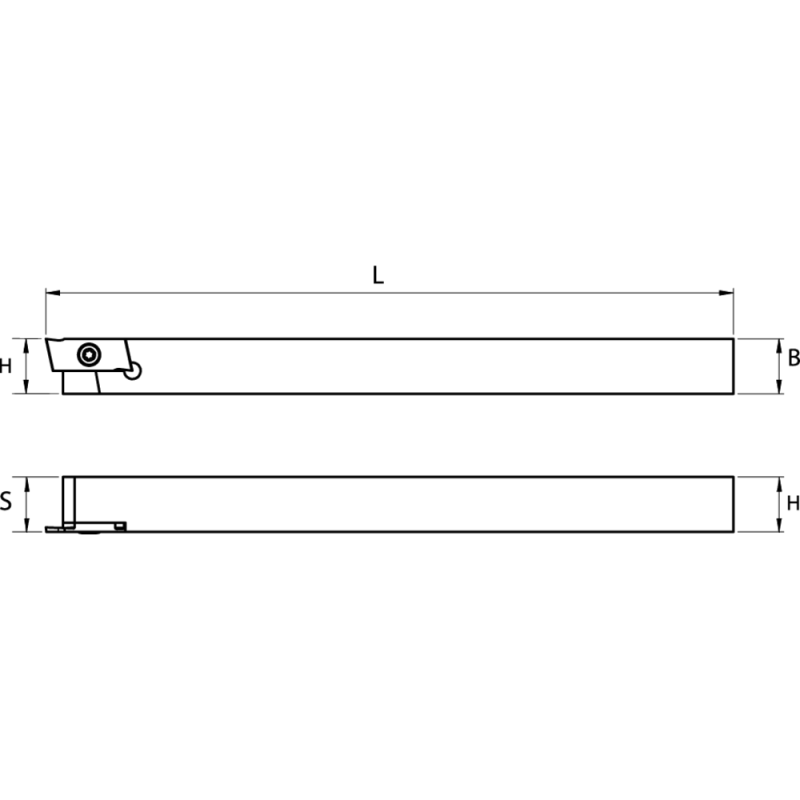

Design:Right

Designation:SALHER/L 2525 M07

L:150 mm

Packaging unit:1

Shank height (H):25 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Clamp mounting SALHER 2525 M07

0.0 грн.

Описание

Grooving and parting-off up to 2 mm
Grooving and parting-off system MINI

Two cutting edges on each indexable cutting insert for extremely small-scale grooving and parting-off tasks
Practically the entire spectrum of operations involved in grooving and parting-off work up to 2.0 mm is covered with a minimum of equipment.
The design of the insert seat in the holder, clamped in place by means of a TORX screw, ensures a high level of repeatability and positioning precision of the cutting edge, and enables all of the indexable cutting inserts listed below to be used.

External machining

Характеристики

Design

Right

Designation

SALHER/L 2525 M07

150 mm

Packaging unit

Shank height (H)

25 mm

Shank width

25 mm
