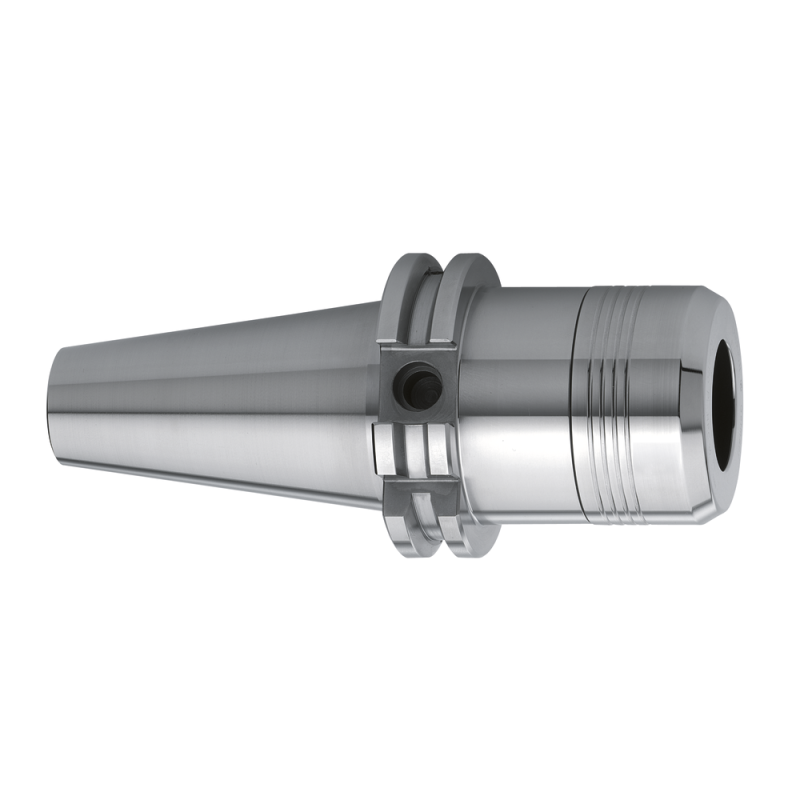

Collet chuck Centro-P DIN69871AD SK40 2-16mm A=45mm ER25

Name: Collet chuck Centro-P DIN69871AD SK40 2-16mm A=45mm ER25
Brand: FAHRION
SKU: 4312300440
Availability: OutOfStock

Производитель: FAHRION Модель: 43716

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

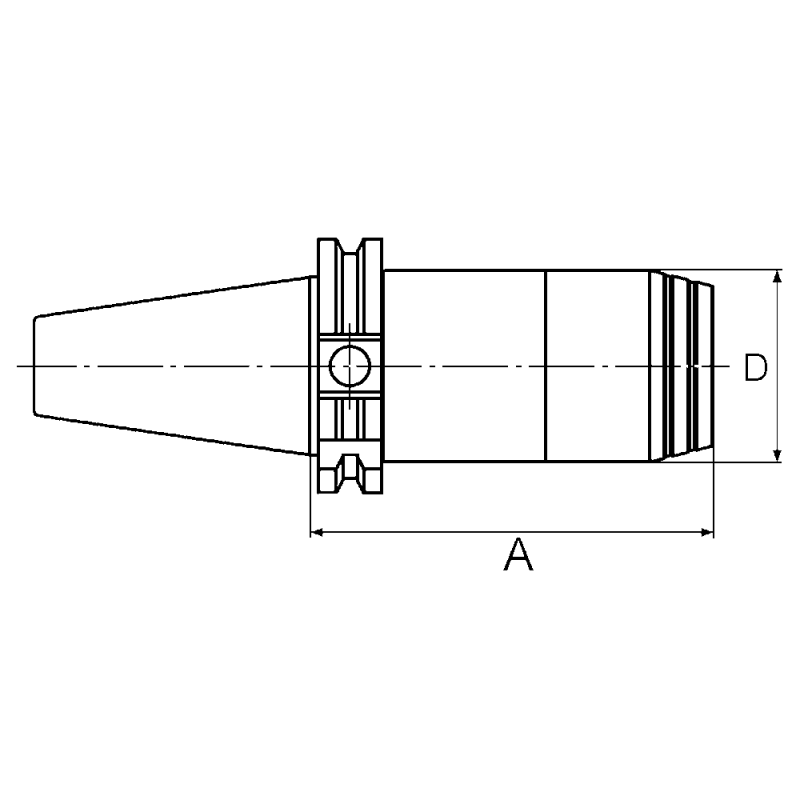

a:45 mm

Clamping range:2 - 16

D:40 mm

External Ø:40 mm

for collets:GER25-HP/-HPD/-HPDD

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Collet chuck Centro-P DIN69871AD SK40 2-16mm A=45mm ER25

0.0 грн.

Описание

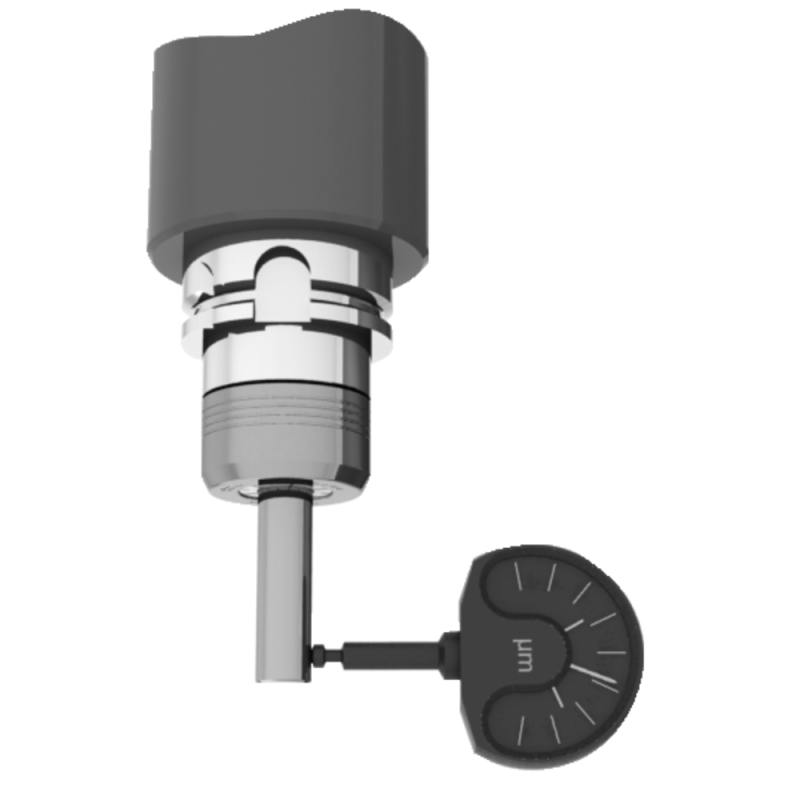

True-running accuracy 1 µm
CENTRO|P precision ER collet chuck

30° trapezoidal thread
With ground, extra-long double guide compared to 60° V-thread in conventional collet chucks
Coated clamping nut reduces friction when tightening the nut
Exact nut centering to minimize imbalance
Up to 100% higher holding forces compared with conventional collet chucks
Pre-balanced to G 2.5 at 25,000 rpm
Entirely suitable for dry processes and hard milling

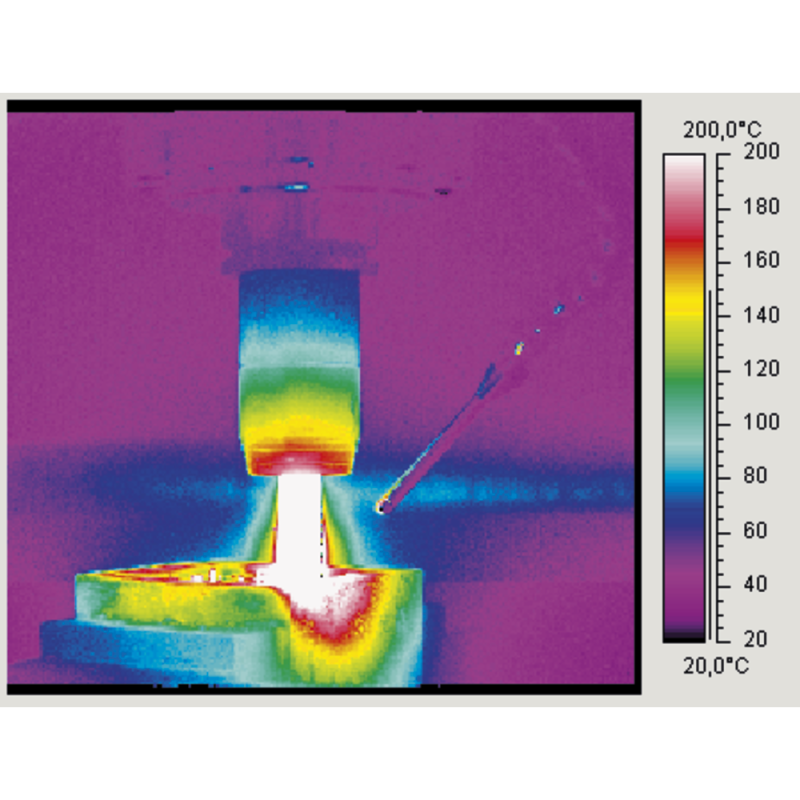

Insensitive to temperature fluctuations up to 200 °C
Leak-proof up to 80 bar, cooling possible along the cutting edge
Extremely high system concentricity and precision of 3 µm achieved with a 2 µm GER-HP collet
Supplied without clamping nuts or a chuck key, please order separately!
Slim and conical versions available on request
