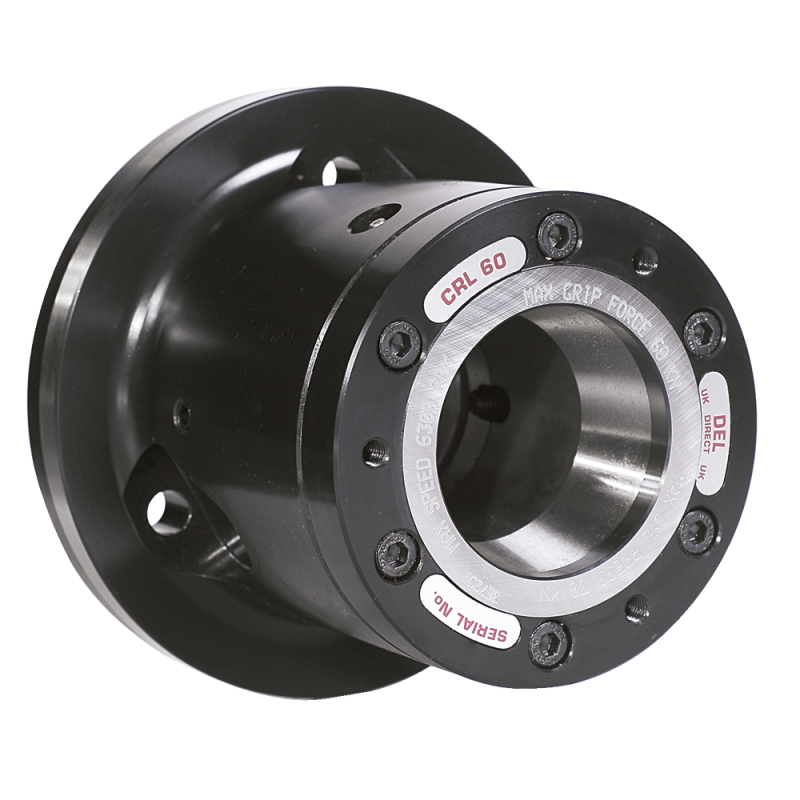

Collet chuck, power-operated CRL-60/A6 (185E), short taper 6

Name: Collet chuck, power-operated CRL-60/A6 (185E), short taper 6
Brand: KITAGAWA
SKU: 4150300006
Availability: OutOfStock

Производитель: KITAGAWA Модель: 43664

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

Connection thread (for tie rod):max. M70 x 1.5

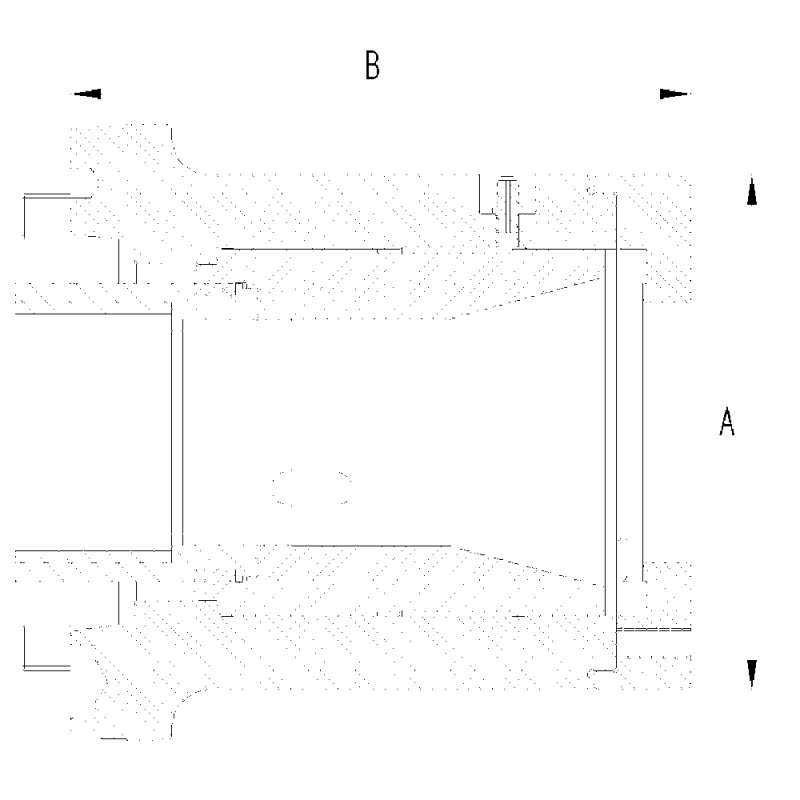

D:138 mm

Design:Short taper

Designation:CRL-60/6

L:160 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Collet chuck, power-operated CRL-60/A6 (185E), short taper 6

0.0 грн.

Описание

CRL power-operated collet chuck

All-steel design, hardened and precision-ground
For multi-range and steel collets in accordance with DIN 6343, 173 E or 185 E
2 sizes: up to material O 42 mm, or up to material O 60 mm
Other sizes for a maximum material O 36 mm, 54 mm and 66 mm are available on request
Equipped for use with a length stop, but only in combination with multi-range collets.
For bar work on CNC lathes
Especially for high speeds and true-running accuracies

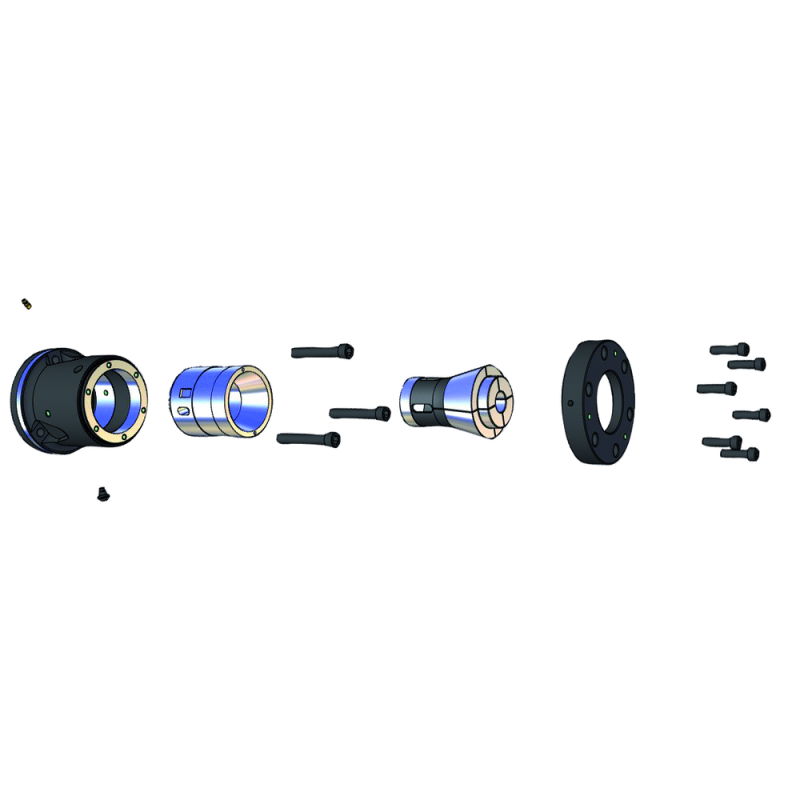

Supplied with chuck fastening screws and thrust collar (unthreaded)
Without collets
Threaded drawable nuts available on request
