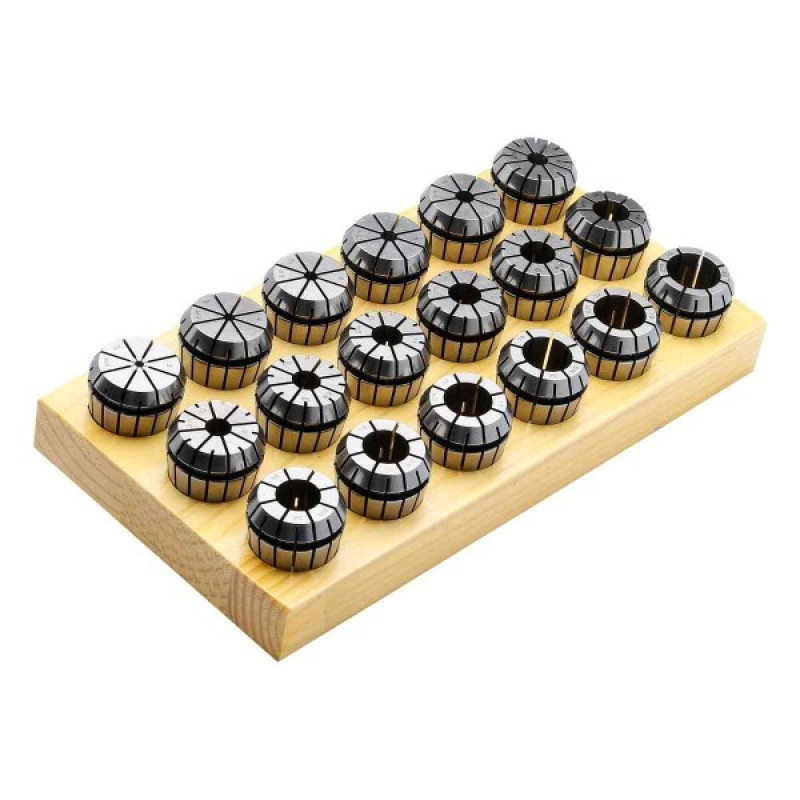

Collets set ER32 | 470 EH | 15-part kit DIN 6499 B (ISO 15488 B) in wooden socket

Name: Collets set ER32 | 470 EH | 15-part kit DIN 6499 B (ISO 15488 B) in wooden socket
Brand: Kemmler GmbH
SKU: 470EH-S
Availability: OutOfStock

Производитель: Kemmler GmbH Модель: 159951

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Collets set ER32 | 470 EH | 15-part kit DIN 6499 B (ISO 15488 B) in wooden socket

Нет в наличии

0.0 грн.

ADINTMS:ER collet ISO10897 (DIN6388) - ER32

ADINTWS:Cylindrical clamping - metric

CP:120 bar

OAH:30

OAL:190

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Collets set ER32 | 470 EH | 15-part kit DIN 6499 B (ISO 15488 B) in wooden socket

0.0 грн.

Описание

- For high pressure cooling 120 bar- Seal for ICConsisting of collets:Ø3-4-5-6-7-8-9-10-11-12-14-15-16-18-20

Application:
Collets sealed for high pressure cooling 120 bar with IC DIN 6499 B (ISO 15488 B) ER system

Note:
Only nominal size d can be clamped (applicable up to 120 bar). In order to achieve an optimal sealing the tool must be clamped on the complete length of the ground drill of the collet.

Характеристики

ADINTMS

ER collet ISO10897 (DIN6388) - ER32

ADINTWS

Cylindrical clamping - metric

120 bar

OAH

OAL

190

OAW

150

Type
