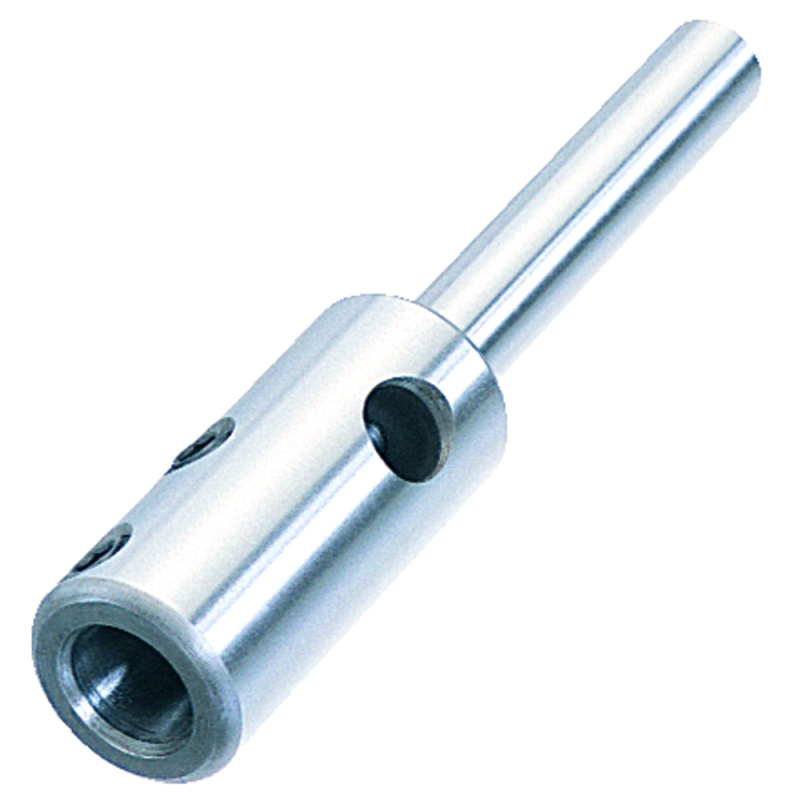

Combination counterbore holder model 0A shank 10x50mm (counters. range 7-16.5mm)

Name: Combination counterbore holder model 0A shank 10x50mm (counters. range 7-16.5mm)
Brand: GRANLUND
SKU: 1500050001
Availability: OutOfStock

Производитель: GRANLUND Модель: 42796

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Combination counterbore holder model 0A shank 10x50mm (counters. range 7-16.5mm)

Нет в наличии

0.0 грн.

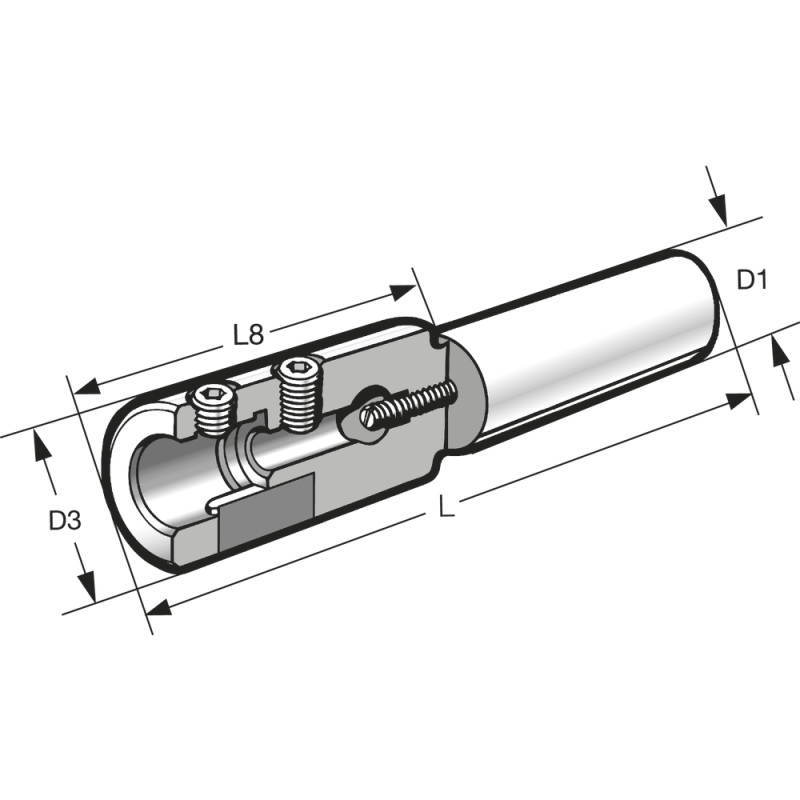

a:42 mm

Countersink area:7-16.5 mm

D min./max.:7-16.5 mm

D1:10x50 mm

D3:18 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Combination counterbore holder model 0A shank 10x50mm (counters. range 7-16.5mm)

0.0 грн.

Описание

Combination counterbores

Just 3 holder sizes required to cover a countersink range of 7 - 66 mm (on request up to 84 mm).
Any countersink and pilot pin combination possible within the same holder size.
Tight bore and shank tolerances ensure a high degree of true-running accuracy.
Countersink and pin are fastened quickly and securely with just one screw. An additional stud safety catch prevents countersinks from twisting.
Combine elements to produce countersinks for DIN screws and to machine stepped bores or non-standard countersinks
4 cutting edges

Combination counterbore holder

Характеристики

42 mm

Countersink area

7-16.5 mm

D min./max.

7-16.5 mm

10x50 mm

18 mm

Hole H7

10 mm

92 mm
