Combination counterbore holder model 0P shank MK2 (countersink range M4-M8)

Name: Combination counterbore holder model 0P shank MK2 (countersink range M4-M8)
Brand: GRANLUND
SKU: 1510010001
Availability: OutOfStock

Производитель: GRANLUND Модель: 42818

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Combination counterbore holder model 0P shank MK2 (countersink range M4-M8)

Нет в наличии

0.0 грн.

Coating:uncoated

Contents:8.0mm | 9.0mm | 10.0mm | 11.0mm | 12.0mm | 13

Contents, pilot pin:4.5 / 5.0 / 5.5 / 6.0 / 6.5 / 6.6 / 7.0 / 7.5 / 8.0 / 8.5 /

Contents, piloted counterbore:8.0 / 9.0 / 10.0 / 11.0 / 12.0 / 13.0 / 14.0 / 15.0

Cutting data:Cutting angle information - no

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Combination counterbore holder model 0P shank MK2 (countersink range M4-M8)

0.0 грн.

Описание

Combination counterbores

Just 3 holder sizes required to cover a countersink range of 7 - 66 mm (on request up to 84 mm).
Any countersink and pilot pin combination possible within the same holder size.
Tight bore and shank tolerances ensure a high degree of true-running accuracy.
Countersink and pin are fastened quickly and securely with just one screw. An additional stud safety catch prevents countersinks from twisting.
Combine elements to produce countersinks for DIN screws and to machine stepped bores or non-standard countersinks
4 cutting edges

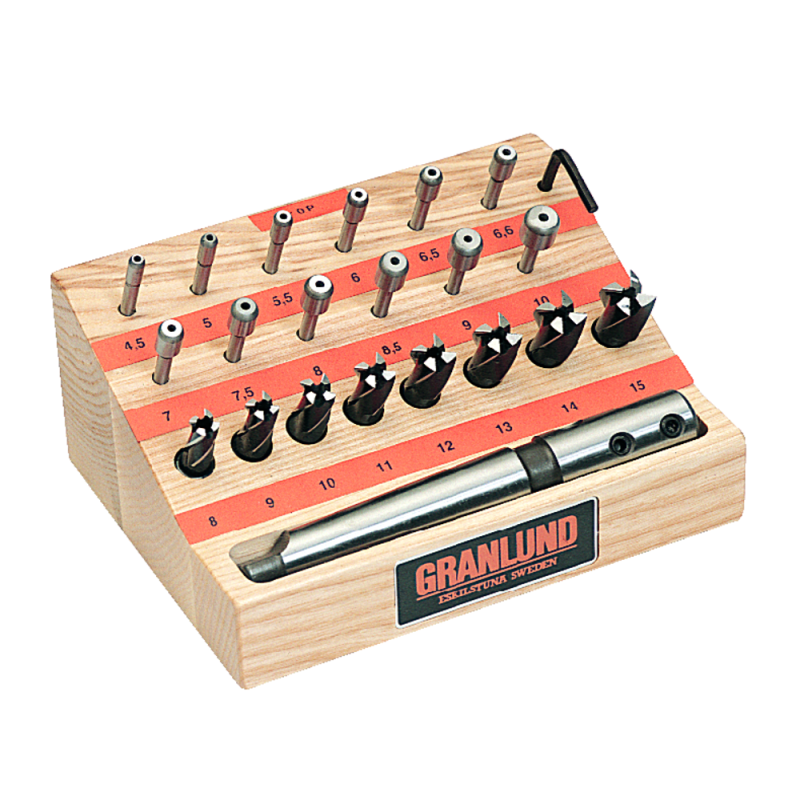

Combination counterbore sets
