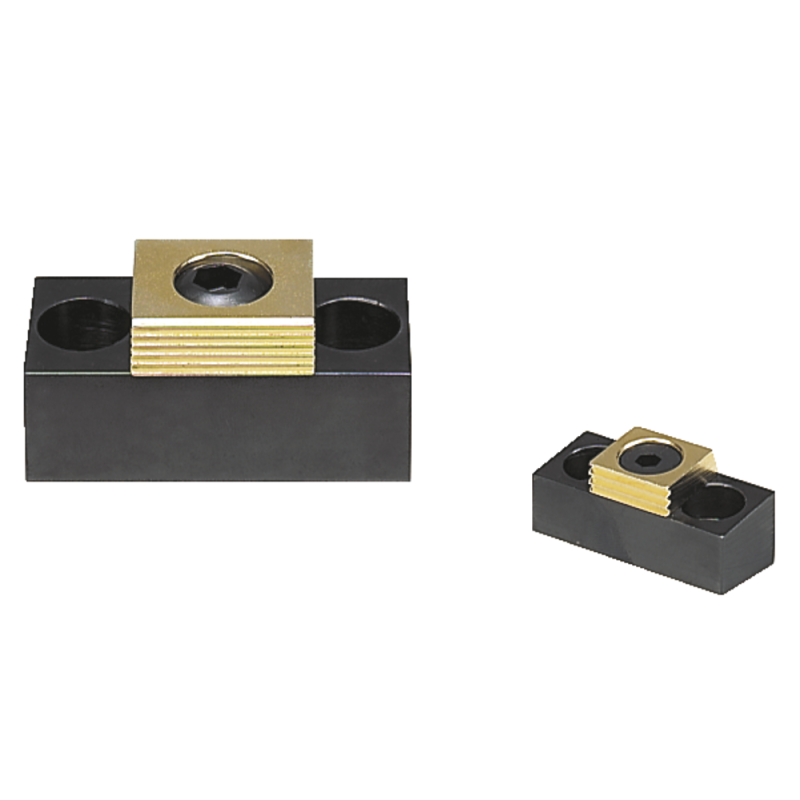

Combination pull-down clamping claw 43.2 x 19mm

Name: Combination pull-down clamping claw 43.2 x 19mm
Brand: MITEEBITE
SKU: 4750510008
Availability: OutOfStock

Производитель: MITEEBITE Модель: 43552

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

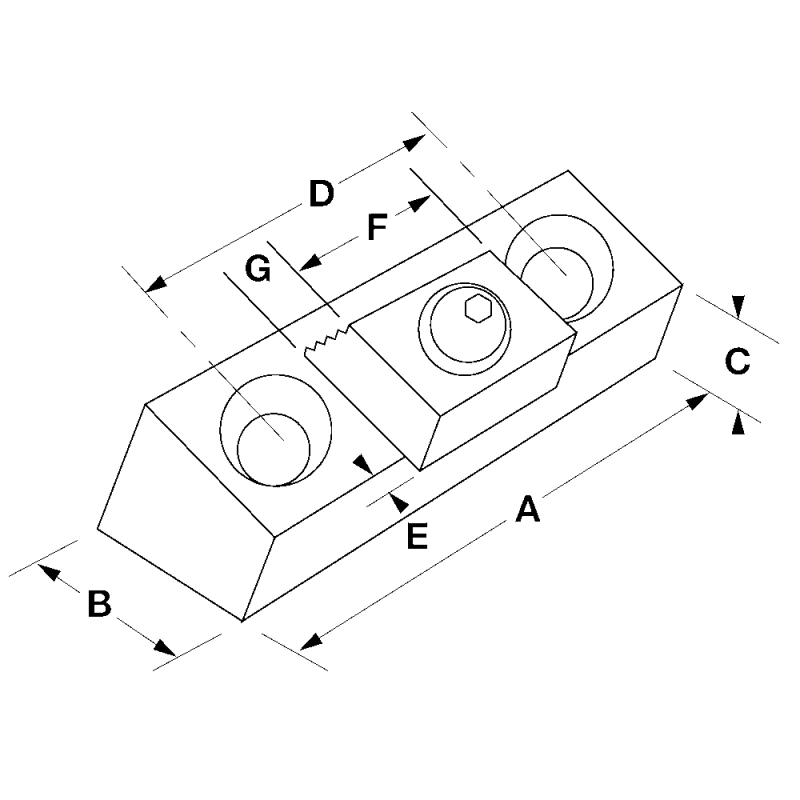

a:43.2 mm

Attachment screw:M8 x 16

b:19 mm

C:12.7 mm

D:25.4 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Combination pull-down clamping claw 43.2 x 19mm

0.0 грн.

Описание

Combination pull-down claw

The pull-down effect ensures that the workpiece is secured to the support
The front side is used for clamping, the rear side can be used as a stop
Space-saving multi-clamping
Clamping washer with toothed surface for raw parts and smooth surface for machined parts
Preferably for mounting in a slot of width B (+0.05 mm)
The engagement height of the clamping washer can be changed by the depth of the slot
Body and clamping washer are case-hardened
Supplied with fastening screws
