Counterbore HSS-E DIN373 through-holes, (M3) fine 6.5x3.2mm

Name: Counterbore HSS-E DIN373 through-holes, (M3) fine 6.5x3.2mm
Brand: ATORN
SKU: 1505060001
Availability: OutOfStock

Производитель: ATORN Модель: 42814

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

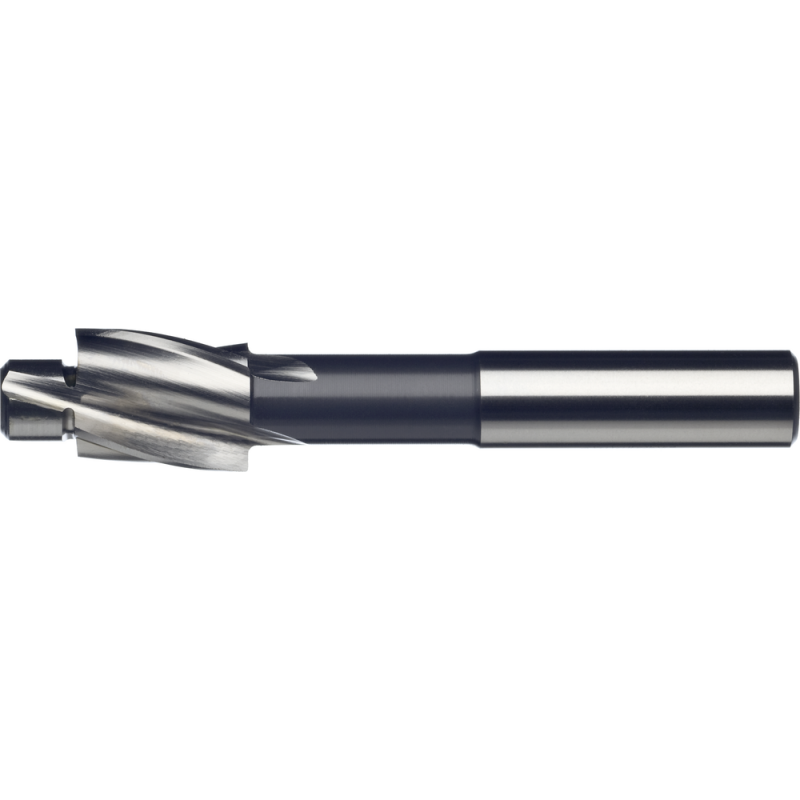

Counterbore HSS-E DIN373 through-holes, (M3) fine 6.5x3.2mm

Нет в наличии

0.0 грн.

Cantilever length:39.2 mm

Coating:uncoated

Conical transition neck contour (xsg):35.7 mm

Connection diameter:4.6 mm

Coolant supply:External

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Counterbore HSS-E DIN373 through-holes, (M3) fine 6.5x3.2mm

0.0 грн.

Описание

Counterbores

3 cutting edges
Spiral-fluted
With straight shank
Fixed pilot pin
For countersinks in accordance with DIN 74 part 2, type H, J, K
For screws according to DIN 912, DIN 6912, DIN 6984 and DIN 84
Cutting material: HSS-E ; HSS-E

With through-hole pin, fine grade

Cutting material: HSS-E , HSS-E

Usage characteristics

aluminum < 8% Si
aluminum >= 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GG/GTS
cast iron GGG
plastic
austenitic stainless steel
stainless steel ferrit./martens.
steel < 1000 N/mm2
steel < 1400 N/mm2
steel < 700 N/mm2
titanium alloys

Характеристики

Totally stainless steel suitability

Характеристики

Cantilever length

39.2 mm

Coating

uncoated

Conical transition neck contour (xsg)

35.7 mm

Connection diameter

4.6 mm

Coolant supply

External

Countersink angle

180 °

Countersink diameter

6.5 mm

Countersink diameter tolerance

Cutting data

Cutting angle information - no

Cutting material

HSSE

6.5 mm

5 mm

3.2 mm

Design

HSS-E

DIN

373

Effective length

14.0 mm

f steel 700

0.08 mm/rev

fitness hartl total

Flute length

21.2 mm

for thread

71 mm

Number of cutting edges

3 pc.

Packaging unit

Shank length

31.5 mm

Shank length calculated

35.3 mm

Suitability not total iron

Suitability titanium/nickel/super total

Surface

Uncoated

Swirl angle

25°

Tenon length

3.8 mm

Tolerance journal diameter

Tolerance of shank diameter

Tool holding device

HA parallel shank

3 pc.
