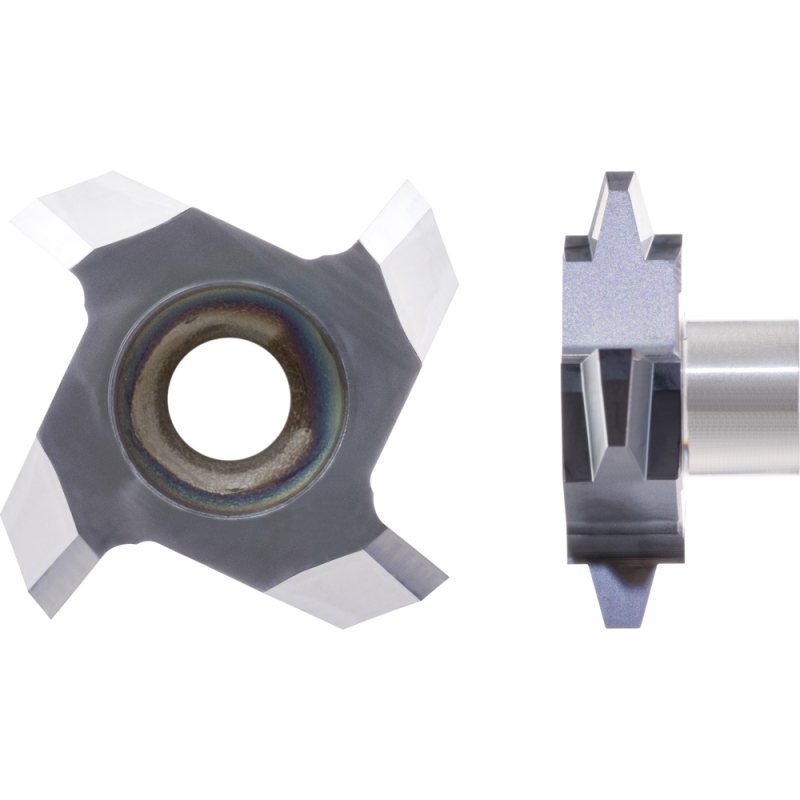

Cutting insert C25 I 6 TR trapezoid (insert size 25mm) AMT7

Name: Cutting insert C25 I 6 TR trapezoid (insert size 25mm) AMT7
Brand: ATORN
SKU: 2661052501
Availability: OutOfStock

Производитель: ATORN Модель: 37294

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Cutting insert C25 I 6 TR trapezoid (insert size 25mm) AMT7

Нет в наличии

0.0 грн.

Cutting speed (aluminum long) suitability:1

Cutting speed (aluminum long) Vc:180.00 m/min

Cutting speed (aluminum short) suitability:1

Cutting speed (aluminum short) Vc:120.00 m/min

Cutting speed (brass long):160.00 m/min

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Cutting insert C25 I 6 TR trapezoid (insert size 25mm) AMT7

0.0 грн.

Описание

Cutting inserts for vertical thread milling work CMT

Type C10, from O 11 mm bore
Solid carbide cutting inserts in quality grade AMT7 for all materials up to 55 HRC
Solid carbide cutting inserts in quality grade AMT8, extremely heat-resistant, for materials up to 62 HRC
For partial profile 55 and 60°, full profile ISO, UN, G55°, NPT, ACME, RD DIN405 and trapezoidal threading

Trapezoid

DIN 103
For female threads

Характеристики

Cutting speed (casting) suitability

Cutting speed (graphite/CFK) suitability

Cutting speed (VA from) suitability

Totally stainless steel suitability

Характеристики

Cutting speed (aluminum long) suitability

Cutting speed (aluminum long) Vc

180.00 m/min

Cutting speed (aluminum short) suitability

Cutting speed (aluminum short) Vc

120.00 m/min

Cutting speed (brass long)

160.00 m/min

Cutting speed (brass short) suitability

Cutting speed (brass short) Vc

100.00 m/min

Cutting speed (bronze long)

140.00 m/min

Cutting speed (bronze short)

80.00 m/min

Cutting speed (casting) Vc

60.00 m/min

Cutting speed (hard 55) suitability

Cutting speed (hard 55) Vc

60.00 m/min

Cutting speed (hard 65) suitability

Cutting speed (nickel) suitability

30.00 m/min

Cutting speed (nickel) Vc

Cutting speed (plastic)

140.00 m/min

Cutting speed (steel 1000) suitability

Cutting speed (steel 1000) Vc

80.00 m/min

Cutting speed (steel 1300) suitability

Cutting speed (steel 1300) Vc

60.00 m/min

Cutting speed (steel 700) suitability

Cutting speed (steel 700) Vc

100.00 m/min

Cutting speed (super) suitability

Cutting speed (super) Vc

30.00 m/min

Cutting speed (titanium) suitability

Cutting speed (titanium) Vc

30.00 m/min

Cutting speed (VA from) Vc

60.00 m/min

Cutting speed (VA mar) suitability

Cutting speed (VA mar) Vc

80.00 m/min

25 mm

Design

AMT7

fitness hartl total

fz steel 1300

0.18 mm

Indexable insert type

A25

ISO H

ISO K

ISO M

ISO N

ISO P

ISO S

Model

C25 I 6 TR

Number of teeth

1 pc.

Packaging unit

Pitch

6 mm

Suitability not total iron

Suitability titanium/nickel/super total

Suitable for diameters min.

36 mm

suitable for holder

A10 | A11 | A16 | A17
