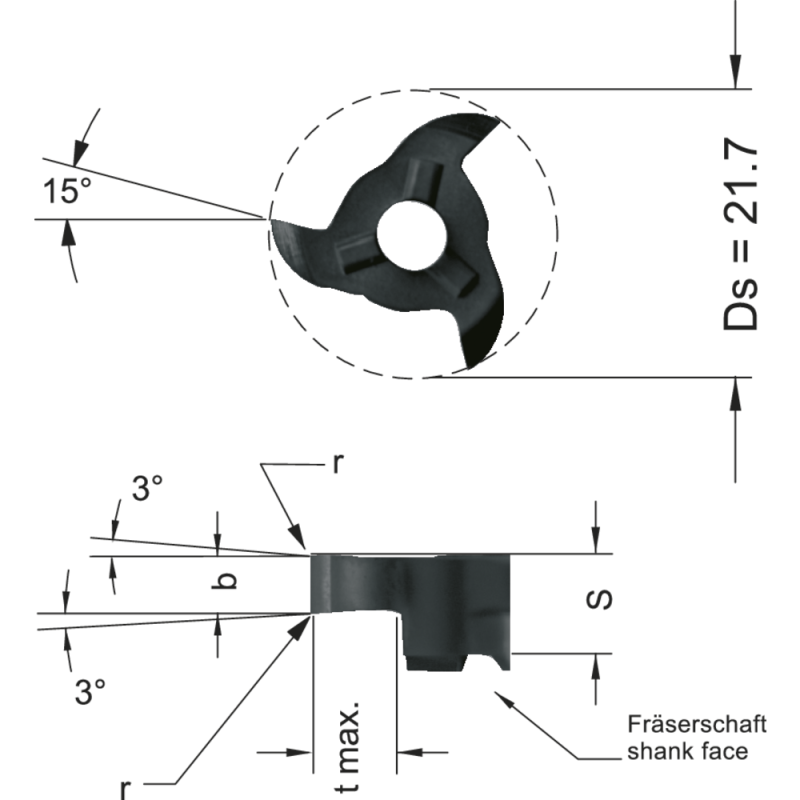

Cutting insert Z22.0150.02 groove milling b=1.50mm tmax=4.5mm HC8620

• Type ZH 22 from bore O 22 mm
• Solid carbide inserts, quality grade HC 8620
• Solid carbide milling cutter shank with internal coolant supply
• Steel milling cutter shank with internal coolant supply
• 3-rib toothing
• For machining grooves, circlip grooves, ISO metric threads, Whitworth pipe threads and full radius grooves, as well as for chamfering and deburring

Usage characteristics

• aluminum < 8% Si
• aluminum >= 8 % Si
• brass short
• cast iron GG/GTS
• cast iron GGG
• hardened steel <= 55 HRC
• austenitic stainless steel
• stainless steel ferrit./martens.
• steel < 1000 N/mm2
• steel < 1400 N/mm2
• steel < 700 N/mm2
• superalloys Fe/NiCo based < 30 HRC
• titanium alloys
