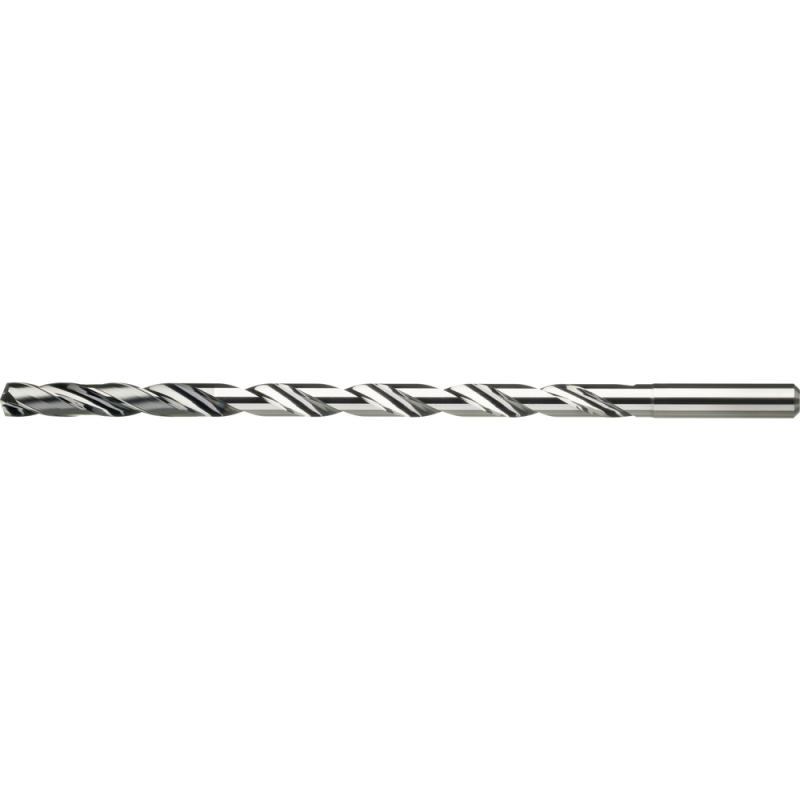

Deep-hole drill bit SC 16xD 10.8 mm, IC, HA, TiAlNplus HPC

Name: Deep-hole drill bit SC 16xD 10.8 mm, IC, HA, TiAlNplus HPC
Brand: ATORN
SKU: 1115741080
Availability: OutOfStock

Производитель: ATORN Модель: 60407

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Deep-hole drill bit SC 16xD 10.8 mm, IC, HA, TiAlNplus HPC

Нет в наличии

0.0 грн.

A dimension:2.24 mm

Angle of the tip - S:135 °

Cantilever length:192 mm

Coating:TiAlN plus

Conical transition neck contour (xsg):192 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Deep-hole drill bit SC 16xD 10.8 mm, IC, HA, TiAlNplus HPC

0.0 грн.

Описание

Solid carbide deep-hole drill bit TiAlNplus HPC 16D

High-performance deep-hole drill bit with 4 guide chamfers
Cutting material: ultra-superfine grain solid carbide TiAlNplus
Excellent all-round properties and precise cutting behavior with high cutting data
Unique, extremely tough, smooth, temperature-resistant and close contour TiAlN coating
Cutting-edge preparation minimizes micro-nicks on the tool cutting edge
Range is coordinated by angle and diameter

Usage characteristics

aluminum < 8% Si
aluminum >= 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
austenitic stainless steel
stainless steel ferrit./martens.
steel < 1000 N/mm2
steel < 1400 N/mm2
steel < 700 N/mm2
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based >= 30 HRc
titanium alloys

Характеристики

Feed f steel

0.15 mm/rev

Totally stainless steel suitability

Характеристики

A dimension

2.24 mm

Angle of the tip - S

135 °

Cantilever length

192 mm

Coating

TiAlN plus

Conical transition neck contour (xsg)

192 mm

Coolant supply

Internal

Cutting data

Cutting angle information - yes

Cutting diameter max.

12.0 mm

Cutting diameter min.

3.0 mm

Cutting diameter min./max.

3.0-12.0 mm

Cutting material

Solid carbide

Cutting speed (brass long)

160 m/min

Cutting speed (bronze long)

130 m/min

Cutting speed (bronze short)

160 m/min

Cutting speed (plastic)

10.80 mm

12 mm

DIN

0 - not applicable

Effective length

174 mm

fitness hartl total

240 mm

190 mm

Max. drilling depth (D)

16xD

Neck length

190 mm

Packaging unit

135 °

Section shape

Split point

Shank length

48 mm

Shank length calculated

48 mm

Suitability not total iron

Suitability titanium/nickel/super total

Tolerance of cutting edge diameter

Tolerance of shank diameter

Tool holding device

HA parallel shank

Twist angle

30°

Type

HPC UNI

2 pc.
