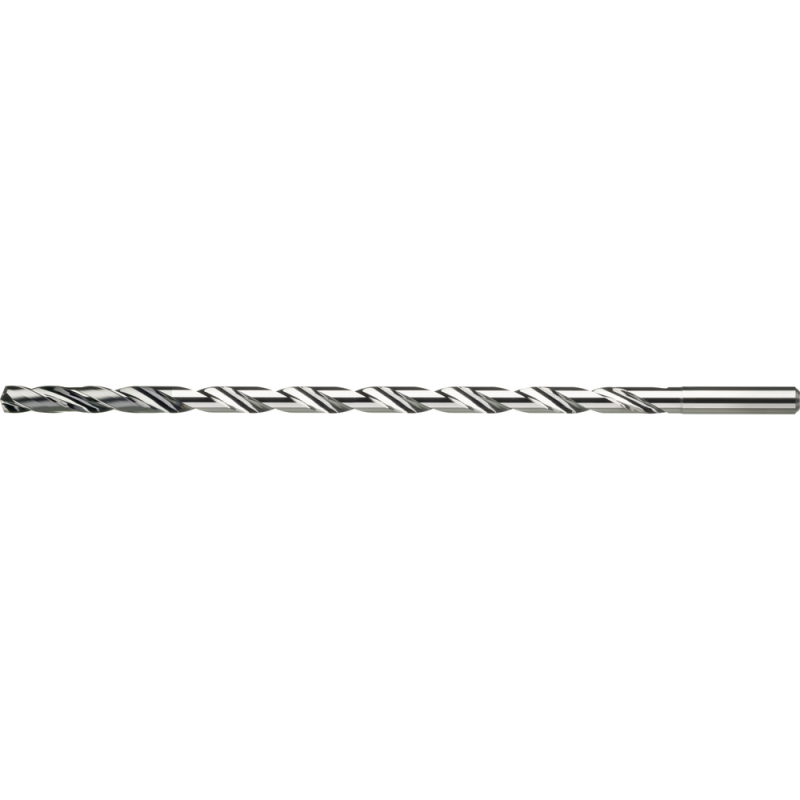

Deep-hole drill bit SC 20xD 6.5 mm, IC, HA, TiAlNplus HPC

Name: Deep-hole drill bit SC 20xD 6.5 mm, IC, HA, TiAlNplus HPC
Brand: ATORN
SKU: 1115750650
Availability: OutOfStock

Производитель: ATORN Модель: 60507

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Deep-hole drill bit SC 20xD 6.5 mm, IC, HA, TiAlNplus HPC

Нет в наличии

0.0 грн.

A dimension:1.35 mm

Cantilever length:162 mm

Coating:TiAlN plus

Conical transition neck contour (xsg):162 mm

Coolant design:Internal axial

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Deep-hole drill bit SC 20xD 6.5 mm, IC, HA, TiAlNplus HPC

0.0 грн.

Описание

Solid carbide deep-hole drill bit TiAlNplus HPC 20D

High-performance deep-hole drill bit with 4 guide chamfers
Cutting material: ultra-superfine grain solid carbide TiAlNplus
Excellent all-round properties and precise cutting behavior with high cutting data
Unique, extremely tough, smooth, temperature-resistant and close contour TiAlN coating
Cutting-edge preparation minimizes micro-nicks on the tool cutting edge
Range is coordinated by angle and diameter

Usage characteristics

aluminum < 8% Si
aluminum >= 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
austenitic stainless steel
stainless steel ferrit./martens.
steel < 1000 N/mm2
steel < 1400 N/mm2
steel < 700 N/mm2
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based >= 30 HRc
titanium alloys

Характеристики

Feed f steel

0.12 mm/rev

Totally stainless steel suitability

Характеристики

A dimension

1.35 mm

Cantilever length

162 mm

Coating

TiAlN plus

Conical transition neck contour (xsg)

162 mm

Coolant design

Internal axial

Cutting data

Cutting angle information - yes

Cutting diameter max.

12.0 mm

Cutting diameter min.

2.0 mm

Cutting diameter min./max.

2.0-12.0 mm

Cutting Diameter Tolerance

Cutting material

Solid carbide

Cutting speed (brass long)

160 m/min

Cutting speed (bronze long)

130 m/min

Cutting speed (bronze short)

160 m/min

Cutting speed (plastic)

6.50 mm

D H7

6.5 mm

8 mm

D1 h6

8 mm

Drilling depth

20xD

Drilling depth max. (D)

20xD

Effective length

150 mm

fitness hartl total

210 mm

160 mm

Neck length

160 mm

Packaging unit

Point angle

Point angle 135°

Section shape

Split point

Shank

Straight, DIN 6535 HA

Shank diameter tolerance

Shank length

48 mm

Shank length calculated

48 mm

Spiral angle

30° RH helix angle

Standard constructional dimensions DIN

Non-DIN

Suitability not total iron

Suitability titanium/nickel/super total

Surface

TiAlN

Swirl angle

30°

Type

HPC UNI
