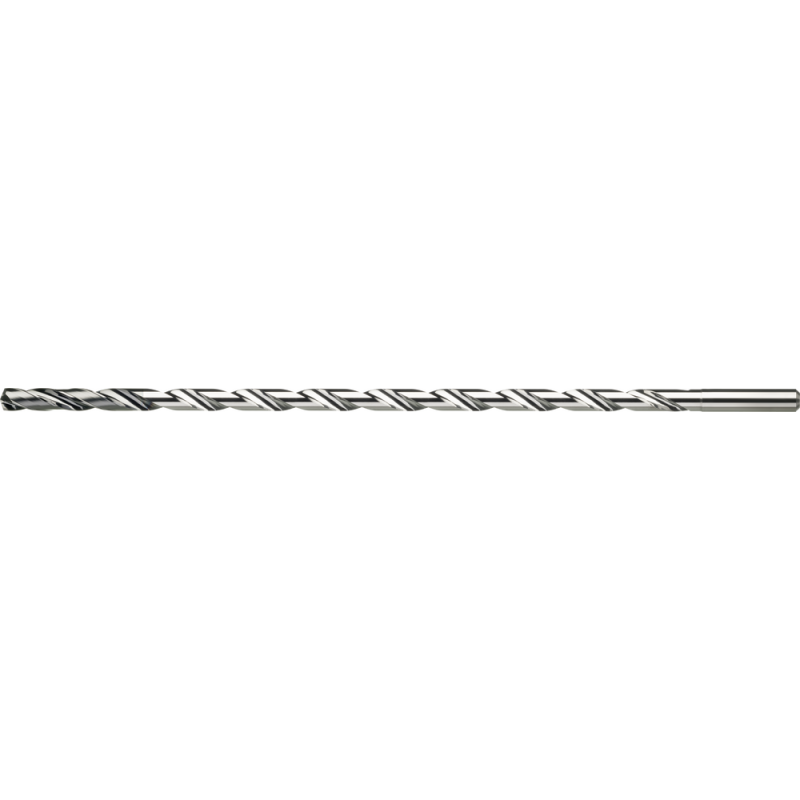

Deep-hole drill bit SC 25xD 3 mm, IC, HA, TiAlNplus HPC

Name: Deep-hole drill bit SC 25xD 3 mm, IC, HA, TiAlNplus HPC
Brand: ATORN
SKU: 1115760300
Availability: OutOfStock

Производитель: ATORN Модель: 60412

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Deep-hole drill bit SC 25xD 3 mm, IC, HA, TiAlNplus HPC

Нет в наличии

0.0 грн.

A dimension:0.62 mm

Cantilever length:100 mm

Coating:TiAlN plus

Conical transition neck contour (xsg):100 mm

Coolant design:Internal axial

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Deep-hole drill bit SC 25xD 3 mm, IC, HA, TiAlNplus HPC

0.0 грн.

Описание

Solid carbide deep-hole drill bit TiAlNplus HPC 25D

High-performance deep-hole drill bit with 4 guide chamfers
Cutting material: ultra-superfine grain solid carbide TiAlNplus
Excellent all-round properties and precise cutting behavior with high cutting data
Unique, extremely tough, smooth, temperature-resistant and close contour TiAlN coating
Cutting-edge preparation minimizes micro-nicks on the tool cutting edge
Range is coordinated by angle and diameter

Usage characteristics

aluminum < 8% Si
aluminum >= 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
austenitic stainless steel
stainless steel ferrit./martens.
steel < 1000 N/mm2
steel < 1400 N/mm2
steel < 700 N/mm2
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based >= 30 HRc
titanium alloys

Характеристики

Feed f steel

0.08 mm/rev

Totally stainless steel suitability

Характеристики

A dimension

0.62 mm

Cantilever length

100 mm

Coating

TiAlN plus

Conical transition neck contour (xsg)

100 mm

Coolant design

Internal axial

Coolant supply

Internal

Cutting data

Cutting angle information - yes

Cutting diameter max.

12.0 mm

Cutting diameter min.

3.0 mm

Cutting diameter min./max.

3.0-12.0 mm

Cutting material

Solid carbide

Cutting speed (brass long)

140 m/min

Cutting speed (bronze long)

120 m/min

Cutting speed (bronze short)

140 m/min

Cutting speed (plastic)

3.00 mm

D H7

3 mm

6 mm

D1 h6

6 mm

DIN

0 - not applicable

Drilling depth

25xD

Effective length

93 mm

fitness hartl total

135 mm

98 mm

Max. drilling depth (D)

25xD

Neck length

98 mm

Packaging unit

Point angle

Point angle 135°

135 °

Section shape

Split point

Shank

Straight, DIN 6535 HA

Shank length

35 mm

Shank length calculated

35 mm

Spiral angle

30° RH helix angle

Standard constructional dimensions DIN

Non-DIN

Suitability not total iron

Suitability titanium/nickel/super total

Surface

TiAlN

Tolerance of cutting edge diameter

Tolerance of shank diameter

Tool holding device

Cylindrical shank HA

Twist angle

30°

Type

HPC UNI
