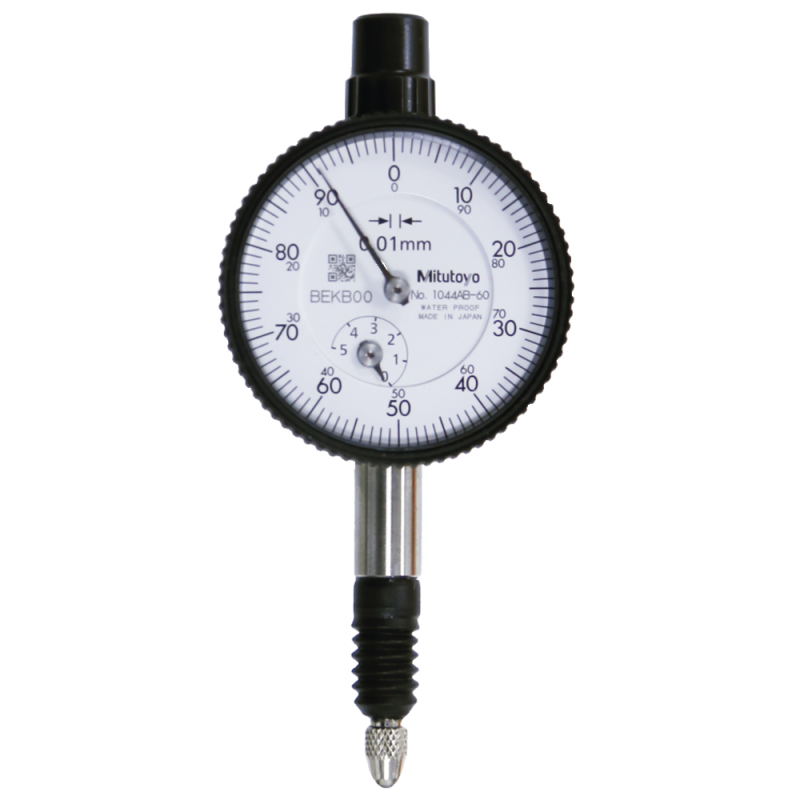

Dial indicator 5mm (0.01mm) outer ring - 40mm, IP63

Name: Dial indicator 5mm (0.01mm) outer ring - 40mm, IP63
Brand: MITUTOYO
SKU: 5110151301
Availability: OutOfStock

Производитель: MITUTOYO Модель: 26874

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Dial indicator 5mm (0.01mm) outer ring - 40mm, IP63

Нет в наличии

0.0 грн.

Accuracy fe:12 µm

Attachment eye:No

DIN:Company standard

Division:0.01 mm

Error limit:0.012 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Dial indicator 5mm (0.01mm) outer ring - 40mm, IP63

0.0 грн.

Описание

Dial indicators

Reading 0.01 mm or 0.001 mm
Housing made of oil-resistant plastic
Completely without through-holes for improved dirt protection
Back cover: flat or with mounting lug
Rotating outer ring for zero setting, clamping by means of clamping screw
Two adjustable tolerance marks
Surface-hardened watch glass
Damped end point
Robust spindle, O 4.8 mm
New clamping shank for easy clamping across the entire length
Probe tip thread M2.5
Clamping shank O 8 mm
Supplied in molded packaging

Dial indicators with IP protection

Rotating external ring for zero setting
Surface-hardened watch glass, new coating reduces reflections and scratches,
dirt can be removed easily
Robust spindle O 4.8 mm
Special accessories tolerance mark clips for dial indicators up to housing O 40 mm no. 517010 0010, case O 57 mm no. 517010 0011

Dial gauges with IP protection

Характеристики

Measurement route by rotation of indicator

1 mm

Measuring travel of one pointer revolution

1 mm

Характеристики

Accuracy fe

12 µm

Attachment eye

DIN

Company standard

Division

0.01 mm

Error limit

0.012 mm

External ring Ø

40 mm

Housing outer diameter

40 mm

Max. length measuring range

5 mm

Measurement range

5 mm

Measuring force max.

2 N

Packaging / Shipment

Manufacturer's test certificate

Packaging unit

Protection type

IP63

Scale value

0.01 mm

Shock-proof

Standard constructional dimensions DIN

Non-DIN
