Digital bore gauge w. 3-point contact 6-12mm (0.001mm) repl. meas. heads

Name: Digital bore gauge w. 3-point contact 6-12mm (0.001mm) repl. meas. heads
Brand: MITUTOYO
SKU: 5083160012
Availability: OutOfStock

Производитель: MITUTOYO Модель: 26486

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Digital bore gauge w. 3-point contact 6-12mm (0.001mm) repl. meas. heads

Нет в наличии

0.0 грн.

Contents:1 micrometer, 3 measuring heads 6-8 / 8-10 / 10-12 mm, 2 adjusting rings Ø 8 / 1

Data transmission type:DIGIMATIC/USB

Digit increment:0.001 mm

DIN:863/4

Display:Digital

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Digital bore gauge w. 3-point contact 6-12mm (0.001mm) repl. meas. heads

0.0 грн.

Описание

Digital inside micrometers with three-point contacts HOLTEST

With ratchet
Readings via LCD display with 7.5 mm high digits
Casing particularly resistant to oils and chemicals
Activates automatically when spindle moves
Measuring faces: up to size 0012, titanium-coated carbide; from size 0016, titanium-coated measuring pins made from hardened steel. Contact point and taper: Carbide
Functions: Pre-set for two values (PRESET), zeroing/absolute (ZERO/ABS), hold value (HOLD), automatic switch-off, battery check

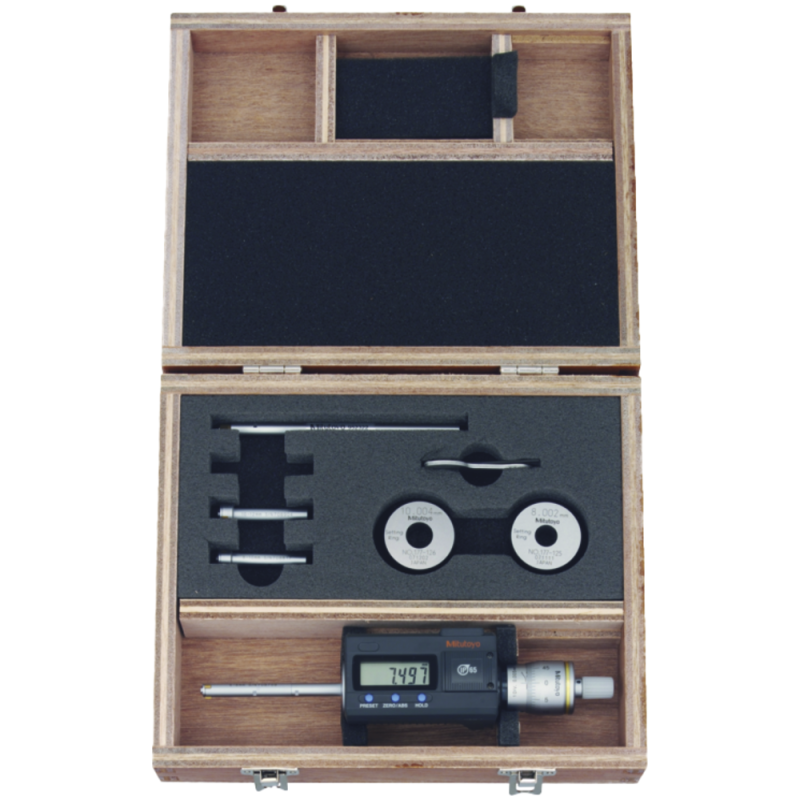

Supplied in a case with SR44 battery (no. 500534 0001), key and factory certificate
Optional accessories: Digimatic cable type B, no. 563100 0011 (1 m), no. 563100 0012 (2 m), USB cable type B-USB, no. 563110 0002; ring gauges, no. 540135....; extensions, no. 508701....

Sets with replaceable measuring heads

With ring gauges, extension, batteries and wrench
In wooden box with factory certificate for the three-point measuring heads
Calibration including ring gauges, reduced testing

Характеристики

Contents

1 micrometer, 3 measuring heads 6-8 / 8-10 / 10-12 mm, 2 adjusting rings Ø 8 / 1

Data transmission type

DIGIMATIC/USB

Digit increment

0.001 mm

DIN

863/4

Display

Digital

Extensions

100 mm

Included in delivery

Sturdy box

Measurement chuck

Spindle pitch 0.5 mm

Measurement range

6-12 mm

Measuring heads

6-8 / 8-10 / 10-12 mm

Measuring spindle increments

0.5 mm

Output data format

Digimatic

Packaging unit

1Alternative itemsView alternative items

Protection type

IP65

Reading

0.001 mm readings

Ring gauges

8 / 10 mm

Standard constructional dimensions DIN

DIN 863/4
