Digital dial indicator 25mm (0.01mm)

Name: Digital dial indicator 25mm (0.01mm)
Brand: ATORN
SKU: 5120640025
Availability: OutOfStock

Производитель: ATORN Модель: 37619

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

Battery weight:0.003 kg

Battery/battery voltage:3 V

Calibration group:CE

Data cable type:C1 | C2

Data transmission type:RS232C/USB

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Digital dial indicator 25mm (0.01mm)

0.0 грн.

Описание

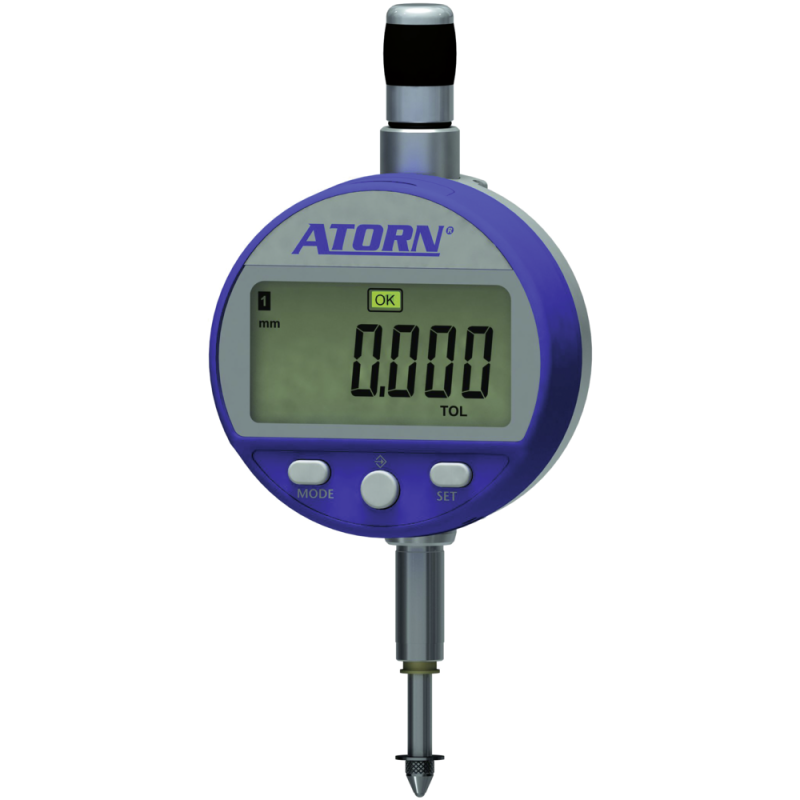

Digital dial indicator for run-out measurements

Inductive measuring system
Aluminum casing with plastic front plate, O 60 mm, coolant-proof
Easily readable LCD display with 11 mm high digits
Front plate can be rotated through 270°
Energy save mode and automatic reactivation
Colored LEDs for tolerance evaluation

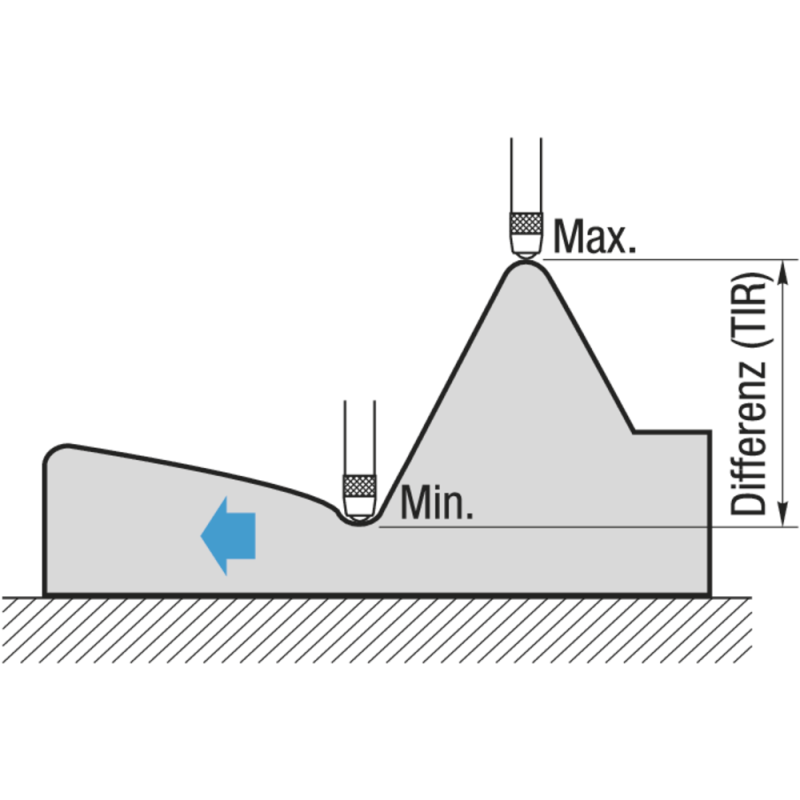

Max. / min. / max-min for run-out measurements
0.001mm version, can be switched to 0.01mm
PROXIMITY data output
Clamping shank O 8 mm
Contact point thread M2.5
Functions:
mm/inch toggle option
Preset (user-defined values)
Reverse counting direction
Switch between ref. 1 and ref. 2 (ABS/INC)
Hold
Supplied with CR2032 battery, no. 548079 6032
Optional accessories: Data cable: PROXIMITY-USB, no. 500700 9966 or PROXIMITY-RS, no. 500700 9965

Характеристики

Battery weight

0.003 kg

Battery/battery voltage

3 V

Calibration group

Data cable type

C1 | C2

Data transmission type

RS232C/USB

Digit increment

0.01 mm

DIN

Company standard

Display

Digital

Error limit

10 µm

Function

Absolute function

Included in delivery

Sturdy box

Measurement range

25 mm

Measuring force max.

1.15 N

Measuring force min.

0.65 N

Measuring functions

Run-out measurement

Min./max. measurement force

0.65-1.15 N

Number of batteries

1 pc.

Packaging unit

Protection type

IP51

Rechargeable battery/battery capacity

200 mAh

Rechargeable battery/battery designation

3V CR2032 lithium

Repetition precision

2 µm

WEEE (take-back of used electrical appliances)

With mm / inch switching

Yes
