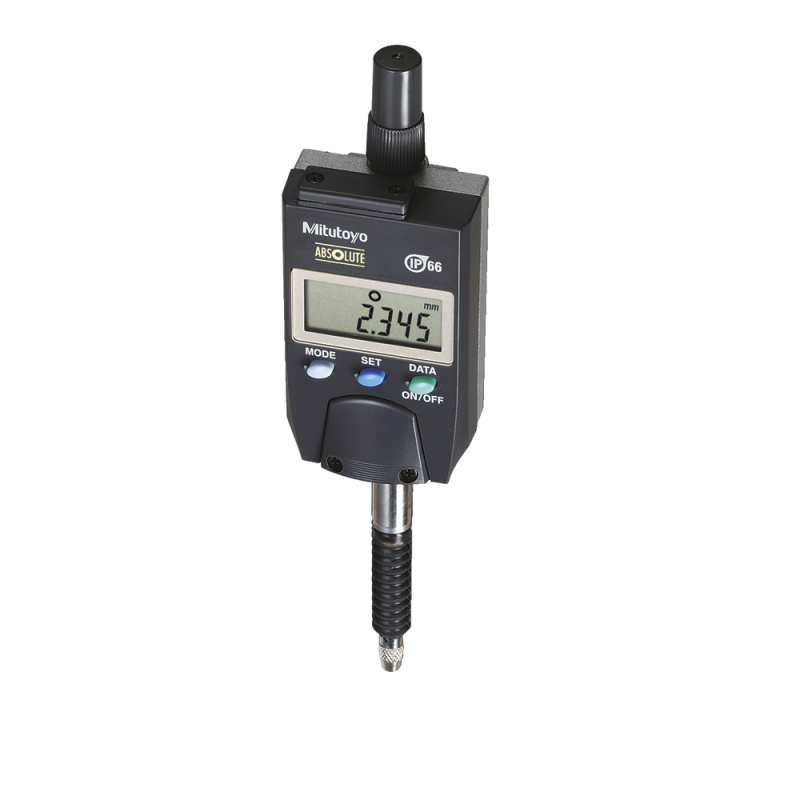

Digital dial indicator 5mm (0.01mm) ID-B (readings from above)

Name: Digital dial indicator 5mm (0.01mm) ID-B (readings from above)
Brand: MITUTOYO
SKU: 5120310005
Availability: OutOfStock

Производитель: MITUTOYO Модель: 26498

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

Data transmission type:DIGIMATIC/USB

Digit increment:0.01 mm

DIN:Company standard

Display:Digital

Error limit:0.03 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Digital dial indicator 5mm (0.01mm) ID-B (readings from above)

0.0 грн.

Описание

Slim design! Perfect for use in fixtures
Digital ABSOLUTE dial indicators IDN / IDB

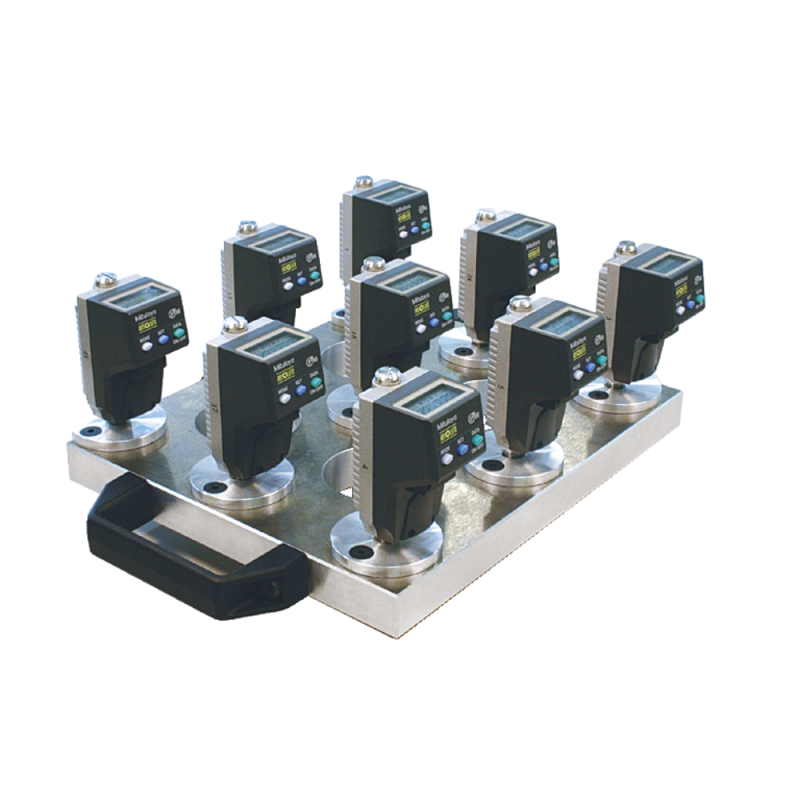

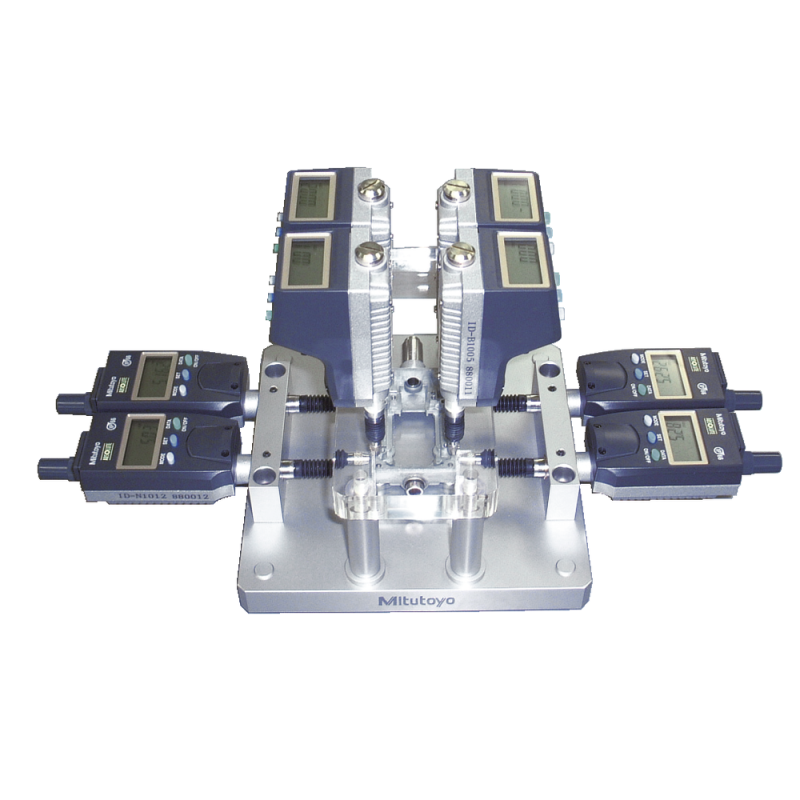

Small and slim digital dial indicators for installation in fixtures with limited space
ABSOLUTE scale
Battery life approx. 7,000 hours
Unrestricted travel speed
Easy to read thanks to large display

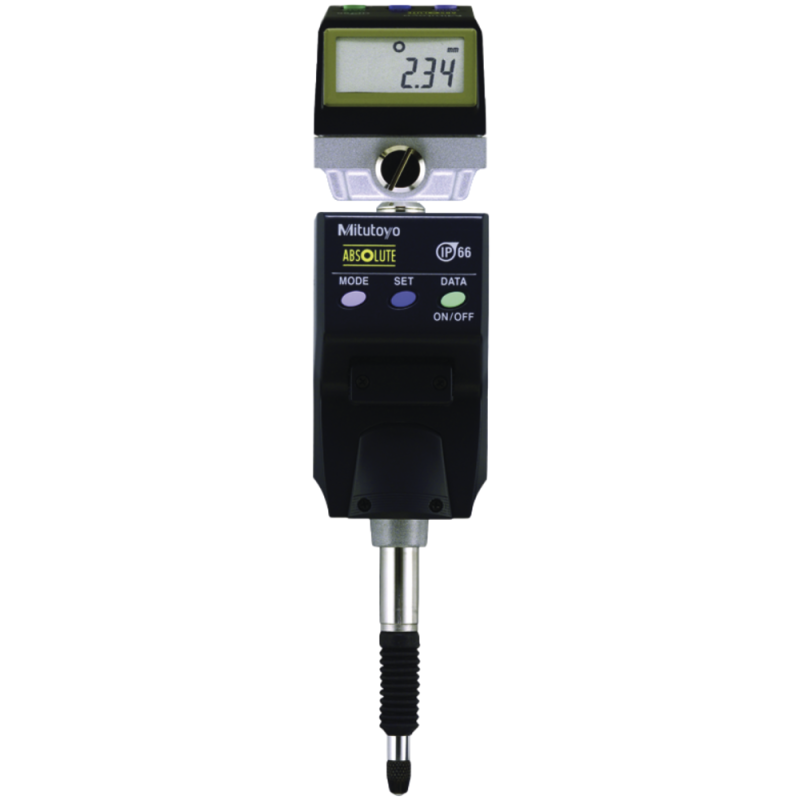

Type B readings from above, Type N readings from the front
IP66 protection rating , oil-resistant casing

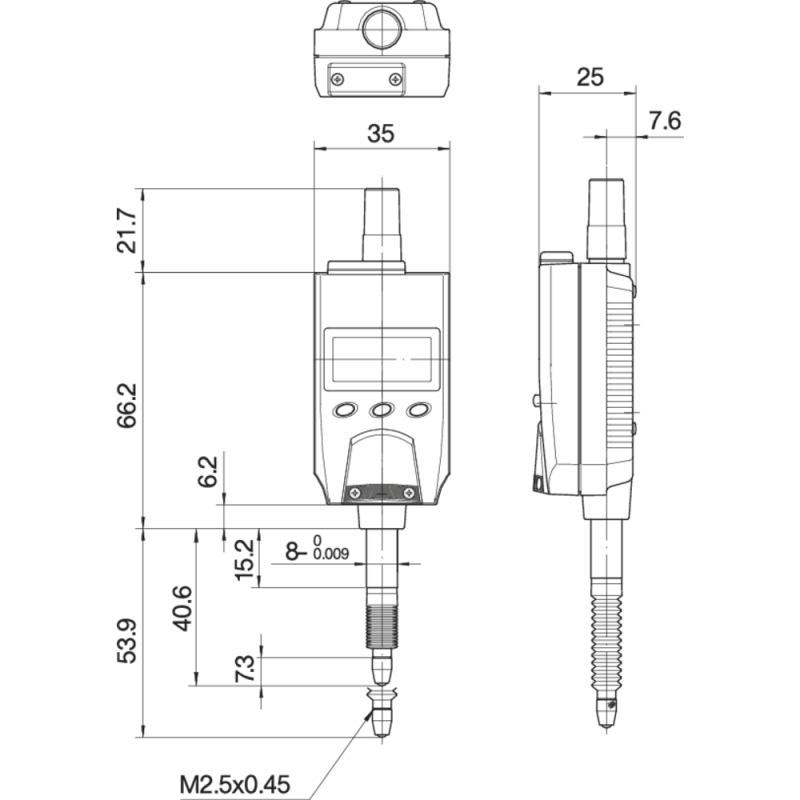

Small casing dimensions, w = 35 mm / h = 60 mm

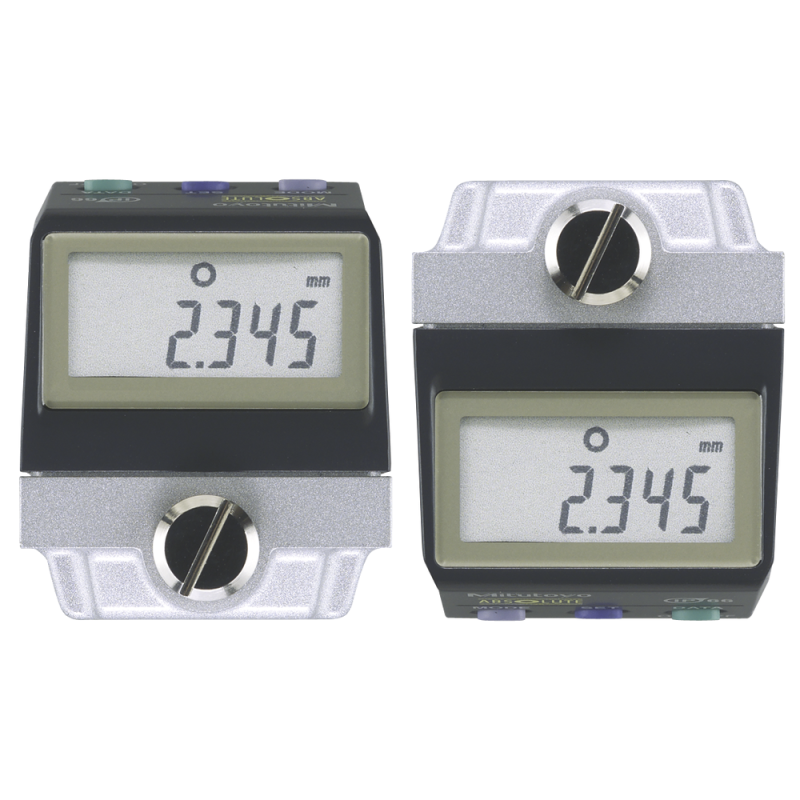

Display can be flipped 180° depending on installation position
Dial indicators with 0.001 mm resolution, can be switched to 0.01 mm
Can be controlled remotely via special cable (optional accessory)
Functions: On/off/DATA for transmitting measurement values, SET for confirming inputs, MODE for selecting tolerances, zeroing, counting direction, display switching
Supplied in molded packaging with SR44 battery, no. 500534 0001
Optional accessories: Digimatic cable type G, no. 563100 0061 (1 m), no. 563100 0062 (2 m); USB cable type G-USB, no. 563110 0007
