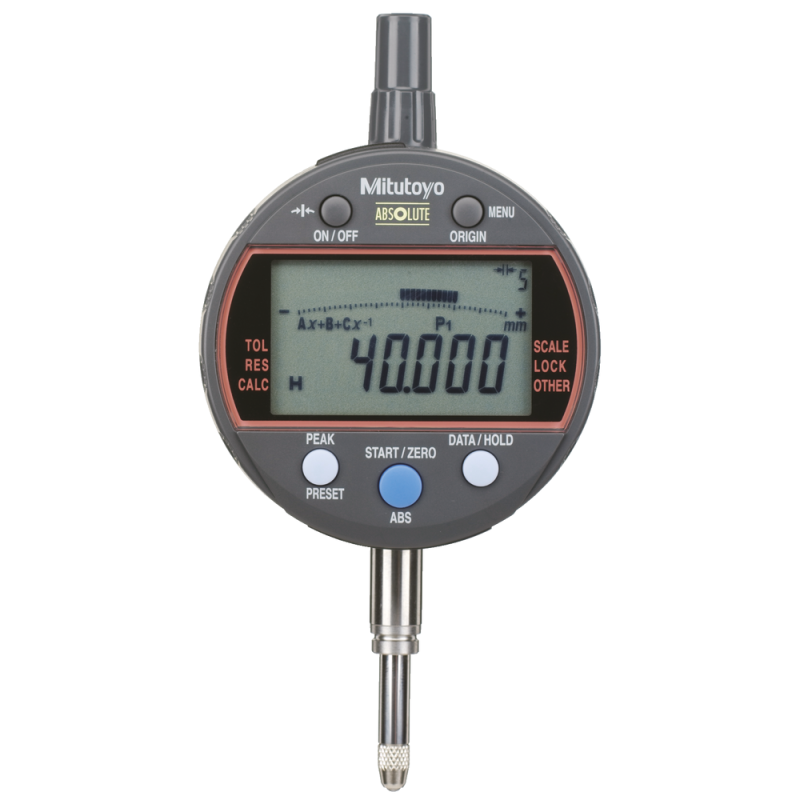

Digital dial indicator ID-C, 12.7mm with calculation function

Name: Digital dial indicator ID-C, 12.7mm with calculation function
Brand: MITUTOYO
SKU: 5120171201
Availability: OutOfStock

Производитель: MITUTOYO Модель: 26499

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

Data transmission type:DIGIMATIC/USB

DIN:Company standard

Error limit:0.003 mm

Function:Absolute function

Max. length measuring range:12.7 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Digital dial indicator ID-C, 12.7mm with calculation function

0.0 грн.

Описание

IDC digital ABSOLUTE dial indicator with calculation function

ABSOLUTE scale
Suitable for use with chamfer gauges or measuring bridges for determining diameters
Freely programmable calculation formula Ax + B + Cx-1
Combined digital/analogue display
Resolution can be selected in 12 steps, 0.0002 mm to 1 mm
Display part can be rotated through 330° for better reading
3 memory slots for pre-set and tolerance values
Configurable via PC (special interface optional)
Clamping shank O 8 mm
Probe tip thread M2.5
Functions: Zeroing (ORIGIN), input tolerance values (TOL), input user-defined values (PRESET), confirm set formula, data transfer (DATA), hold value (HOLD), input calculation function (MODE), on/off
Supplied in molded packaging with battery CR 2032 No. 548079 6032
Special accessories: Digimatic cable type F, No. 563100 0051 (1 m), No. 563100 0052 (2 m), USB cable type F-USB, no. 563110 0006
