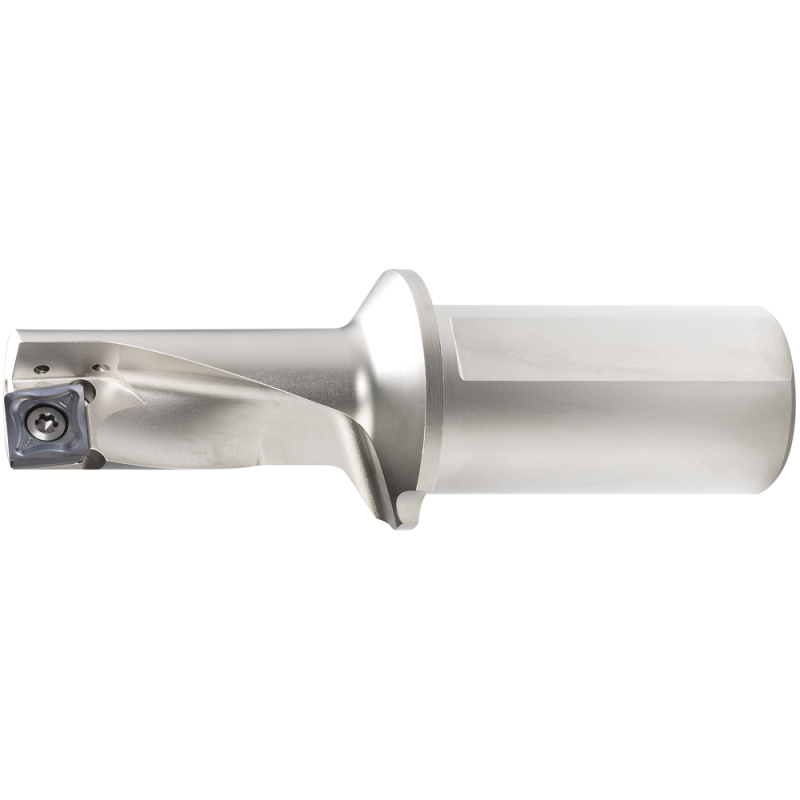

Drilling and turning tool SARACut MC-R 2.25xD 20 mm (XPNT 1004..EN)

Name: Drilling and turning tool SARACut MC-R 2.25xD 20 mm (XPNT 1004..EN)
Brand: SARA
SKU: 1292010200
Availability: OutOfStock

Производитель: SARA Модель: 48876

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

Coolant supply:Internal

Cutting data:Cutting angle information - yes

D:20 mm

D max.:20.5 mm

D min.:19.8 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Drilling and turning tool SARACut MC-R 2.25xD 20 mm (XPNT 1004..EN)

0.0 грн.

Описание

SARAcut 2.0 drilling and turning tool

Drilling and turning with one tool

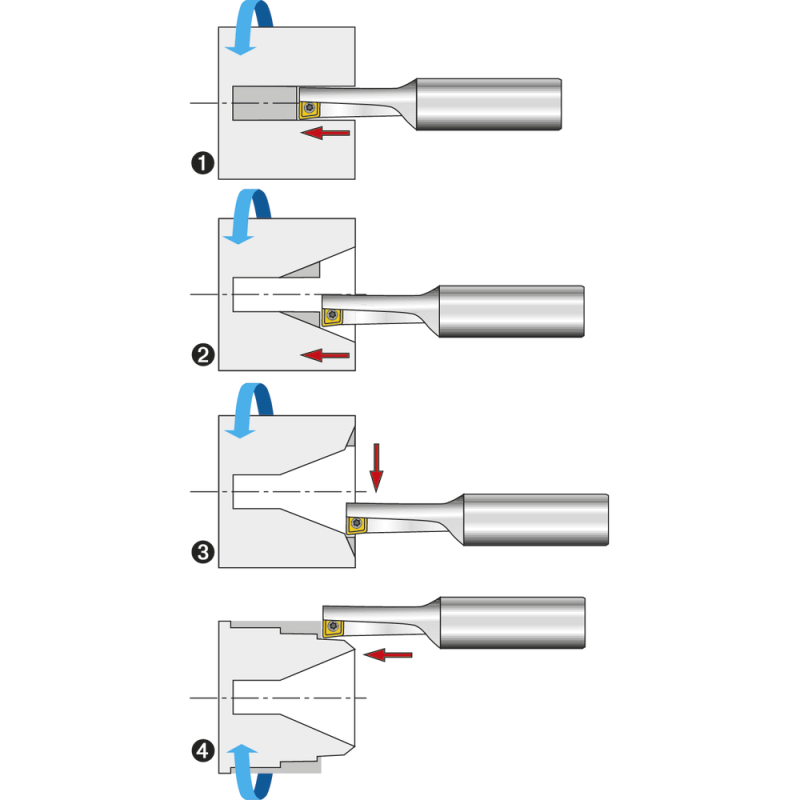

Multifunctional:
Solid drilling with a level-bottomed drill hole (Drawing 1)
Turning internal contours (Drawing 2)
Turning of flat contours (Drawing 3)
Turning external contours (Drawing 4)
(Note change of rotational direction)
Reduced storage of tools and indexable inserts, as well as reduced tooling times
Reduction of tool costs
Reduced programming effort and expense
Solves the problem of tool location shortages

2.25 x D

Multifunctional:
solid drilling with a level-bottomed drill (drawing 1)
Turning internal contours (drawing 2)
Turning flat contours (drawing 3)
Turning external contours (drawing 4)
(note change of rotational direction)
3 geometries for a wide range of applications :
129300.... SP300, for steel materials, stainless steel and special alloys (ISO P, M, S)
129350.... SP350, for steel and cast materials (ISO P, K)
129400.... SW200, for non-ferrous materials (ISO N)
