E.-perm. magnetic clamping plate incl. control, FXL 406/50 - 620 x 392 x 66

Нет в наличии

0.0 грн.

Designation:FXL 406/50 with 40 poles

Length x width x height:620 x 392 x 66 mm

Packaging unit:1

Weight:115 kg

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

E.-perm. magnetic clamping plate incl. control, FXL 406/50 - 620 x 392 x 66

0.0 грн.

Описание

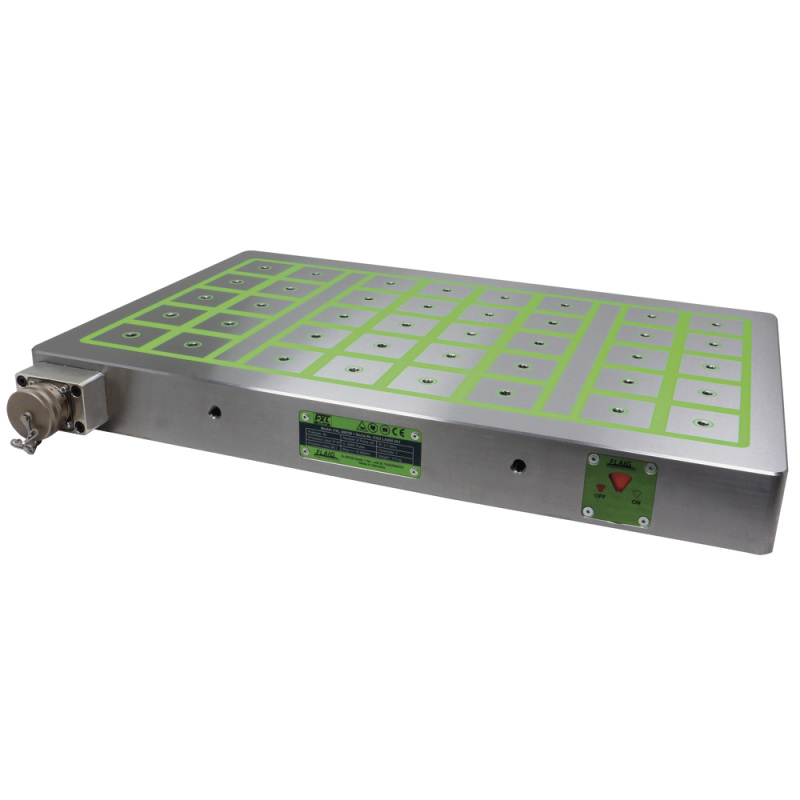

Electro-permanent magnetic clamping plates FXL-50

With switching status display, tells the user about the switching status of the clamping plate even when the cable is disconnected and guarantees increased safety.
Plug-in connection with closed cover fulfills protection class IP67
All poles with M8 tool steel insert and cast with high-performance resin in the extra-sturdy monoblock frame
Low-vibration machining and clamping of workpieces
Quick and safe clamping of uneven parts
Same holding force in all directions with square pole technology
Minimum setup times
Drilling pattern on the back for zero-point clamping systems possible
For workpieces from approx. 100x100mm
Penetration depth of the magnetic field approx. 12mm
Holding force is 160 N/cm ² = 4 kN per pole

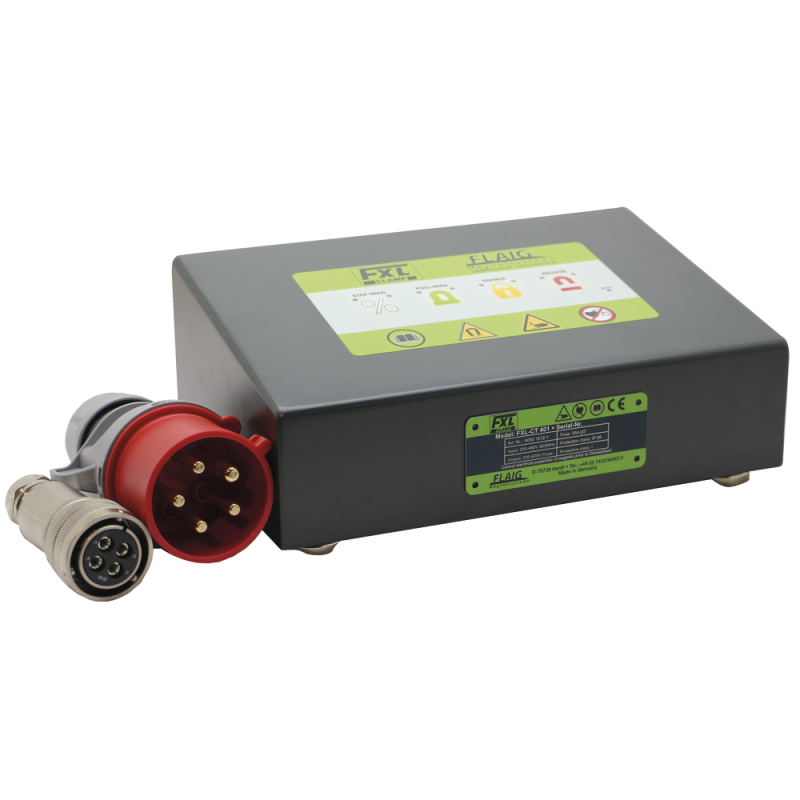

Supplied with control unit
Magnetization in 4 holding force levels possible with control unit
Other pole sizes and dimensions available on request
