End Mill Holder Weldon "4 x Cool Tool" HSK-A 63 - 6 - 65 G2.5 25,000/min. corrosion protected

Name: End Mill Holder Weldon "4 x Cool Tool" HSK-A 63 - 6 - 65 G2.5 25,000/min. corrosion protected
Brand: SCHÜSSLER
SKU: 6063048-018
Availability: OutOfStock

Производитель: SCHÜSSLER Модель: 154365

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

End Mill Holder Weldon "4 x Cool Tool" HSK-A 63 - 6 - 65 G2.5 25,000/min. corrosion protected

Нет в наличии

0.0 грн.

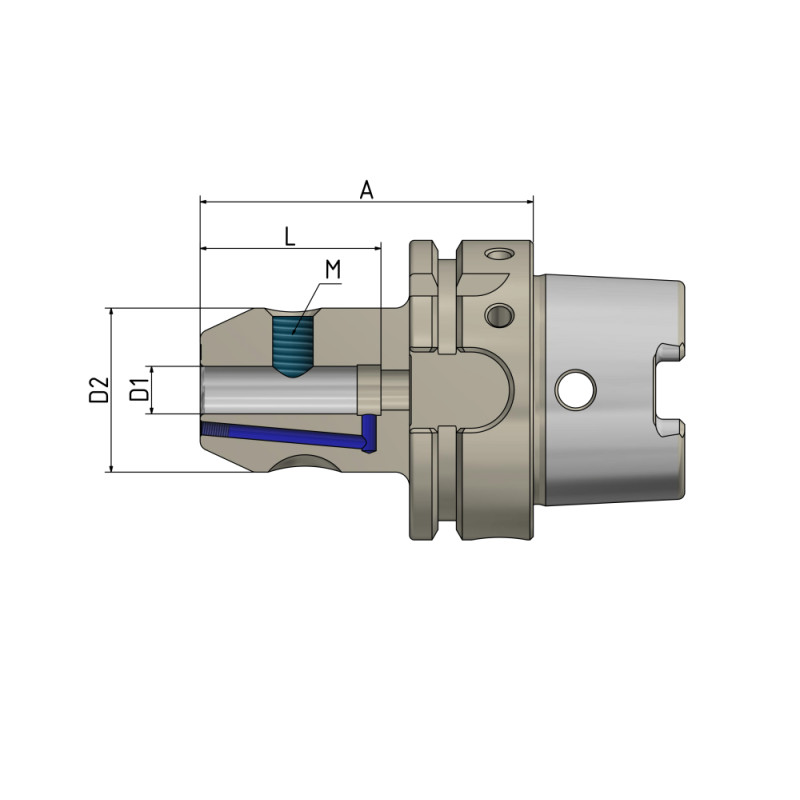

a:65

Clamping system:End Mill Holder Weldon "4 x Cool Tool"

D1:6

D2:25

L:35

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

End Mill Holder Weldon "4 x Cool Tool" HSK-A 63 - 6 - 65 G2.5 25,000/min. corrosion protected

0.0 грн.

Описание

Application:
For clamping tools with cylindrical shank according to DIN 1835B/6359HB.
Technical Design:
The entire front area of the tool holder is corrosion resistant. Runout of outer taper to inner taper < 0.003 mm. Tolerance of bore H4 (more accurate than DIN). Four holes in the tool holder lead the coolant directly to the cutting edge.
Includes:
Clamping screw (from Ø 25 with 2 clamping screws) and 4 x M3 screws to plug the coolant holes if needed.

Характеристики

Clamping system

End Mill Holder Weldon "4 x Cool Tool"
