ER40 Spindle Speed Increaser, 10,000RPM, 1:4:2 Ratio - GSS26 Series (Gerardi)

Нет в наличии

0.0 грн.

Brand:Gerardi

Category:Toolholding

Ratio:1 to 4 to 2

RPM:10,000

Sub Category:Shrink Fit Machines

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

ER40 Spindle Speed Increaser, 10,000RPM, 1:4:2 Ratio - GSS26 Series (Gerardi)

0.0 грн.

Описание

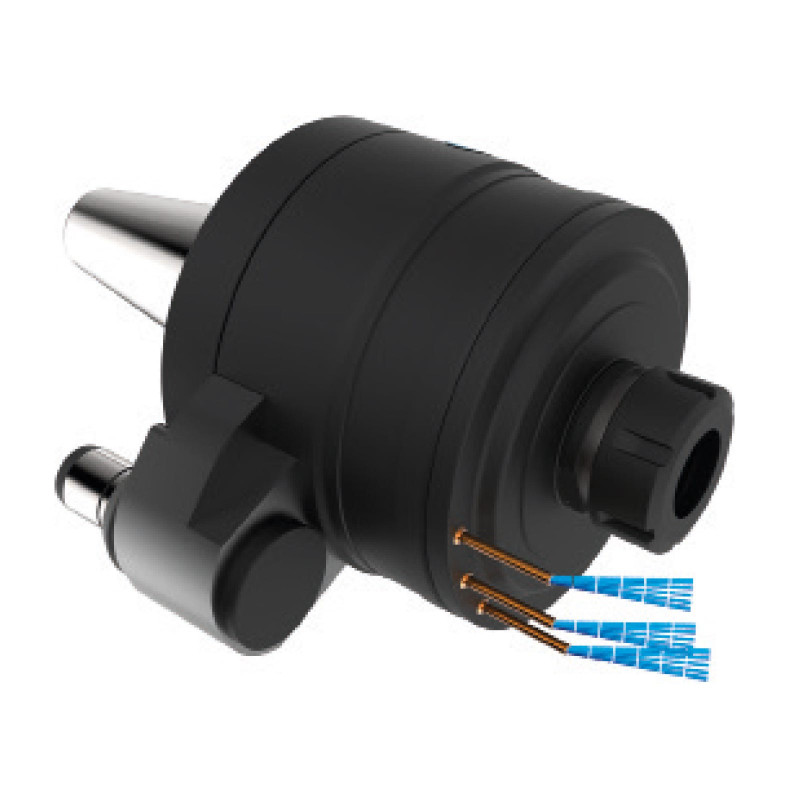

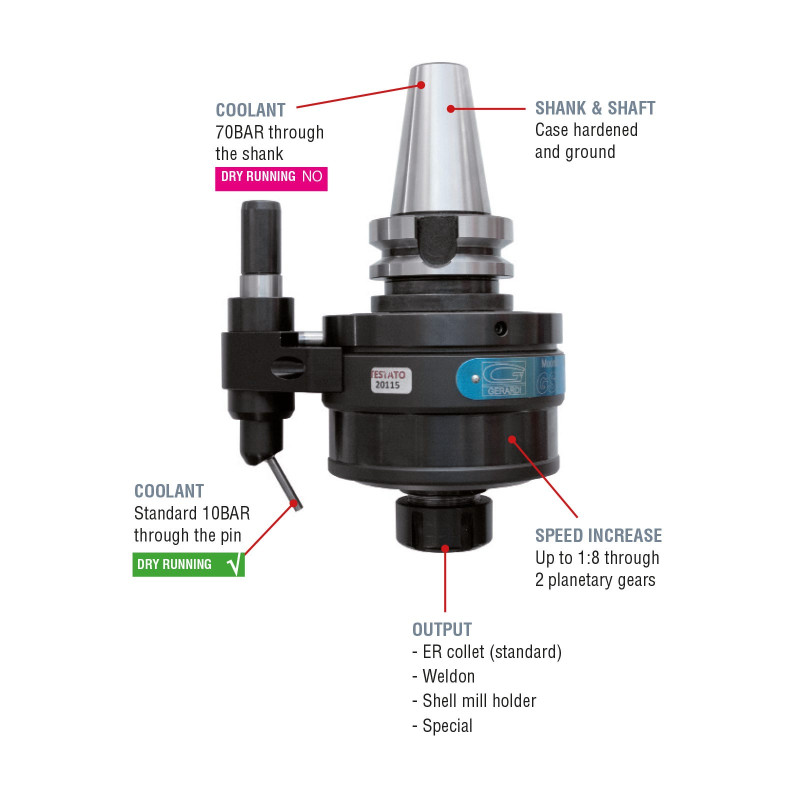

Italian made Gerardi spindle speeders are ideal for increasing spindle speeds on milling machines and machining centres. The modular shanks allow these to be used across different machine tools. The GSS26 series can operate at 10,000RPM and offers external coolant through a retention pin or 70BAR internal coolant through the spindle.

1:4:2 ratio with max speed of 10,000RPM
ER40 output (max 26mm shank)
Coolant through the retention pin (external) or 70 Bar through spindle (internal)
Supplied with standard stop block
Modular shanks, can be used across multiple milling machines
Two planetary ground gears for high transmission power
Manual or automatic tool change option
The perfect solution for small diameter tools which need to run at high spindle speeds or for machines with very low spindle speeds where higher RPM’s are desirable
Reduces stress on machine spindle for older machine tools
Case hardened and ground shank & shaft to ensure maximum rigidity
Angular contact preloaded ball bearings of precision class ABEC 9
Gleason gears to deliver higher torque
Ensures maximum reliability and accuracy in milling and drilling
Made in Italy by Gerardi
All Gerardi spindle speeders are covered by a 1 year warranty
