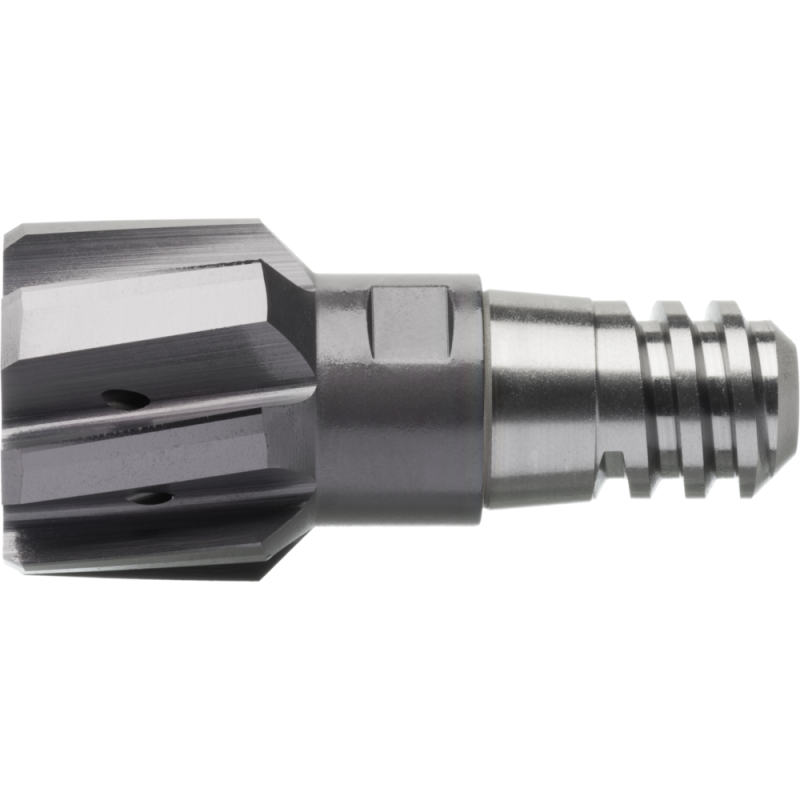

Ex. head reamer, SC, sz. 16 Ø27 mm H7 with IC radial, TiAlN (P, K), Wr. width 16

Name: Ex. head reamer, SC, sz. 16 Ø27 mm H7 with IC radial, TiAlN (P, K), Wr. width 16
Brand: ATORN
SKU: 1636102700
Availability: OutOfStock

Производитель: ATORN Модель: 60592

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Ex. head reamer, SC, sz. 16 Ø27 mm H7 with IC radial, TiAlN (P, K), Wr. width 16

Нет в наличии

0.0 грн.

Coating:TiAlN

Coolant supply:Internal radial

Cutting data:Cutting angle information - yes

Cutting diameter max.:40 mm

Cutting diameter min.:10 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Ex. head reamer, SC, sz. 16 Ø27 mm H7 with IC radial, TiAlN (P, K), Wr. width 16

0.0 грн.

Описание

Modular system
High-performance exchangeable head reamers

Modular reaming tool system
Diameter 10-40 mm
For through-holes and blind bores
Cutting material: solid carbide, TiAlN-coated
With internal coolant supply
Particularly efficient from machining diameters of 20 mm
Flexible machining depths thanks to various holder lengths
Faster and more secure tool changes without new tool calibration
2 geometries available:
ST - for steel and cast iron (ISO P, K)
VA - for stainless steels (ISO M)
Other designs for the efficient machining of aluminum, titanium, CFRP/GFRP, and hardened materials available on request

Through-hole

Left-handed twist 10°
Radial coolant outlet
From O 28 mm use exchangeable head holder with enlarged planar support (MD = 16*)

Usage characteristics

cast iron GG/GTS
cast iron GGG
steel < 1000 N/mm2
steel < 1400 N/mm2
steel < 700 N/mm2

Характеристики

Totally stainless steel suitability

Характеристики

Coating

TiAlN

Coolant supply

Internal radial

Cutting data

Cutting angle information - yes

Cutting diameter max.

40 mm

Cutting diameter min.

10 mm

Cutting diameter min./max.

10-40 mm

Cutting material

Solid carbide

27 mm

Design

Diameter max.

40 mm

Diameter min.

10 mm

Diameter min./max.

10-40 mm

DIN

Company standard

f steel 1300

1.5

fitness hartl total

Interchangeable head system

WKS 16

26 mm

14 mm

Number of teeth

8 pc.

Packaging unit

Shape

Suitability not total iron

Suitability titanium/nickel/super total

Suitable for material group H

Suitable for material group K

Suitable for material group M

Suitable for material group N

Suitable for material group P

Suitable for material group S

Surface

TiAlN

Thread dimension

Tightening torque

25 N·m

Tolerance of fit

Type

UNI HPC H7

Wr. width

16 mm
