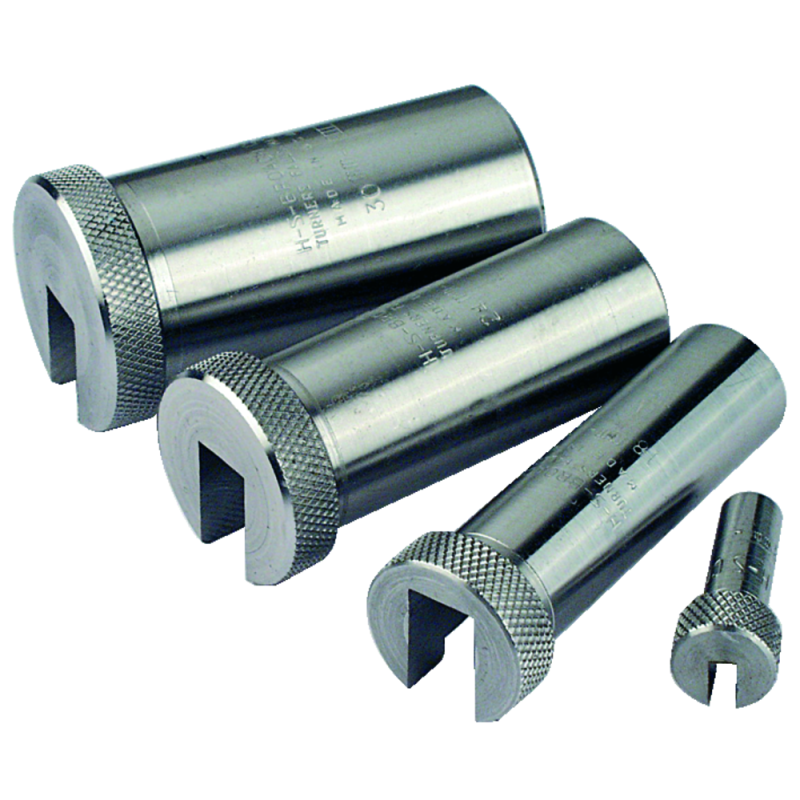

Guide bush 6x32mm for push broach keyway widths 2-3mm

Name: Guide bush 6x32mm for push broach keyway widths 2-3mm
Brand: SARA
SKU: 2340050632
Availability: OutOfStock

Производитель: SARA Модель: 43092

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

D h9:6 mm

Guide bushes for broaches:2-3 mm

L:32 mm

Packaging unit:1

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Guide bush 6x32mm for push broach keyway widths 2-3mm

0.0 грн.

Описание

Push broaches (keyway broaches)

For manufacturing true-to-size and precisely centered keyways in accordance with DIN 6885
Can be used on normal workshop presses (hand press or hydraulic press), no special machinery required
Low tooling time
Good surface finish on machined workpieces
Manufacturing time for one keyway only approx. 1 minute
Broaches supplied with inserts for achieving the cutting depth
Special alloy HSS steel for machining any materials with a hardness of up to 34 HRC
Broaches with other rake angles are available on request for machining solid or very soft materials.
Square and multi-purpose four square broaches are available on request.
From size 32 x 102, guide bush without collar
Use:
1. Slide guide bush into workpiece bore and insert broach until the first tooth on the workpiece is standing upright
2. Lubricate broach
3. Push broach in approx. 1/3
4. Briefly release plunger and push broach in fully
5. Clean broach and fit insert for the second pass
6. Repeat broaching operation
