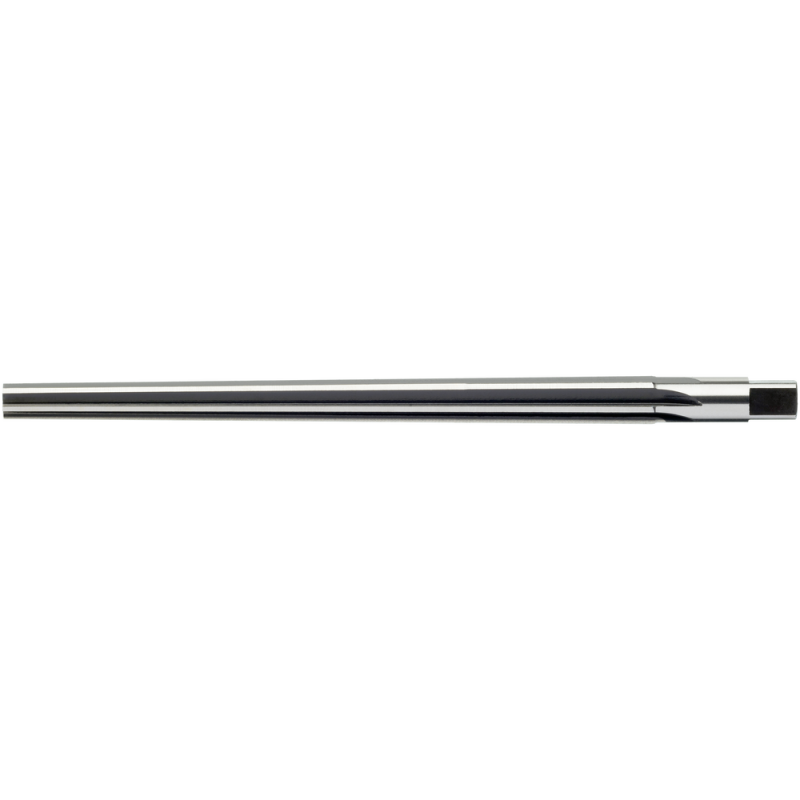

Hand taper reamer HSS DIN9A 1.5mm (steel/non-ferrous) straight-fluted

Name: Hand taper reamer HSS DIN9A 1.5mm (steel/non-ferrous) straight-fluted
Brand: ATORN
SKU: 1601400015
Availability: OutOfStock

Производитель: ATORN Модель: 33208

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Hand taper reamer HSS DIN9A 1.5mm (steel/non-ferrous) straight-fluted

Нет в наличии

0.0 грн.

Coolant supply:External

Cutting data:Cutting angle information - no

Cutting diameter min./max.:1.4-2.14 mm

Cutting material:HSS

D:1.5 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Hand taper reamer HSS DIN9A 1.5mm (steel/non-ferrous) straight-fluted

0.0 грн.

Описание

Hand taper reamers

1:50 taper for taper pins
Type A , straight-fluted
Type B , spiral-fluted, 6° left-hand twist
Shank design: straight with square end
For taper pins in accordance with DIN EN 22339, DIN 258, DIN EN 28737 and DIN EN 28736
For output bores, we recommend conical pin-hole drill bit no. 101025....
O 13 mm and O 14 mm, non-DIN
* These dimensions are not included in the standard

Type A Straight-fluted (type B available on request)
For taper pins according to DIN EN 22339, DIN 258, DIN EN 28737 and DIN EN 28736
For output bores, we recommend conical pin-hole drill no. 101025....

Usage characteristics

aluminum < 8% Si
aluminum >= 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GGG
plastic
austenitic stainless steel
stainless steel ferrit./martens.
steel < 1000 N/mm2
steel < 1400 N/mm2
steel < 700 N/mm2
superalloys Fe/NiCo based >= 30 HRc
titanium alloys

Характеристики

Totally stainless steel suitability

Характеристики

Coolant supply

External

Cutting data

Cutting angle information - no

Cutting diameter min./max.

1.4-2.14 mm

Cutting material

HSS

1.5 mm

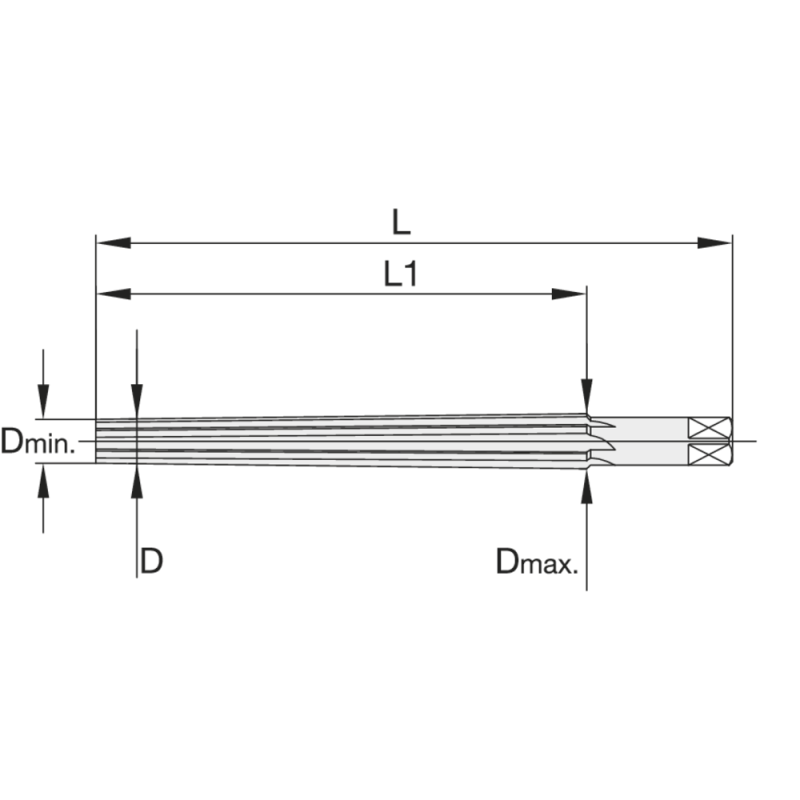

D max.

12.0 mm

D min.

1.5 mm

Diameter max.

1.5 mm

Diameter min.

12.0 mm

Diameter min./max.

12.0-1.5 mm

DIN

fitness hartl total

57 mm

37 mm

Packaging unit

Shape

Square shank

2.4 mm

Suitability not total iron

Suitability titanium/nickel/super total

Surface

Uncoated

Taper ratio

1:50

Tool holding device

HA parallel shank

Twist angle

0°

3 pc.
