Height gauge, digital 0-350 mm (0.001 mm) QM-Height, without motor

Name: Height gauge, digital 0-350 mm (0.001 mm) QM-Height, without motor
Brand: MITUTOYO
SKU: 5330050351
Availability: OutOfStock

Производитель: MITUTOYO Модель: 26745

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

Data transmission type:DIGIMATIC/USB

Description:QM-H 350 without air support

Measurement range:350 mm

Measurement system:ABSOLUTE

Packaging unit:1

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Height gauge, digital 0-350 mm (0.001 mm) QM-Height, without motor

0.0 грн.

Описание

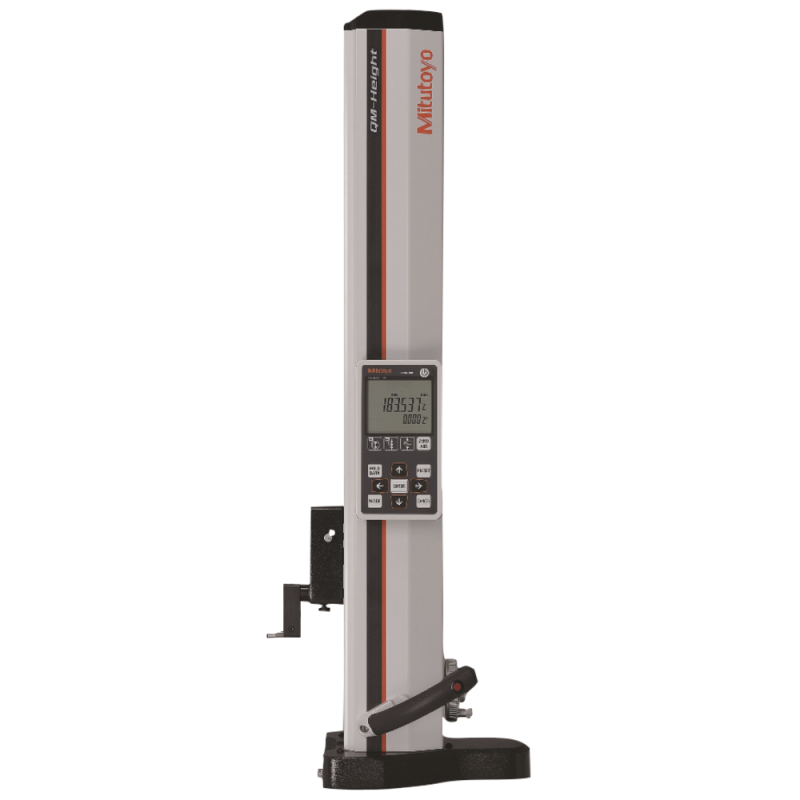

Digital height meter QM-Height

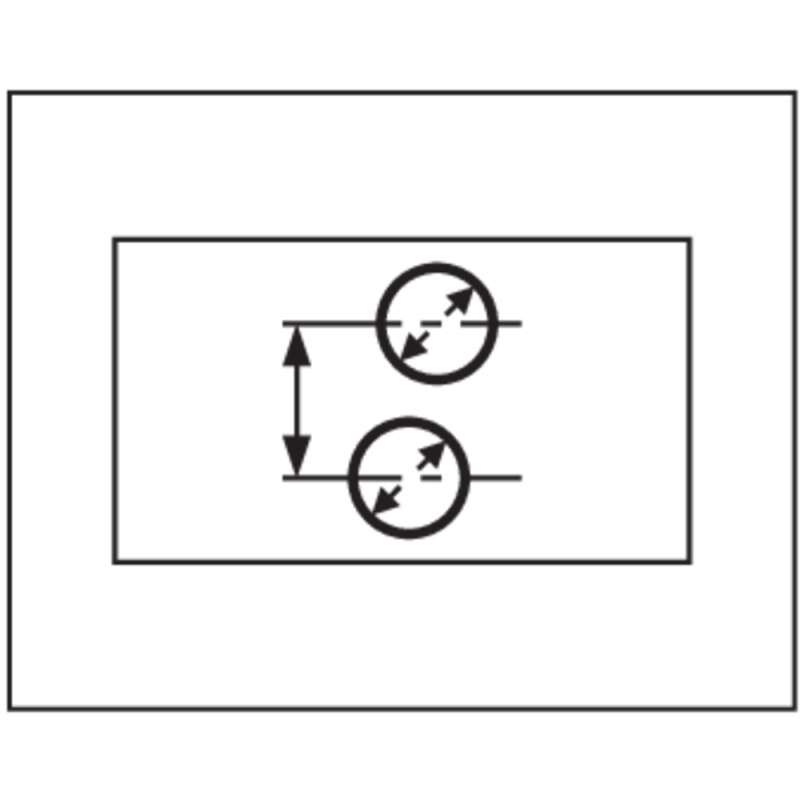

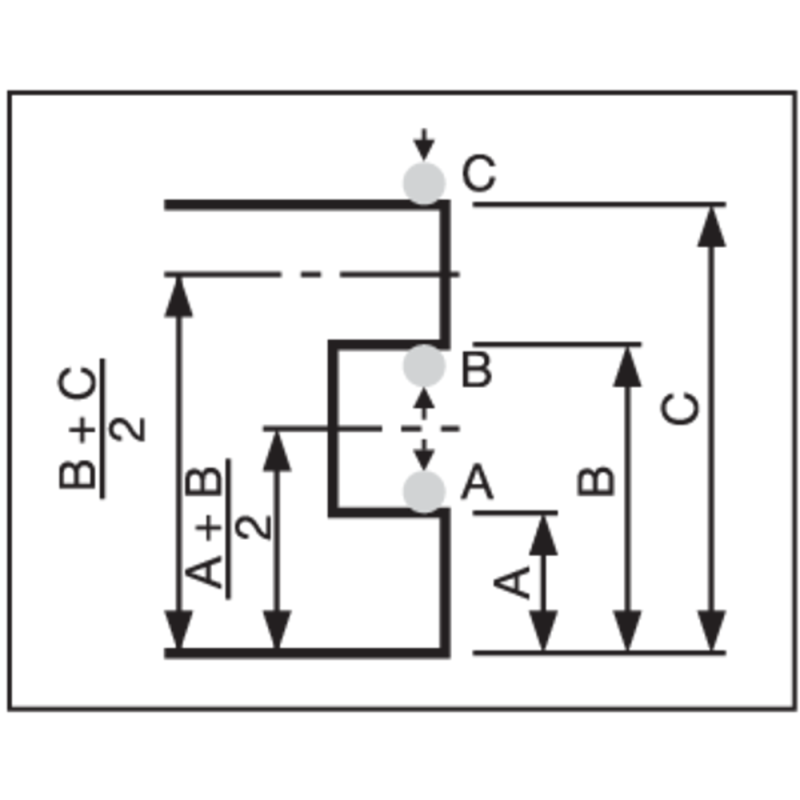

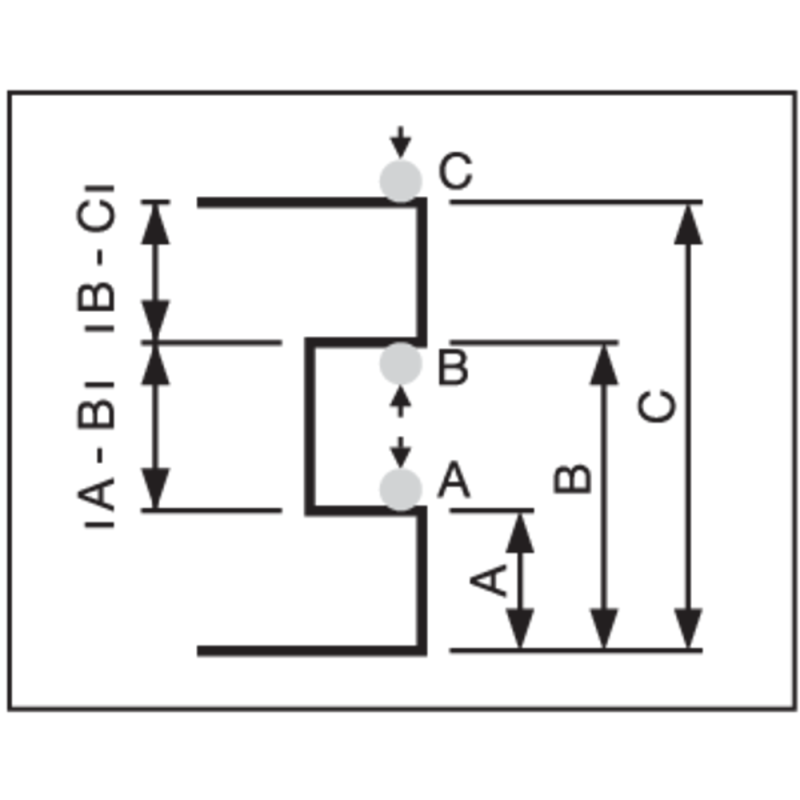

Measuring heights, steps, groove widths, inner and outer diameters and their distances
Designed for workshop use
Available with or without air cushion support
High accuracy due to electromagnetic inductive measurement principle
Large LCD with large, easy-to-read digits
Clearly laid out keypad with symbols for the individual measurement functions
Multiple zero points programmable
Optical and acoustic tolerance monitoring
Choice of mains or (rechargeable) battery power supply
Wide range of probes for various measurement tasks available as optional accessories

Technical data
Measuring span (stroke): 0 - 465 mm (350 mm) for QM-H350 and 0 - 715 mm (600 mm) for QM-H600
Resolution: 0.001 mm, can be switched to 0.005 mm
Display: LCD
Error margin: ± (2.4 + 2.1L/600) µm L = measurement length in mm
Surface repeatability: 1.8 µm (2 o)
Perpendicularity: 8 µm QM-H350 / 13 µm QM-H600
Measurement system: electromagnetic inductive scale
Measuring force: 1.5 +/- 0.5 N
Weight: 22 kg QM-H350 and 27 kg QM-H600

Supplied with measuring probe and O 5 mm carbide ball, reference block, 4x LR6 batteries (No. 548079 4006), protective cover, operating manual, factory certificate
Special accessories: Digimatic cable Type D No. 563100 0031 (1 m), No. 563100 0032 (2 m) USB cable Type D-USB No. 563110 0004

Technical data
Measuring span (stroke): 0 - 465 mm (350 mm) for QM-H350 and 0 - 715 mm (600 mm) for QM-H600
Resolution: 0.001 mm can be switched to 0.005 mm
Display: LCD
Error margin: ±(2.4+2.1L/600) µm L = measuring length in mm
Repeatability surface: 1.8 µm (2 o)
Perpendicularity: 8 µm QM-H350/ 13 µm QM-H600
Measurement system: electromagnetic inductive scale
Measuring force: 1.5 +/- 0.5 N
Weight: 22 kg QM-H350 and 27 kg QM-H600

Supplied with measuring probe with carbide ball O 5 mm, reference block, 4 batteries LR6 no. 548079 4006, protective cover, operating instructions.
Special-purpose accessories: Digimatic cable type D no. 563100 0031 (1 m), no. 563100 0032 (2 m) USB cable type D-USB no. 563110 0004

Характеристики

Data transmission type

DIGIMATIC/USB

Description

QM-H 350 without air support

Measurement range

350 mm

Measurement system

ABSOLUTE

Packaging unit
