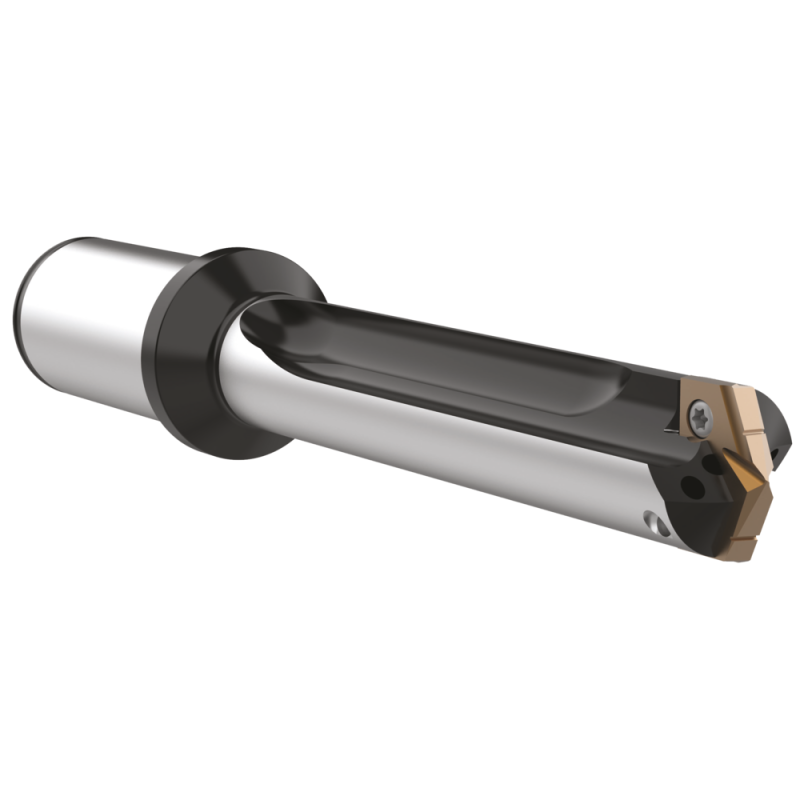

Holder TA Pro A series 2; Ø24.40-28.40mm 10xD straight shank 32mm with surfaces

Name: Holder TA Pro A series 2; Ø24.40-28.40mm 10xD straight shank 32mm with surfaces
Brand: AMEC
SKU: 1050290110
Availability: OutOfStock

Производитель: AMEC Модель: 53700

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Holder TA Pro A series 2; Ø24.40-28.40mm 10xD straight shank 32mm with surfaces

Нет в наличии

0.0 грн.

Coolant supply:Internal axial

Cutting data:Cutting angle information - yes

D:24.40 - 28.40 mm

D1:32 mm

L:403.6 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Holder TA Pro A series 2; Ø24.40-28.40mm 10xD straight shank 32mm with surfaces

0.0 грн.

Описание

Series 2 drilling system TA Pro ™

Series 2, diameter range 24.40 - 35.00 mm
Drill depths up to 15 x D
Supports with innovative coolant bore system for higher flow rate
Cutting fluid is fed directly under the chip and creates a “hydraulic wedge”
Sturdy support and new chip flute design for safe chip removal
4 geometries for a wide range of applications :
105980.... AM300 (P), for steel materials
105986.... AM460 (M), for rust-proof and acid-proof steels
105982.... TiAlN (K) for cast materials
105984.... TiCN (NE) for non-ferrous materials

Series 2 holder

Характеристики

Coolant supply

Internal axial

Cutting data

Cutting angle information - yes

24.40 - 28.40 mm

32 mm

403.6 mm

297.4 mm

349.2 mm

345.6 mm
