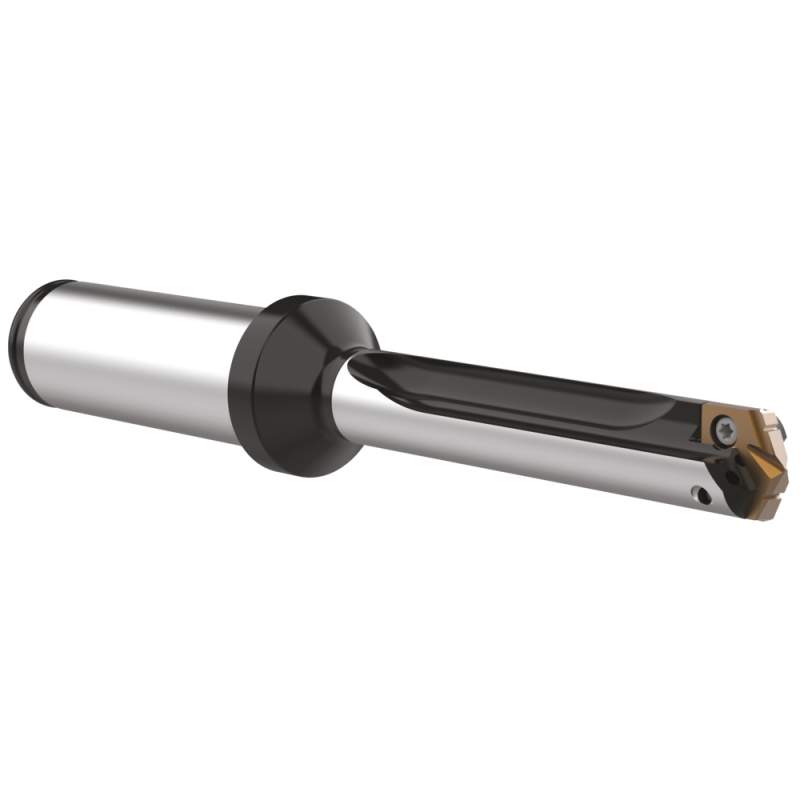

Holder TA Pro C series 0; Ø15.08-17.60mm 10xD straight shank 20mm with surfaces

Name: Holder TA Pro C series 0; Ø15.08-17.60mm 10xD straight shank 20mm with surfaces
Brand: AMEC
SKU: 1050250310
Availability: OutOfStock

Производитель: AMEC Модель: 53862

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Holder TA Pro C series 0; Ø15.08-17.60mm 10xD straight shank 20mm with surfaces

Нет в наличии

0.0 грн.

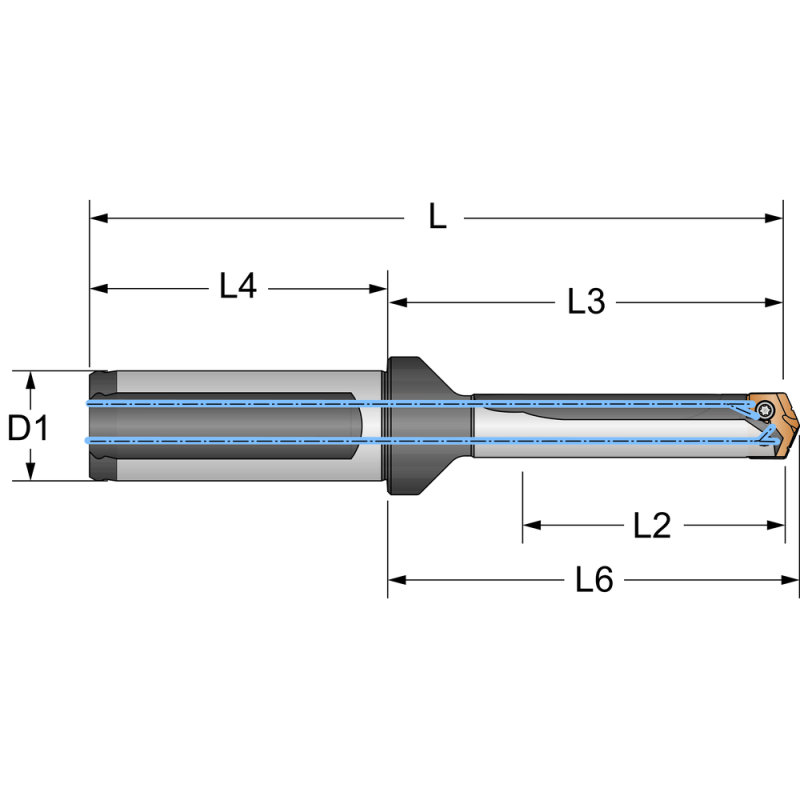

Coolant supply:Internal axial

Cutting data:Cutting angle information - yes

D:15.08 - 17.60 mm

D1:20 mm

L:236.6 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Holder TA Pro C series 0; Ø15.08-17.60mm 10xD straight shank 20mm with surfaces

0.0 грн.

Описание

Series 0 drilling system TA Pro ™

Series 0, diameter range 12.70 - 17.60 mm
Drill depths up to 15 x D
Supports with innovative coolant bore system for higher flow rate
Cutting fluid is fed directly under the chip and creates a “hydraulic wedge”
Sturdy support and new chip flute design for safe chip removal
4 geometries for a wide range of applications :
105980.... AM300 (P), for steel materials
105986.... AM460 (M), for rust-proof and acid-proof steels
105982.... TiAlN (K) for cast materials
105984.... TiCN (NE) for non-ferrous materials

Series 0 holder

Характеристики

Coolant supply

Internal axial

Cutting data

Cutting angle information - yes

15.08 - 17.60 mm

20 mm

236.6 mm

153.2 mm

187.8 mm

185 mm
