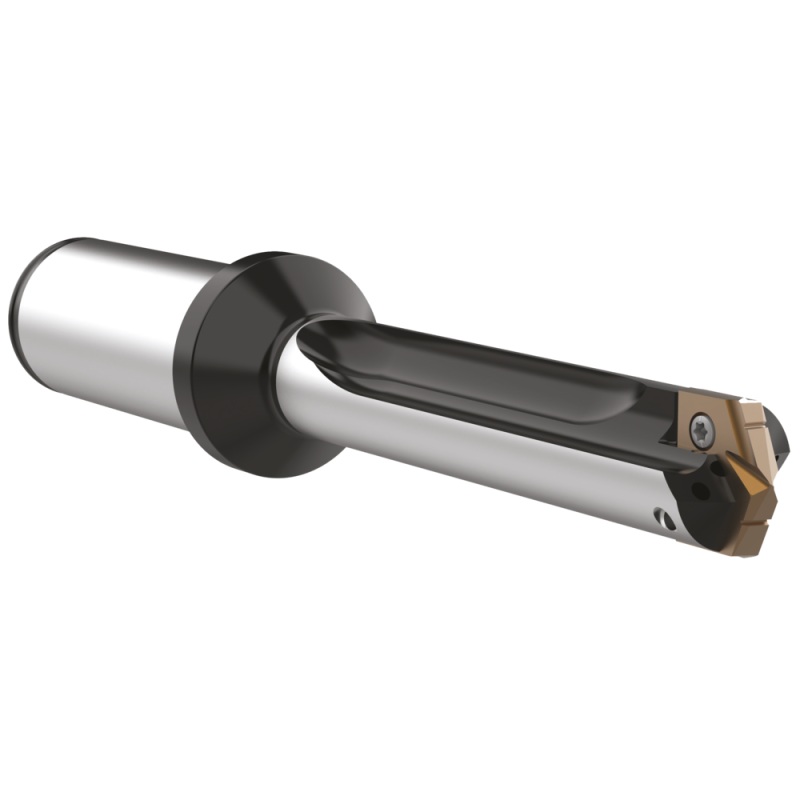

Holder TA Pro C series 1; Ø20.60-24.30mm 10xD straight shank 25mm with surfaces

Name: Holder TA Pro C series 1; Ø20.60-24.30mm 10xD straight shank 25mm with surfaces
Brand: AMEC
SKU: 1050270310
Availability: OutOfStock

Производитель: AMEC Модель: 53918

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Holder TA Pro C series 1; Ø20.60-24.30mm 10xD straight shank 25mm with surfaces

Нет в наличии

0.0 грн.

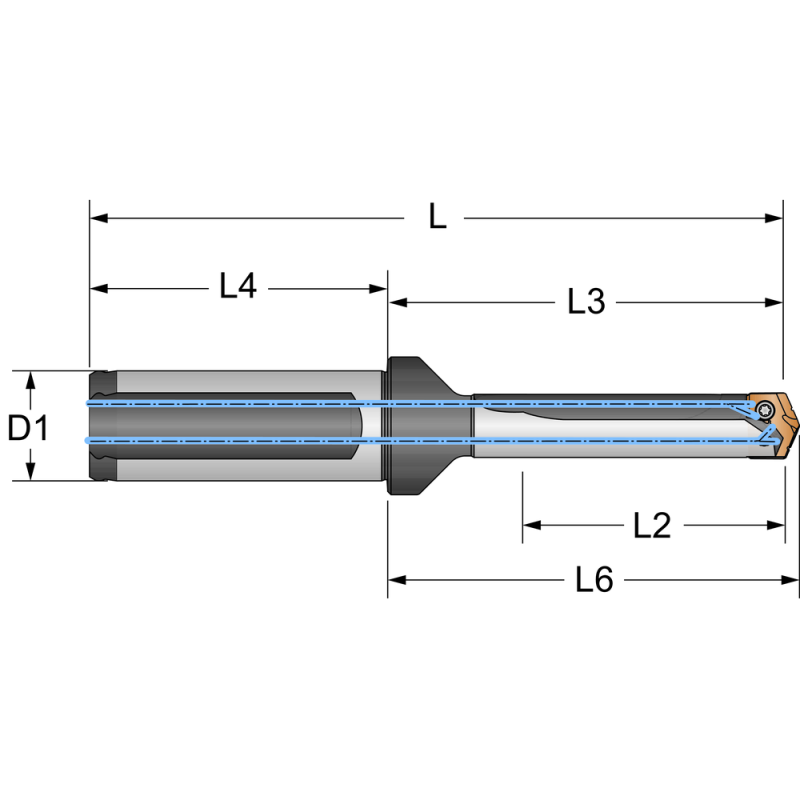

Coolant supply:Internal axial

Cutting data:Cutting angle information - yes

D:20.60 - 24.30 mm

D1:25 mm

L:305.5 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Holder TA Pro C series 1; Ø20.60-24.30mm 10xD straight shank 25mm with surfaces

0.0 грн.

Описание

Series 1 drilling system TA Pro ™

Series 1, diameter range 17.70 - 24.30 mm
Drill depths up to 15 x D
Supports with innovative coolant bore system for higher flow rate
Cutting fluid is fed directly under the chip and creates a “hydraulic wedge”
Sturdy support and new chip flute design for safe chip removal
4 geometries for a wide range of applications :
105980.... AM300 (P), for steel materials
105986.... AM460 (M), for rust-proof and acid-proof steels
105982.... TiAlN (K) for cast materials
105984.... TiCN (NE) for non-ferrous materials

Series 1 holder

Характеристики

Coolant supply

Internal axial

Cutting data

Cutting angle information - yes

20.60 - 24.30 mm

25 mm

305.5 mm

209.6 mm

251.2 mm

57.9 mm
