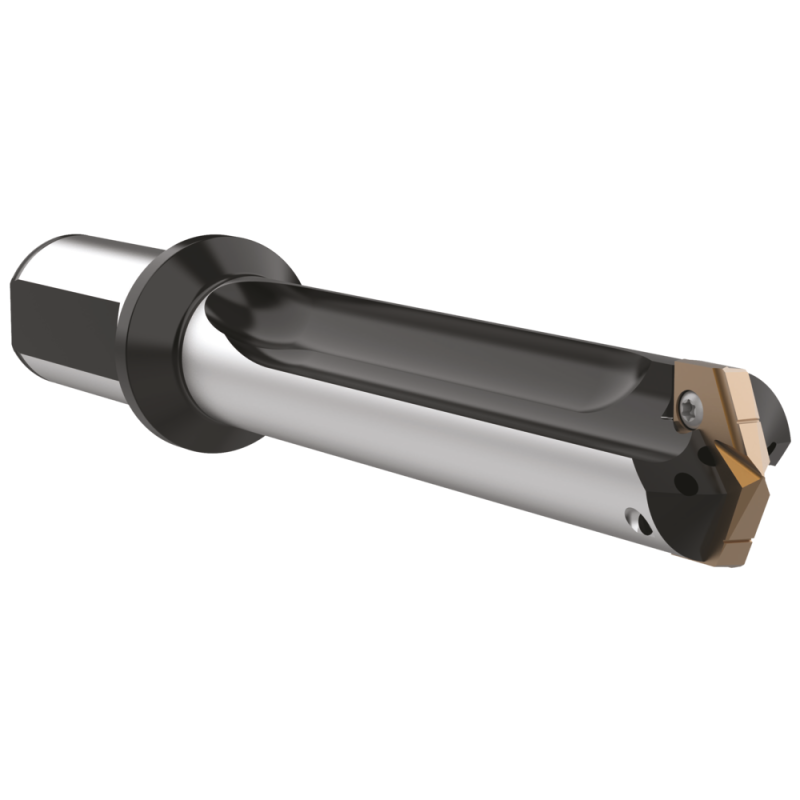

Holder TA Pro C series 3; Ø41.00-47.63mm 15xD straight shank 40mm with surfaces

Name: Holder TA Pro C series 3; Ø41.00-47.63mm 15xD straight shank 40mm with surfaces
Brand: AMEC
SKU: 1050310315
Availability: OutOfStock

Производитель: AMEC Модель: 53892

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Holder TA Pro C series 3; Ø41.00-47.63mm 15xD straight shank 40mm with surfaces

Нет в наличии

0.0 грн.

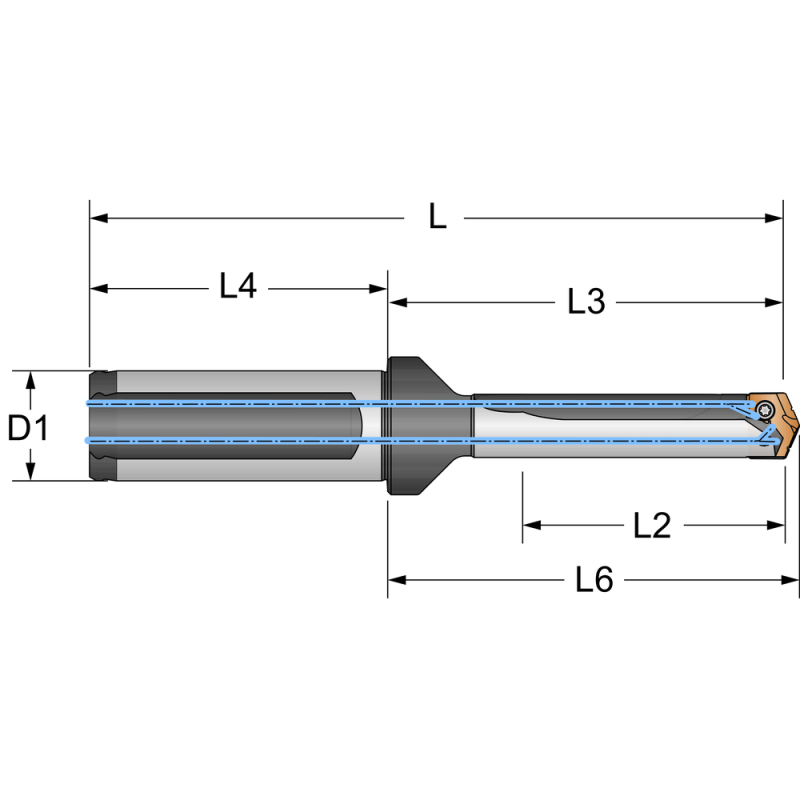

Coolant supply:Internal axial

Cutting data:Cutting angle information - yes

D:41.00 - 47.63 mm

D1:40 mm

L:741.5 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Holder TA Pro C series 3; Ø41.00-47.63mm 15xD straight shank 40mm with surfaces

0.0 грн.

Описание

Series 3 drilling system TA Pro ™

Series 3, diameter range 35.80 - 47.60 mm
Drill depths up to 15 x D
Supports with innovative coolant bore system for higher flow rate
Cutting fluid is fed directly under the chip and creates a “hydraulic wedge”
Sturdy support and new chip flute design for safe chip removal
4 geometries for a wide range of applications :
105980.... AM300 (P), for steel materials
105986.... AM460 (M), for rust-proof and acid-proof steels
105982.... TiAlN (K) for cast materials
105984.... TiCN (NE) for non-ferrous materials

Series 3 holder

Характеристики

Coolant supply

Internal axial

Cutting data

Cutting angle information - yes

41.00 - 47.63 mm

40 mm

741.5 mm

616.5 mm

678 mm

68.3 mm
