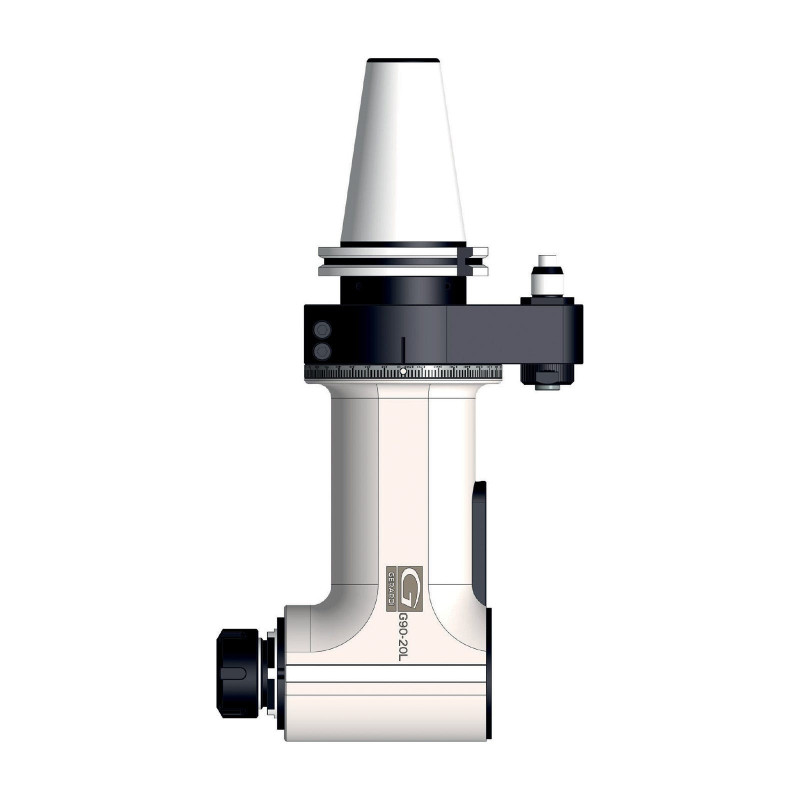

HSK100 90 Degree Classic Line Angle Head, ATC (Automatic Tool Change), ER32 Output - GER-G90-20L Series (Gerardi)

Name: HSK100 90 Degree Classic Line Angle Head, ATC (Automatic Tool Change), ER32 Output - GER-G90-20L Series (Gerardi)
Brand: Gerardi
SKU: 9.G90.20L00HSK100CP
Availability: OutOfStock

Производитель: Gerardi Модель: 14403

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

HSK100 90 Degree Classic Line Angle Head, ATC (Automatic Tool Change), ER32 Output - GER-G90-20L Series (Gerardi)

Нет в наличии

0.0 грн.

Brand:Gerardi

Category:Toolholding

Coolant Type:10 bar

Holder material:Steel

Output:ER32 (max 20mm shank)

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

HSK100 90 Degree Classic Line Angle Head, ATC (Automatic Tool Change), ER32 Output - GER-G90-20L Series (Gerardi)

0.0 грн.

Описание

Gerardi Classic Line Angle Heads offer a compact and rigid design which are readily available fro mstock on shorter delivery times. 100% made in Italy, Gerardi Angle Heads exude quality with a case hardened & ground shank and shaft, gleason gears and ABEC 9 precision class bearings. The ATC (Automatic Tool Change) Angle Heads can be automatically transferred from the tool store to the machine spindle and vice versa. Classic line angle heads guarantee exceptional tool life, high performance, high machining speeds and are reliable whilst affordable.

Gerardi Classic Line Angle Heads have a compacct and rigid design. Affordable and available off the shelf.
Automatic tool change allows the head to be automatically transferred from the tool store to the machine spindle and vice versa
Interchangeable drive taper enables the same head to be used in different machines
Case hardened and ground shank/shaft
Angular contact preloaded ball bearings of precision class ABEC 9
Gleason cut spiral bevel drive gears with ground teeth which guarantees a bigger torque
Designed for superior heat dissipation and for sustained periods of high speed operations
Treated steel body with internal air pressure, maximum rigidity and corrosion resistance
Gerardi Evolution line angle heads are 100% designed and manufactured in Italy
Covered by 1 year manufacturers warranty

Характеристики

Brand

Gerardi
