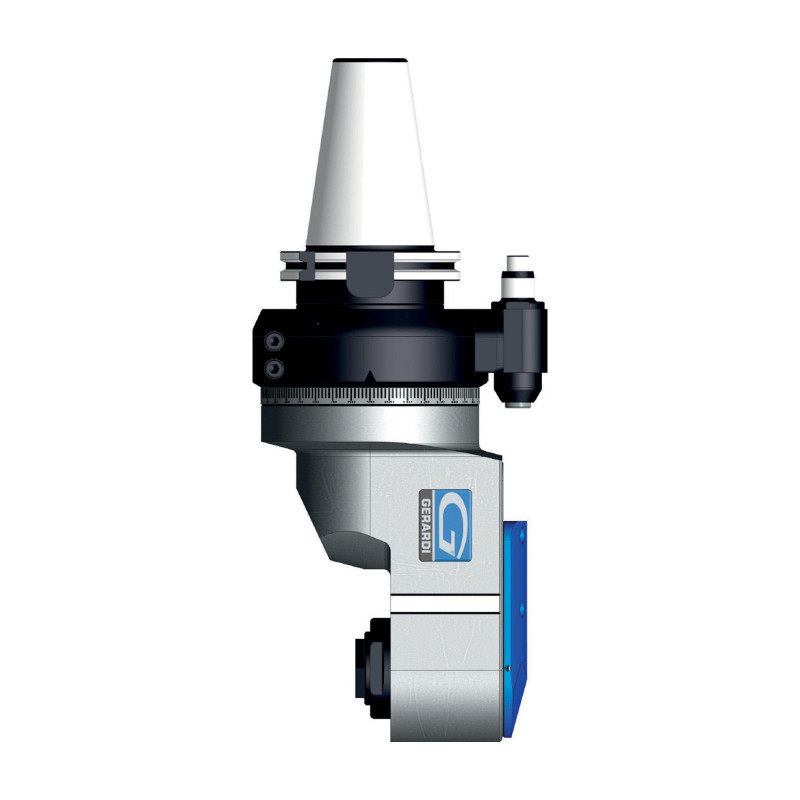

HSK100 90 Degree Offset Evolution Line Angle Head, ATC (Automatic Tool Change), ER32 Output - GER-FR90-20 Series (Gerardi)

Name: HSK100 90 Degree Offset Evolution Line Angle Head, ATC (Automatic Tool Change), ER32 Output - GER-FR90-20 Series (Gerardi)
Brand: Gerardi
SKU: 9.FR9.200B0HSK100CS
Availability: OutOfStock

Производитель: Gerardi Модель: 14441

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

HSK100 90 Degree Offset Evolution Line Angle Head, ATC (Automatic Tool Change), ER32 Output - GER-FR90-20 Series (Gerardi)

Нет в наличии

0.0 грн.

Brand:Gerardi

Category:Toolholding

Coolant Type:70 bar

Holder material:Steel

Output:ER32 (max 20mm shank)

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

HSK100 90 Degree Offset Evolution Line Angle Head, ATC (Automatic Tool Change), ER32 Output - GER-FR90-20 Series (Gerardi)

0.0 грн.

Описание

Gerardi Evolution Line Angle Heads feature an interchangeable Drive Taper which enables the same angle head to be used of different machines simply by changing the input shaft. 100% made in Italy, Gerardi Angle Heads exude quality with a case hardened & ground shank and shaft, gleason gears and ABEC 9 precision class bearings. The ATC (Automatic Tool Change) Angle Heads can be automatically transferred from the tool store to the machine spindle and vice versa. Evolution line angle heads guarantee exceptional tool life, high performance, high machining speeds and are ideal for heavy duty applications.

Gerardi Evolution Line Angle Heads are powerful with high speed capabilities for demanding applications
Automatic tool change allows the head to be automatically transferred from the tool store to the machine spindle and vice versa
Interchangeable drive taper enables the same head to be used in different machines
Case hardened and ground shank/shaft
Angular contact preloaded ball bearings of precision class ABEC 9
Gleason cut spiral bevel drive gears with ground teeth which guarantees a bigger torque
Designed for superior heat dissipation and for sustained periods of high speed operations
Treated steel body with internal air pressure, maximum rigidity and corrosion resistance
Gerardi Evolution line angle heads are 100% designed and manufactured in Italy
Covered by 1 year manufacturers warranty
