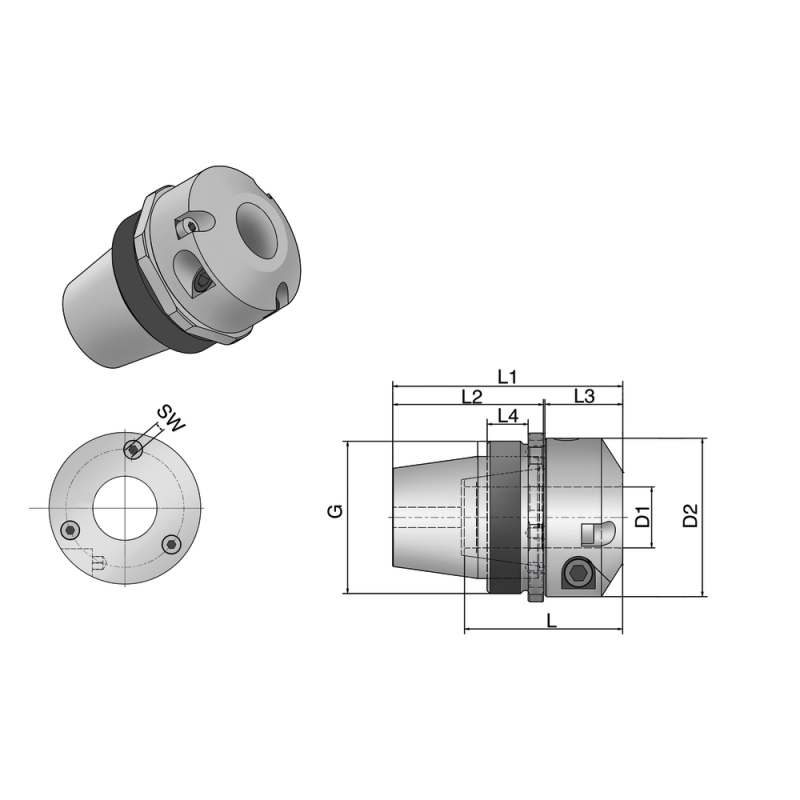

Hydraulic expansion clamp unit type ECOGRIP-20/ER32-40 Ø20 mm with female thread

Name: Hydraulic expansion clamp unit type ECOGRIP-20/ER32-40 Ø20 mm with female thread
Brand: SARA
SKU: 4338144020
Availability: OutOfStock

Производитель: SARA Модель: 59556

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Hydraulic expansion clamp unit type ECOGRIP-20/ER32-40 Ø20 mm with female thread

Нет в наличии

0.0 грн.

Connection thread:M50 x 1.5

D1:20 mm

Designation:ER32

External Ø:52 mm

L:75.5 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Hydraulic expansion clamp unit type ECOGRIP-20/ER32-40 Ø20 mm with female thread

0.0 грн.

Описание

powered by ETP

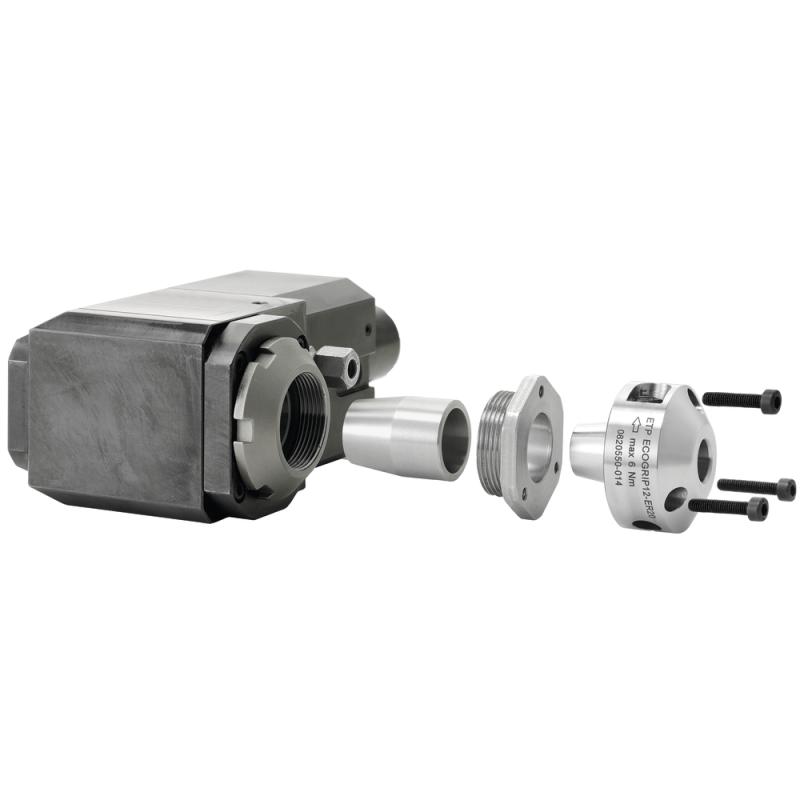

Hydraulic expansion clamping unit ECOGRIP ER

renders ER collet systems hydraulic
Adjustable radial run-out
installed correctly, a true running accuracy of 0.003mm is achieved. The radial run-out can be further adjusted to the desired accuracy by slightly tightening the setting screws.

For powered tools with ER internal thread

Характеристики

Connection thread

M50 x 1.5

20 mm

Designation

ER32

External Ø

52 mm

75.5 mm

52 mm

25.5 mm
