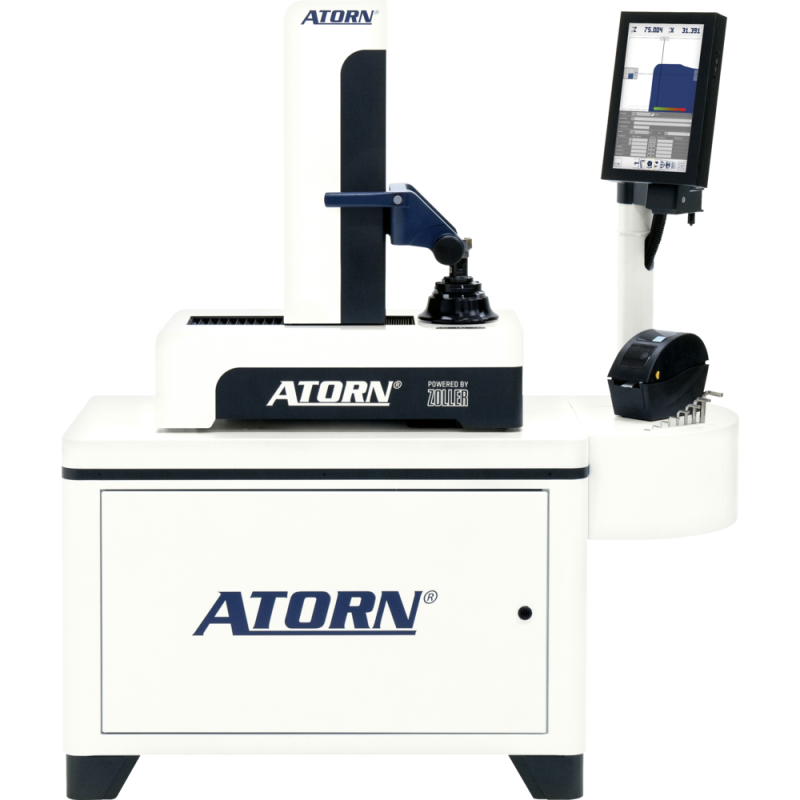

ImageController 1 ATORN® 600 x 420 with 13.3" screen in portrait mode

Name: ImageController 1 ATORN® 600 x 420 with 13.3" screen in portrait mode
Brand: ATORN
SKU: 5200901601
Availability: OutOfStock

Производитель: ATORN Модель: 47949

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

ImageController 1 ATORN® 600 x 420 with 13.3" screen in portrait mode

Нет в наличии

0.0 грн.

Compressed air supply:6 bar

Concentricity tolerance:0.002 mm

Frequency:50 Hz

Measurement range X:420 mm

Measurement range Z:600 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

ImageController 1 ATORN® 600 x 420 with 13.3" screen in portrait mode

0.0 грн.

Описание

Base support and reduction with integrated calibration edge
tool pre-setting devices 350/420/600 with ImageController

Robust tool pre-setting devices for workshop use
Quick measuring, setting and testing tools
SK50 high accuracy spindle with integrated calibration edge
Pneumatic spindle clamping unit
Simple setup of different zero points (max. 99)
Different measuring programs eg to carry out concentricity and axial run-out measurements on the tool cutting edge
CCD camera with telecentric lens
Dynamic crosshair for automatic measurements
EZmax software function for calculating and measuring the tool contour
Supplied ex works, excluding packaging

ImageController 1
In addition to ImageController Basic:

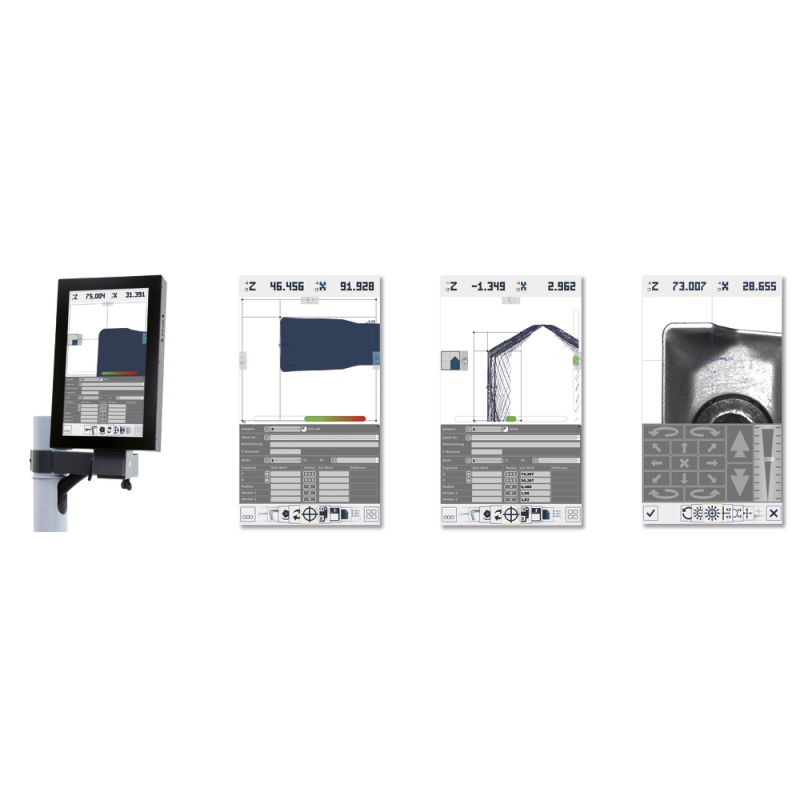

13.3" TFT touchscreen monitor with 20x magnification
Stable undertable with adapter tray
Spindle brake and 4x90° spindle indexing
Label printing system
Illuminated cutting edge inspection
Tool management, projector function
Turning center measurement (optional)
Network-compatible (optional)
Communication with machine tool (optional)

In addition to ImageController Basic:

Характеристики

Compressed air supply

6 bar

Concentricity tolerance

0.002 mm

Frequency

50 Hz

Measurement range X

420 mm

Measurement range Z

600 mm

Nominal voltage min.

230 V/AC

Packaging unit

Power consumption max.

600 VA

Repeatability (+/-)

0.002 mm

Screen diagonal max.

13.3 inches

Type

ATORN 600x420 ImageConrtoller1

WEEE (take-back of used electrical appliances)

Weight

289 kg
