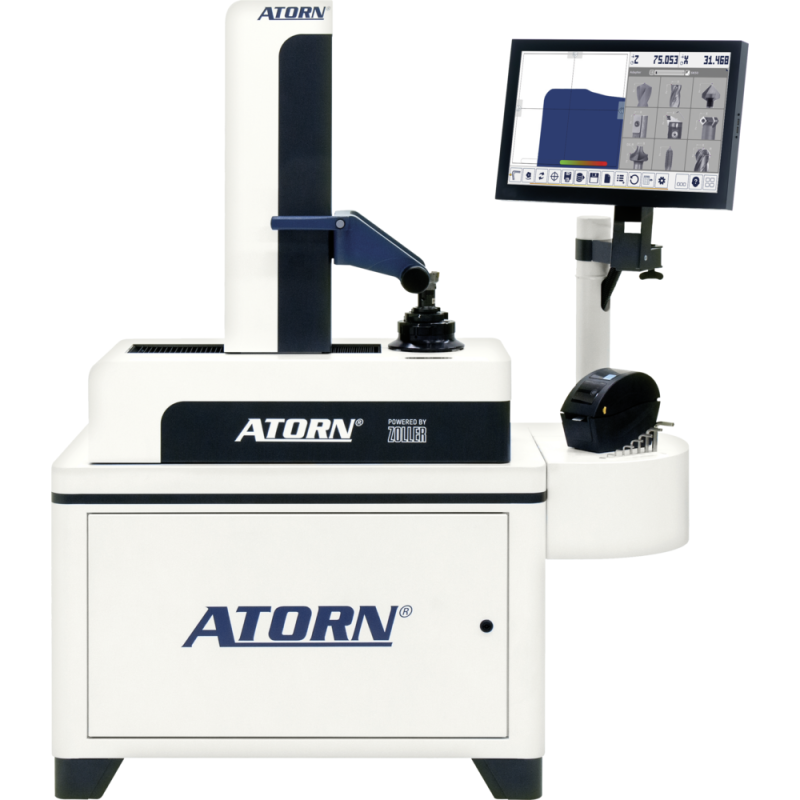

ImageController 2 ATORN® 600 with 24 inch panel PC

Name: ImageController 2 ATORN® 600 with 24 inch panel PC
Brand: ATORN
SKU: 5200902624
Availability: OutOfStock

Производитель: ATORN Модель: 63900

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

Compressed air supply:6 bar

Concentricity tolerance:0.002 mm

Frequency:50 Hz

Measurement range X:420 mm

Measurement range Z:600 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

ImageController 2 ATORN® 600 with 24 inch panel PC

0.0 грн.

Описание

Base support and reduction with integrated calibration edge
tool pre-setting devices 350/420/600 with ImageController

Robust tool pre-setting devices for workshop use
Quick measuring, setting and testing tools
SK50 high accuracy spindle with integrated calibration edge
Pneumatic spindle clamping unit
Simple setup of different zero points (max. 99)
Different measuring programs eg to carry out concentricity and axial run-out measurements on the tool cutting edge
CCD camera with telecentric lens
Dynamic crosshair for automatic measurements
EZmax software function for calculating and measuring the tool contour
Supplied ex works, excluding packaging

ImageController 2

Screen size 24"
Panel PC (magnification 38x)
additional options for ImageController 1:
- Creation of tooling sheets (optional)
- Autofocus spindle (optional)

Характеристики

Compressed air supply

6 bar

Concentricity tolerance

0.002 mm

Frequency

50 Hz

Measurement range X

420 mm

Measurement range Z

600 mm

Nominal voltage min.
