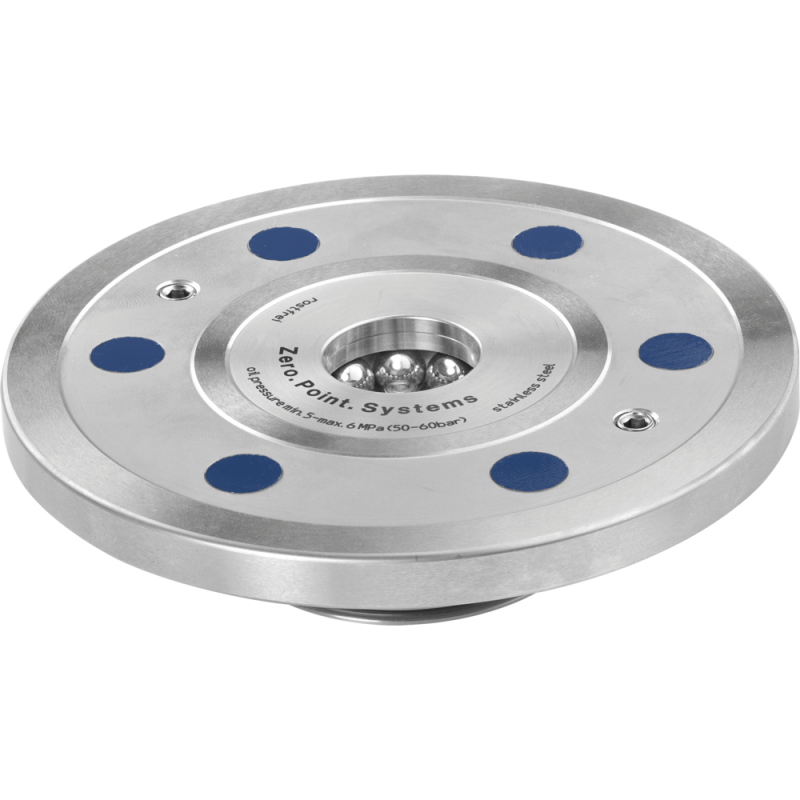

Installation clamping module, type K10.2 round (hydraulic) with blow-out 112mm

Name: Installation clamping module, type K10.2 round (hydraulic) with blow-out 112mm
Brand: ATORN
SKU: 4590511010
Availability: OutOfStock

Производитель: ATORN Модель: 43286

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Installation clamping module, type K10.2 round (hydraulic) with blow-out 112mm

Нет в наличии

0.0 грн.

Adapter diameter:50 mm

D:112 mm

D4:22 mm

Delivery rate min.:50

Depth:22 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Installation clamping module, type K10.2 round (hydraulic) with blow-out 112mm

0.0 грн.

Описание

K10.2 and K20 installing clamping modules

Hydraulic unlocking
Hardened cover and piston
Precision < 0.005 mm
Use: Zero-point clamping system for optimized tooling times when clamping; for all areas of chip-forming and chip-free machining as well as the food, pharmaceutical and chemical industries.
Note: Installation clamping modules boast high holding, pull-in and locking forces despite their extremely small dimensions. Hydraulic pressure is only required for releasing (min. 50 bar / max. 60 bar). The modules are mechanically locked when clamped. The advantage to this is the lack of inconvenient lines and of any risk of leaks.
Available on request:
- Installation drawings
- Automation solutions
- Also available as an individual flange version

K10.2 with and without indexing

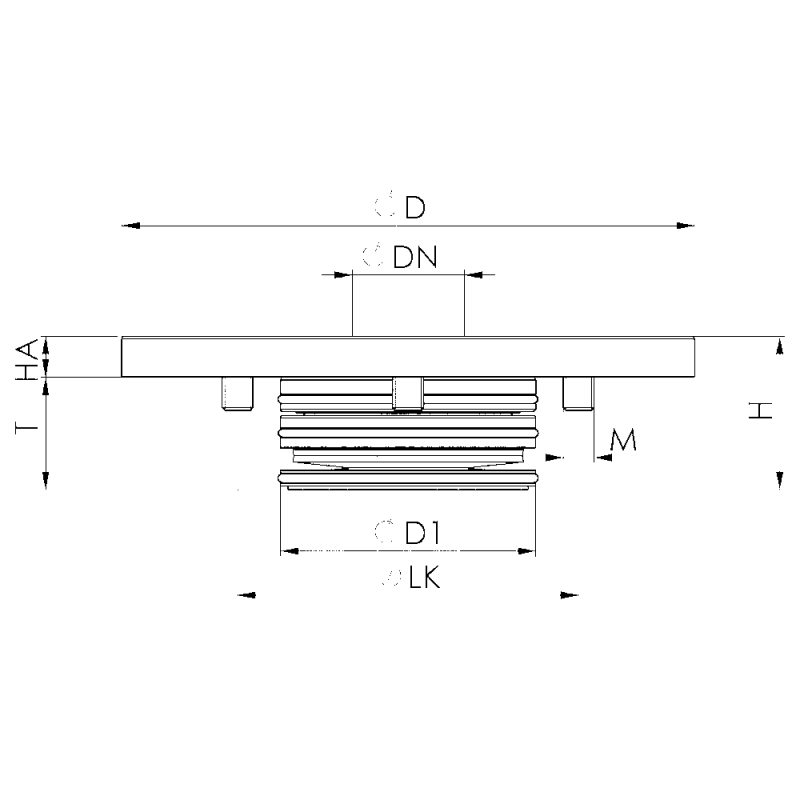

Характеристики

Adapter diameter

50 mm

112 mm

22 mm

Delivery rate min.

Depth

22 mm

Groove width

- mm

8 mm

Height

30 mm

Max. flow rate

Model

Without indexing

Mounting hole diameter

22 mm

Packaging unit

Pitch circle diameter

77 mm

Retaining force

25,000 N

Retraction force/closing force

10 kN kN

Thickness

22 mm

Thickness 2

8 mm

Thread diameter

M6 mm

Thread dimension

Total height

30 mm

Type

K10.2

Weight

0.6 kg
