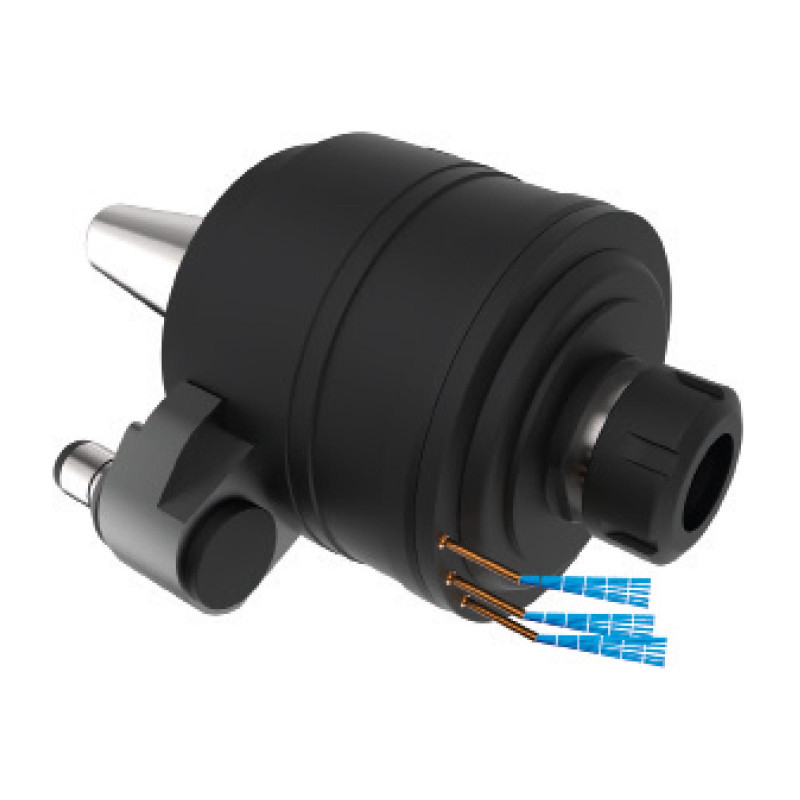

ISO50 External Coolant ER50 Spindle Speed Increaser, 8,000RPM, 1:4 Ratio - GSS34 Series (Gerardi)

Name: ISO50 External Coolant ER50 Spindle Speed Increaser, 8,000RPM, 1:4 Ratio - GSS34 Series (Gerardi)
Brand: Gerardi
SKU: 9.GS.S3400-ISO50
Availability: OutOfStock

Производитель: Gerardi Модель: 14533

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

ISO50 External Coolant ER50 Spindle Speed Increaser, 8,000RPM, 1:4 Ratio - GSS34 Series (Gerardi)

Нет в наличии

0.0 грн.

Category:Toolholding

Coolant Type:External

ER Collet Size:ER50

Ratio:1 to 4

RPM:8,000

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

ISO50 External Coolant ER50 Spindle Speed Increaser, 8,000RPM, 1:4 Ratio - GSS34 Series (Gerardi)

0.0 грн.

Описание

Italian made Gerardi spindle speeders are ideal for increasing spindle speeds on milling machines and machining centres. The modular shanks allow these to be used across different machine tools. The GSS34 series can operate at 8,000RPM and offers external coolant through a retention pin or 70BAR internal coolant through the spindle.

1:4 ratio with max speed of 8,000RPM
ER50 output (max 34mm shank)
Coolant through the retention pin (external) or 70 Bar through spindle (internal)
Supplied with standard stop block
Modular shanks, can be used across multiple milling machines
Two planetary ground gears for high transmission power
Manual or automatic tool change option
The perfect solution for small diameter tools which need to run at high spindle speeds or for machines with very low spindle speeds where higher RPM’s are desirable
Reduces stress on machine spindle for older machine tools
Case hardened and ground shank & shaft to ensure maximum rigidity
Angular contact preloaded ball bearings of precision class ABEC 9
Gleason gears to deliver higher torque
Ensures maximum reliability and accuracy in milling and drilling
Made in Italy by Gerardi
All Gerardi spindle speeders are covered by a 1 year warranty
